About This Item
Description
Amp Mode is the standalone version of the MOSFET boost circuit inside Jackson Audio's PRISM preamp, distilled to a single silent-turning knob that works as a clean buffer at zero, a subtle push into your amp, or a full preamp-style boost.
MOSFET transistors are a popular choice for boosts because they clip in an amp-like way. Amp Mode delivers a loud, harmonically rich boost and can run as an always-on preamp for your whole signal, as a boost in front of an overdrive to push it harder, or after an overdrive to add level and clarity. It also stacks well with other pedals.
Why guitarists choose the Amp Mode
- The same MOSFET boost circuit used in the PRISM, now available as a standalone pedal.
- The boost knob turns silently, with no crackle, unlike many MOSFET boost circuits.
- At minimum boost, it works as a unity-gain buffer that protects your tone from signal loss over long cable runs.
- Mechanical true bypass keeps your unaffected tone completely uncolored when the pedal is off.
- A tiny 1.8" x 4" footprint with top-mounted jacks fits on the most crowded pedalboards.
- Runs on 9-18V; 18V gives more headroom and dynamic response.
Controls
- BOOST — Sets overall boost amount; fully counter-clockwise, the circuit acts as a unity-gain buffer rather than a boost.
- Footswitch — Mechanical true bypass on/off.
Connections & Power

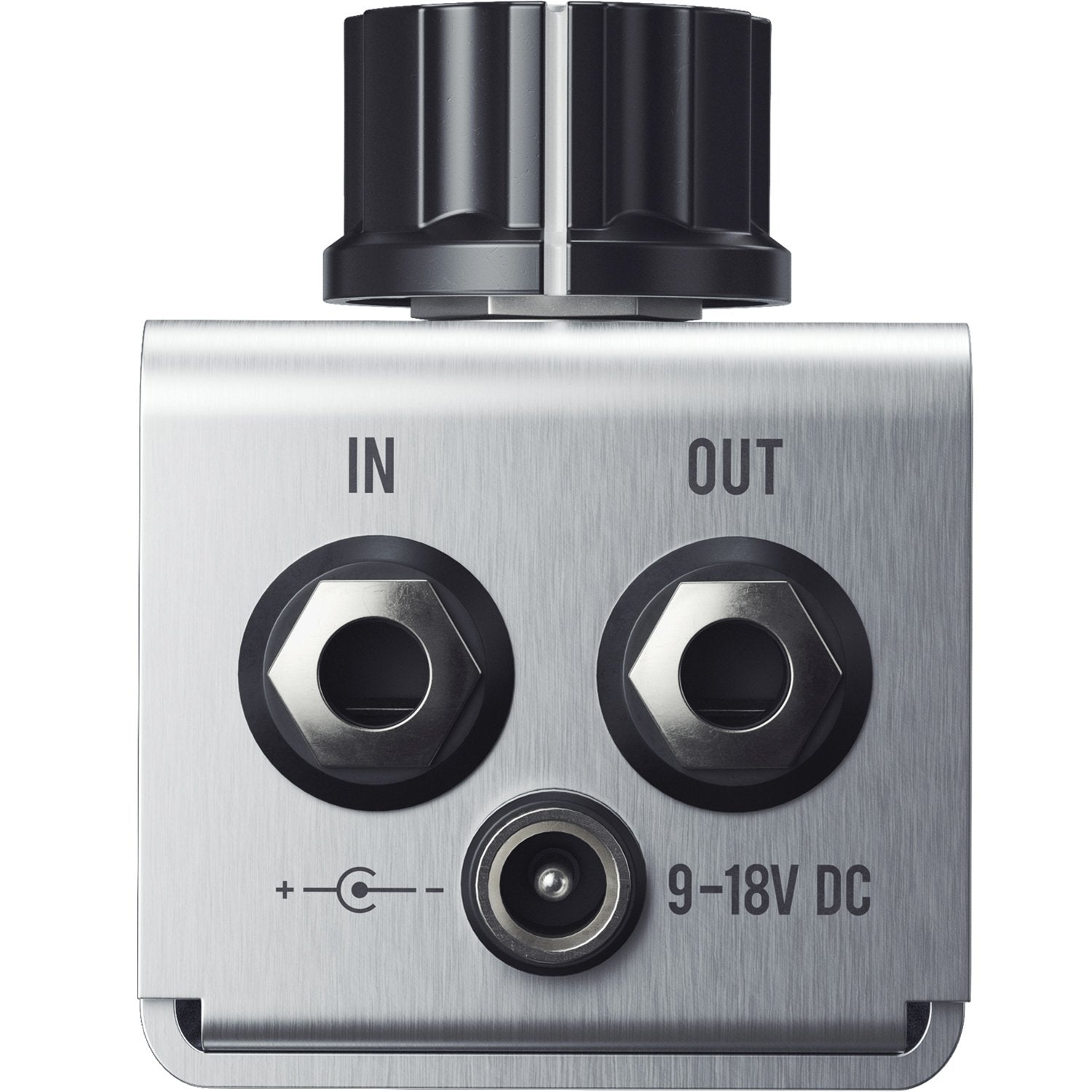

- Top-mounted input and output jacks
- Runs on a 9-18V DC center-negative supply (2.1 mm plug; do not exceed 18V) drawing a maximum of 10 mA
- Power supply not included
| Effect type | MOSFET transistor boost / buffer |
|---|---|
| Controls | BOOST |
| Bypass | Mechanical true bypass |
| Input impedance | 1 MΩ |
| Output impedance | 100 kΩ |
| Power | 9-18V DC center-negative, 2.1 mm; max 18V |
| Current draw | 10 mA max |
| Jacks | Top-mounted |
| Footprint | 1.8 x 4 in (46 x 102 mm) |
| Warranty | 5-year Jackson Audio warranty |
FAQ
What is Amp Mode's relationship to the PRISM? Amp Mode is a standalone version of the MOSFET boost circuit found in Jackson Audio's PRISM preamp.
What happens with the BOOST knob turned all the way down? The circuit acts as a unity-gain buffer, strengthening your guitar signal against loss over long cable runs rather than cutting the level.
Does the boost knob crackle when I turn it? No. Amp Mode's boost knob stays silent while you turn it.
What is the bypass type? A mechanical true bypass switch.
Can Amp Mode run on 18V? Yes, it accepts 9-18V DC center negative; 18V adds headroom and dynamic response. Do not exceed 18V.
Where should it go — before or after my overdrive? Both work: in front of an overdrive it pushes the drive harder, after an overdrive it adds level and clarity, and on its own it can stay on as a preamp for your whole rig.
Does it come with a power supply? No. Use any 9V to 18V DC center-negative pedal supply; it draws only 10 mA.
