About This Item
Description
ModFactor puts a second LFO on top of the first, so a chorus can breathe, a phaser can drift out of step with itself, and a rotary sound can spin up from slow to fast under your foot instead of sitting at one fixed speed.
Which Eventide modulation pedal is this?
ModFactor is the modulation member of the Factor floor range, with ten algorithms and a dedicated SLOW/FAST ramp switch. TriceraChorus is the compact specialist if you specifically want the three-voice tri-chorus and MicroPitch detune sound. Riptide covers Uni-Vibe territory alongside two drive voices. For the ModFactor algorithms plus delay, pitch and reverb in one compact enclosure, look at the H9 Max Dark or the current H9 Harmonizer Gen 2.
Why guitarists choose the ModFactor
- Ten algorithms cover Chorus, Phaser, Q-Wah, Flanger, ModFilter, Rotary, TremoloPan, Vibrato, Undulator and RingMod, which is most of a modulation pedalboard in one enclosure.
- A second LFO modulates the first, so the movement never settles into the obvious back-and-forth sweep that makes cheap modulation sound static.
- The dedicated SLOW/FAST footswitch ramps the LFO rate in real time, which is the control rotary-speaker and Leslie-style parts actually need.
- LFO rates lock to tap tempo and MIDI clock, so tremolo and phaser movement stays in time with the song rather than drifting against it.
- 100 factory presets under metal footswitches make instant program changes practical in a live set.
- True analog bypass with selectable mute and tails means the pedal can sit in an amp loop or at the front of a board without colouring the dry signal.
Controls and switches
- Ten parameter knobs Real-time control over depth, rate, intensity, shape and the algorithm-specific parameters of the selected effect.
- Encoder / algorithm selector Steps through the ten modulation algorithms.
- Left and middle footswitches Bypass and preset selection with instant program change.
- SLOW/FAST performance footswitch Ramps the LFO between slow and fast rates, the classic rotary speed-up gesture.
- Guitar/Line level switch Matches instrument level or line level for an effects loop or studio front end.
Power and pedalboard compatibility
Runs on a 9V DC center-positive supply through a 5.5 mm / 2.5 mm barrel plug and draws up to 500 mA. Center positive is the opposite of most BOSS-style pedalboard outputs, so use the included Eventide adapter or a board output that can be set to center positive and deliver 500 mA. Bypass is selectable between true analog bypass and buffered bypass, and mute and effect-tail behaviour are selectable too, which is what you want when the pedal sits in an amp effects loop.
Technical specifications
| Type | Modulation multi-effects processor |
|---|---|
| Dimensions | 12.2 x 19.0 x 5.4 cm (L x W x H) |
| Algorithms and presets | Ten modulation algorithms; 100 factory presets |

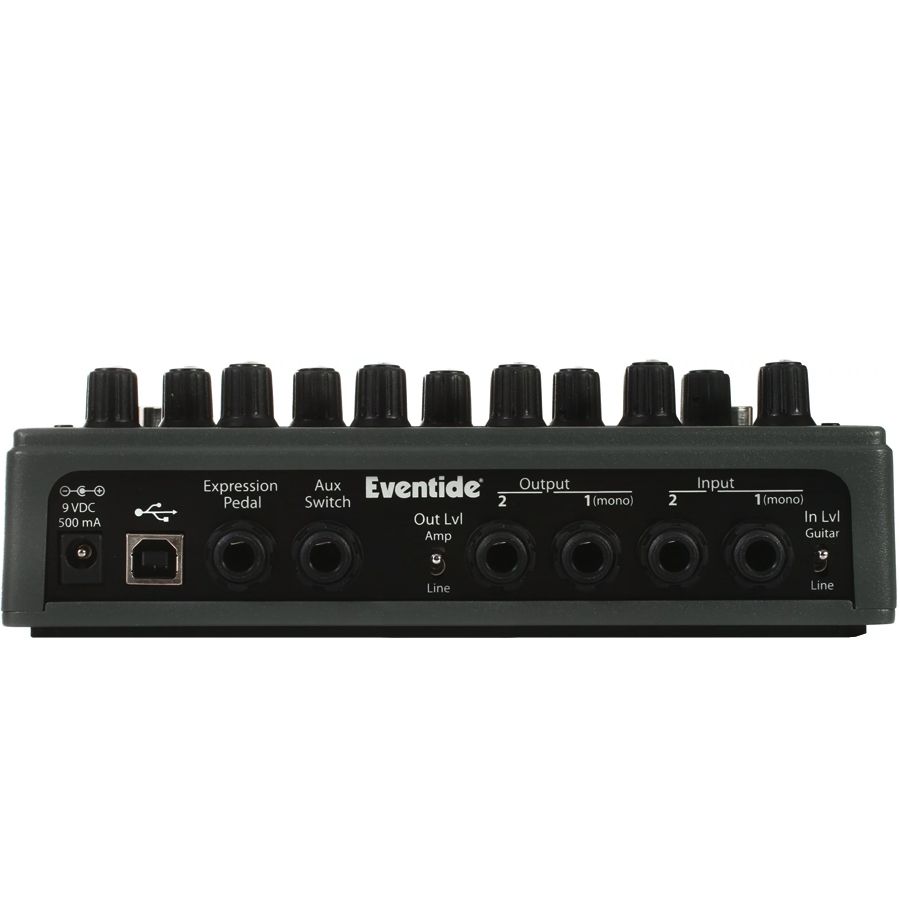

| Audio I/O | Input 1 / Input 2 and Output 1 / Output 2, all 1/4" mono jacks, guitar or line level |
| Control connections | Expression pedal 1/4" jack, aux switch 1/4" jack, USB Type B, 5-pin DIN MIDI In and MIDI Out/Thru |
| Recommended load impedance | 10 kOhm or greater |
| Weight | 1000 g |
| Input impedance | 500 kOhm |
| Output impedance | 470 Ohm |
| Current draw | Up to 500 mA |
| Power | 9V DC center positive, 5.5 mm / 2.5 mm barrel, up to 500 mA |
| Signal path | Digital |
| Bypass | Selectable; relay (true) bypass available |
Reference: the official Eventide ModFactor page and the official manual.
FAQ
What makes ModFactor different from a normal chorus pedal? Two LFOs. One modulates the effect, the second modulates that modulation, so the movement keeps evolving instead of repeating a fixed sweep.
Does the SLOW/FAST switch really ramp, or does it just jump? It ramps. The dedicated performance footswitch glides the LFO rate between the slow and fast settings, which is what rotary-speaker parts need.
Can I sync modulation to my band's tempo? Yes. LFO rates follow the dedicated tap tempo or incoming MIDI clock over the five-pin DIN input or USB.
What power supply does it need? 9V DC center positive, 5.5 mm / 2.5 mm barrel, up to 500 mA. Center positive is unusual for pedalboards, so check your supply before plugging in.
Is it stereo? Yes. Two inputs and two outputs on quarter-inch jacks, switchable between mono and stereo and between guitar and line level.
Is ModFactor still in production? Eventide still lists ModFactor on its own store, though it was flagged out of stock there at the time of writing. Availability at Pedalzoo is shown above.
