About This Item
Description
PitchFactor is where Eventide's Harmonizer history lives on a pedalboard: four-voice diatonic harmony that follows your key, the glitching detune of the original H910 and H949, and Crystals' reversed, pitch-shifted shimmer.
Which Eventide pitch pedal is this?
PitchFactor is the dedicated pitch and Harmonizer member of the Factor floor range, with ten pitch algorithms and delay built in. MicroPitch Delay is the compact pedal if you only want the fine-detune thickening and stereo widening part of that sound. The H9 Max Dark runs PitchFactor algorithms alongside delay, modulation and reverb in a smaller box, and the current H9 Harmonizer Gen 2 adds Eventide's newer polyphonic pitch shifting on top of the same idea.
Why guitarists choose the PitchFactor
- Ten algorithms span Diatonic, PitchFlex, Quadravox, Octaver, HarModulator, Crystals, MicroPitch, HarPeggiator, H910/H949 and Synthonizer, so intelligent harmony and destructive pitch mangling live in the same pedal.
- Diatonic and Quadravox track your key so harmonies stay musical instead of landing on wrong intervals mid-solo.
- H910/H949 reproduces the character of the rack Harmonizers that defined the sound of 1970s and 1980s records.
- Every pitch algorithm has delay available, so harmonies can be offset in time rather than stacked directly on top of the dry note.
- A built-in tuner and 100 presets under metal footswitches make it practical as the one utility pedal on a live board.
- Expression pedal control over any parameter combination turns PitchFlex into a playable whammy rather than a fixed setting.

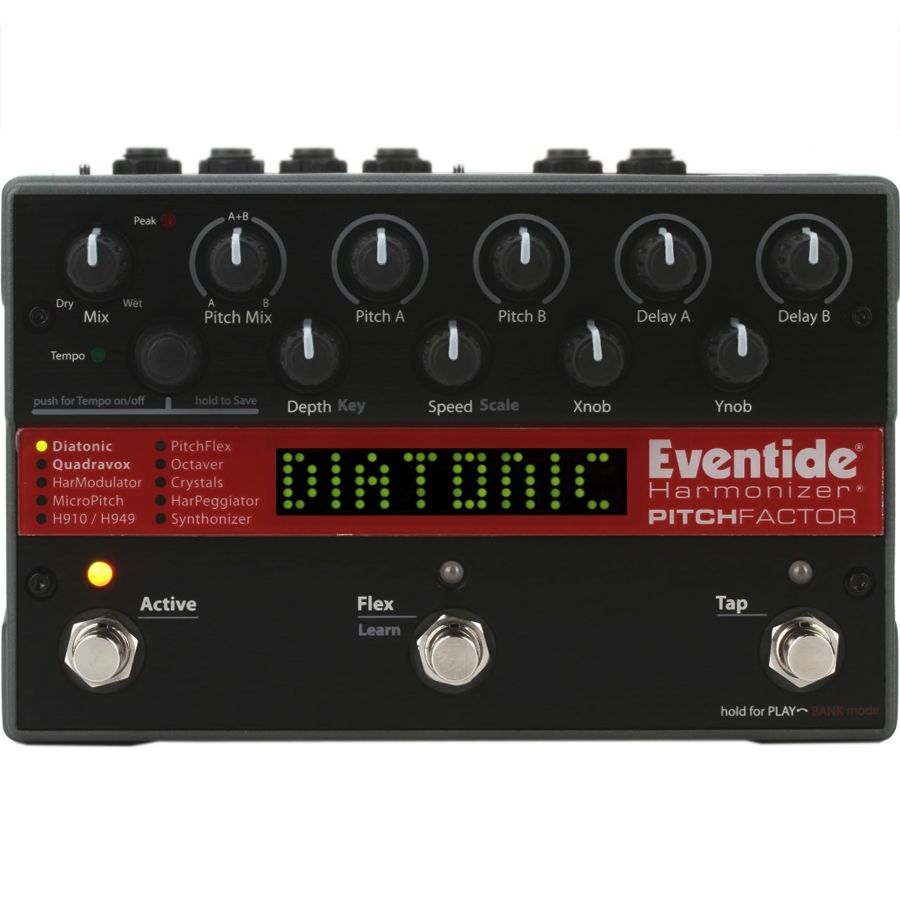

Controls and switches
- Ten parameter knobs Real-time control over pitch intervals, key and scale, delay times, feedback and mix for both pitch voices.
- Encoder / algorithm selector Steps through the ten pitch and Harmonizer algorithms.
- Left and middle footswitches Bypass and preset selection with instant program change.
- Right performance footswitch Triggers the algorithm's performance function, for example flexing pitch or freezing a harmony.
- Built-in tuner Mutes and tunes without adding another pedal to the chain.
Power and pedalboard compatibility
Runs on a 9V DC center-positive supply through a 5.5 mm / 2.5 mm barrel plug and draws up to 500 mA. Center positive is the opposite of most BOSS-style pedalboard outputs, so use the included Eventide adapter or a board output that can be set to center positive and deliver 500 mA. Bypass is selectable between true analog bypass and buffered bypass, and mute and effect-tail behaviour are selectable too, which is what you want when the pedal sits in an amp effects loop.
Technical specifications
| Type | Harmonizer pitch shifter and delay processor |
|---|---|
| Dimensions | 12.2 x 19.0 x 5.4 cm (L x W x H) |
| Algorithms and presets | Ten pitch and Harmonizer algorithms; 100 factory presets |
| Tuner | Built in |

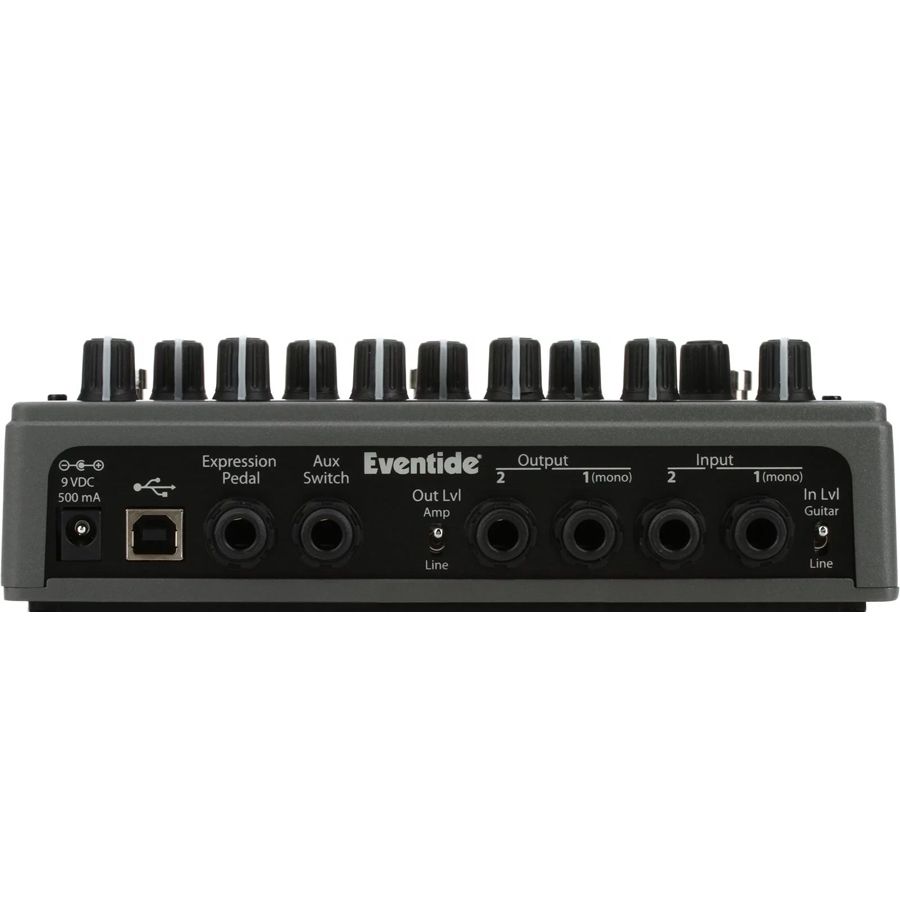

| Audio I/O | Input 1 / Input 2 and Output 1 / Output 2, all 1/4" mono jacks, guitar or line level |
| Control connections | Expression pedal 1/4" jack, aux switch 1/4" jack, USB Type B, 5-pin DIN MIDI In and MIDI Out/Thru |
| Recommended load impedance | 10 kOhm or greater |
| Weight | 1000 g |
| Input impedance | 500 kOhm |
| Output impedance | 470 Ohm |
| Current draw | Up to 500 mA |
| Power | 9V DC center positive, 5.5 mm / 2.5 mm barrel, up to 500 mA |
| Signal path | Digital |
| Bypass | Selectable; relay (true) bypass available |
Reference: the official Eventide PitchFactor page and the official manual.
FAQ
Does PitchFactor follow the key I am playing in? Yes, in the intelligent algorithms. Diatonic and Quadravox are set to a key and scale and generate harmonies that stay inside it.
Is the H910/H949 algorithm the real thing? It is Eventide's own recreation of their H910 and H949 rack Harmonizers, from the company that built the originals.
Can I use an expression pedal as a whammy? Yes. Any combination of parameters can be mapped to the expression input, which is how PitchFlex becomes a foot-controlled pitch bend.
Does it have a tuner? Yes, a tuner is built in, so a separate tuner pedal is optional rather than necessary.
What power does it need? 9V DC center positive at up to 500 mA on a 5.5 mm / 2.5 mm barrel plug. Confirm polarity before connecting a third-party supply.
How much latency does the pitch shifting add? Eventide does not publish a latency figure for PitchFactor, so we do not quote one. The pitch engine is the same family used in their rack Harmonizers.
