About This Item
Description
Rose keeps the dry signal analog and then bends the delay line itself, sweeping from half to double the set delay time so the repeats slide up to an octave up or down like a tape machine being pushed by hand.

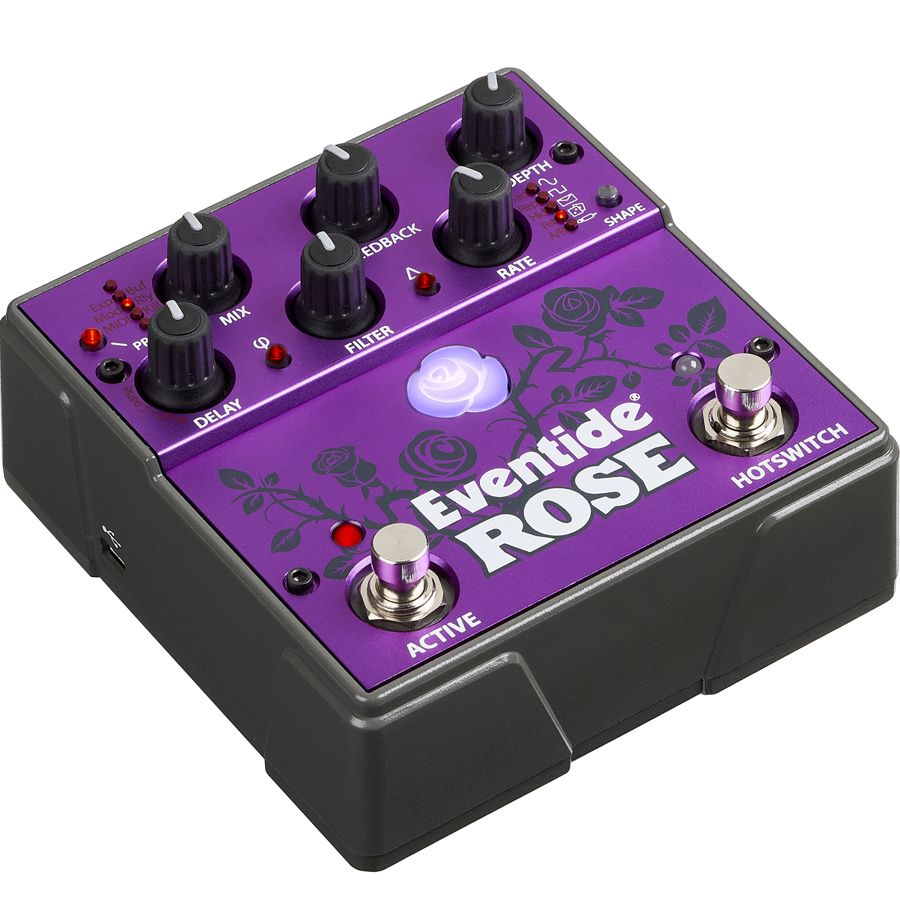

Rose is Eventide's "bit-bucket brigade" delay: an analog dry path with analog Mix, low-pass Filter and Feedback wrapped around a digital delay line that can be modulated, reversed and stretched from 10 microseconds out to 50 seconds. TimeFactor is the bigger twin-engine delay with nine delay algorithms, a looper and 5-pin MIDI; Rose is the one you choose when you want pitch instability and hands-on modulation rather than menus.
Why guitarists choose the Rose
- The dry path stays analog while the delay line is digital, so you keep the analog Mix, Filter and Feedback character without giving up long, clean delay times.
- Modulation sweeps the delay time from 0.5x to 2x, pitching the repeats across roughly an octave in either direction rather than adding polite vibrato.
- 5 modulation sources, Sine, Square, Random, Envelope and External (CV), mean the movement can follow an LFO, your picking dynamics or a modular rig.
- Delay Multiply at 2x, 3x, 4x or 5x extends the 10-second base delay to 50 seconds, long enough to use the pedal as a sound-design bed rather than an echo.
- Reverse plays the delay line backwards, and Invert flips the phase of the repeats for flanger-like tones at short delay times.
- The assignable Hotswitch can be set to Tap Tempo, Infinite Repeat, A/B switching, LFO Hold or LFO Reset.
Controls

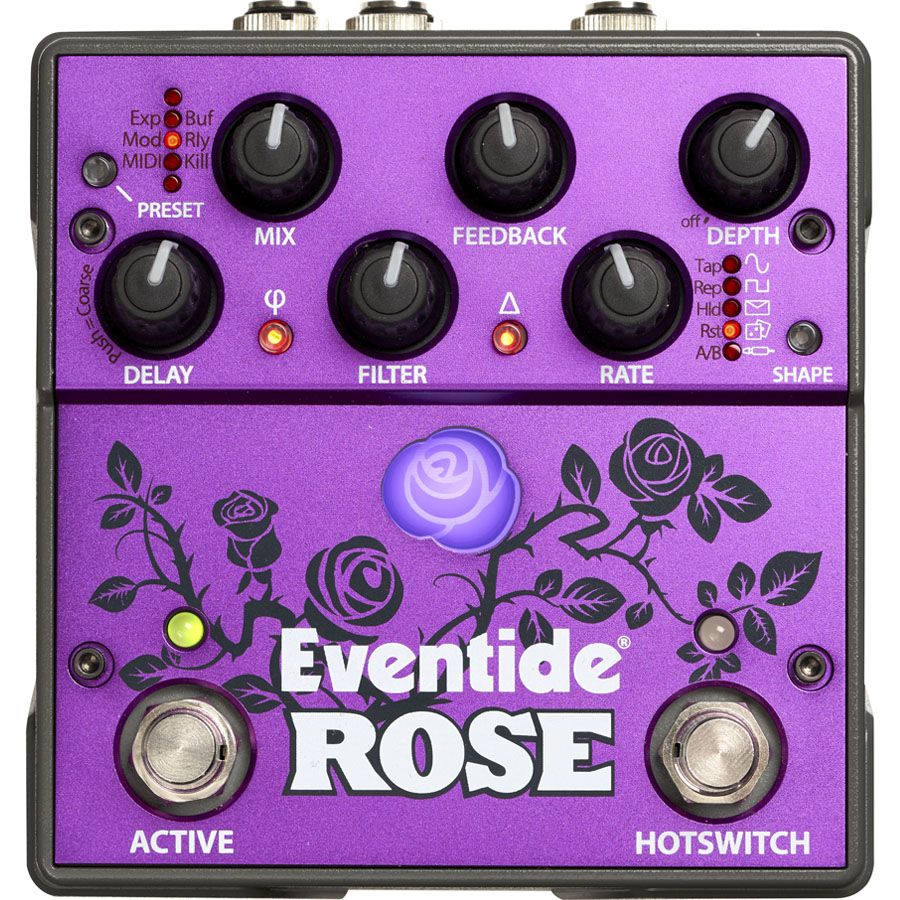

- 6 knobs: Mix, Feedback, Depth, Delay, Filter and Rate.
- Buttons for Delay Multiply, Reverse/Invert and modulation Shape (source).
- Tap divisions: quarter, eighth, dotted eighth and triplet.
- Active footswitch and assignable Hotswitch.
- Input Level Select: Line or Instrument, for guitar, synths, effects loops and interfaces.
Connections & Power

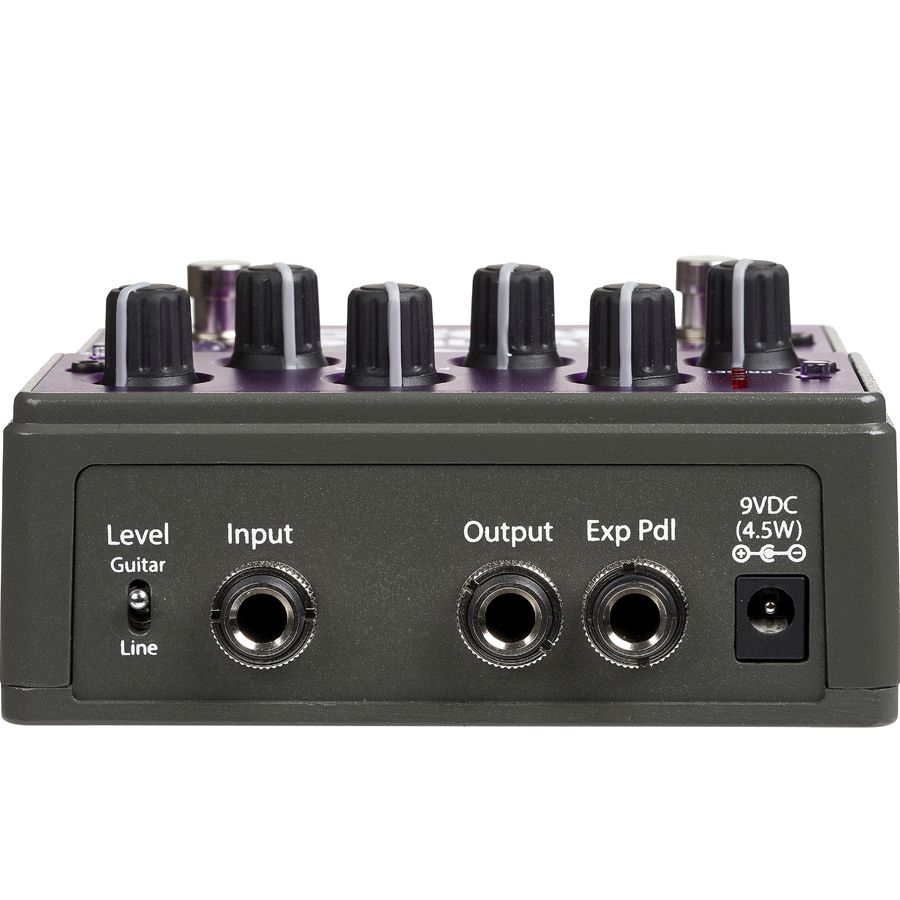

- Mono 1/4" input and output.
- One 1/4" jack shared by an expression pedal, an aux switch, external CV or MIDI.
- Mini USB for the Eventide Device Manager software: presets, settings, MIDI and updates.
- Software V3 adds MIDI Tap Tempo and Clock Receive, a Kill-Dry mode and an Envelope Off mode.
- Power: 9V DC center-negative (BOSS standard), 200 mA, 5.5 mm / 2.1 mm barrel, so a normal isolated pedalboard output is enough. Power supply not included.
- Bypass: Relay, Buffered or Input Kill.
| Type | Modulated delay, analog dry path with digital delay line |
|---|---|
| Delay range | 10 µs to 10 s; up to 50 s with Delay Multiply |
| Modulation | Sine, Square, Random, Envelope, External (CV); sweep 0.5x to 2x delay time |
| Presets | 25 (5 banks of 5) |
| Audio I/O | Input and Output, 1/4" mono |
| Control jack | 1/4" for expression, aux switch, CV or MIDI |
| USB | Mini USB |
| Input impedance | 600 kOhm |
| Recommended load | 10 kOhm or greater |
| Bypass | Relay, Buffered, Input Kill |
| Power | 9V DC center-negative, 200 mA, 5.5 mm / 2.1 mm barrel |
| Dimensions (W x D x H) | 5.5 x 8 x 2.5 in (140 x 203 x 64 mm) |
| Weight | 2.5 lb (1.1 kg) |
| Warranty | One year |
FAQ
Is Rose a true analog delay? It is a hybrid. The dry path with Mix, Filter and Feedback is analog, while the delay line itself is digital, which is how it reaches 50 seconds and reverse playback.
How long can the delay get? The base delay runs from 10 microseconds to 10 seconds, and Delay Multiply at 2x, 3x, 4x or 5x extends that to 50 seconds.
Can I modulate it from a modular system? Yes. External CV is one of the five modulation sources, alongside Sine, Square, Random and Envelope.
Does Rose take MIDI? Yes. MIDI runs over the shared 1/4" control jack, and software V3 adds MIDI Tap Tempo and Clock Receive. Mini USB connects it to Eventide Device Manager for presets, settings and updates.
What power does it need, and is a supply included? 9V DC center-negative (BOSS standard), 200 mA, on a 5.5 mm / 2.1 mm barrel, so a normal isolated pedalboard output is enough. A power supply is not included.
What can the Hotswitch be set to? Tap Tempo, Infinite Repeat, A/B switching, LFO Hold or LFO Reset.
