About This Item
Description
Space carries twelve reverb engines from Eventide's rack processors down to the floor, so the same pedal gives you a believable spring, a studio plate, and the gravity-bending Blackhole algorithm that no room ever produced.
Space is the multi-algorithm reverb of Eventide's Factor floor range: twelve reverb and reverb-combination effects, 100 presets, a programmable HotSwitch and full 5-pin MIDI. Blackhole is the compact pedal dedicated to the single Blackhole algorithm, which Space also includes as one of its twelve.
Why guitarists choose the Space
- 12 algorithms: Room, Plate, Hall, Spring, Reverse, Shimmer, DualVerb, ModEchoVerb, Blackhole, MangledVerb, TremoloVerb and DynaVerb, so conventional and experimental reverb live in one box.
- Blackhole with Gravity and Anti-Gravity is built in, which means huge inverted swells without adding a second reverb pedal.
- Shimmer adds pitch shifting to the tail, TremoloVerb pairs reverb with tremolo, and DynaVerb reacts to your playing dynamics.
- The HotSwitch stores a second set of knob values in a preset and jumps between the two instantly, which is how you get a verse-to-chorus ambience change without menu diving.
- The algorithms come from Eventide's H8000 and Eclipse rack processors, so the tails hold up in a studio context as well as on stage.
- 100 presets, unlimited via MIDI, plus selectable tails make it usable both at the front of a board and in an amp effects loop.

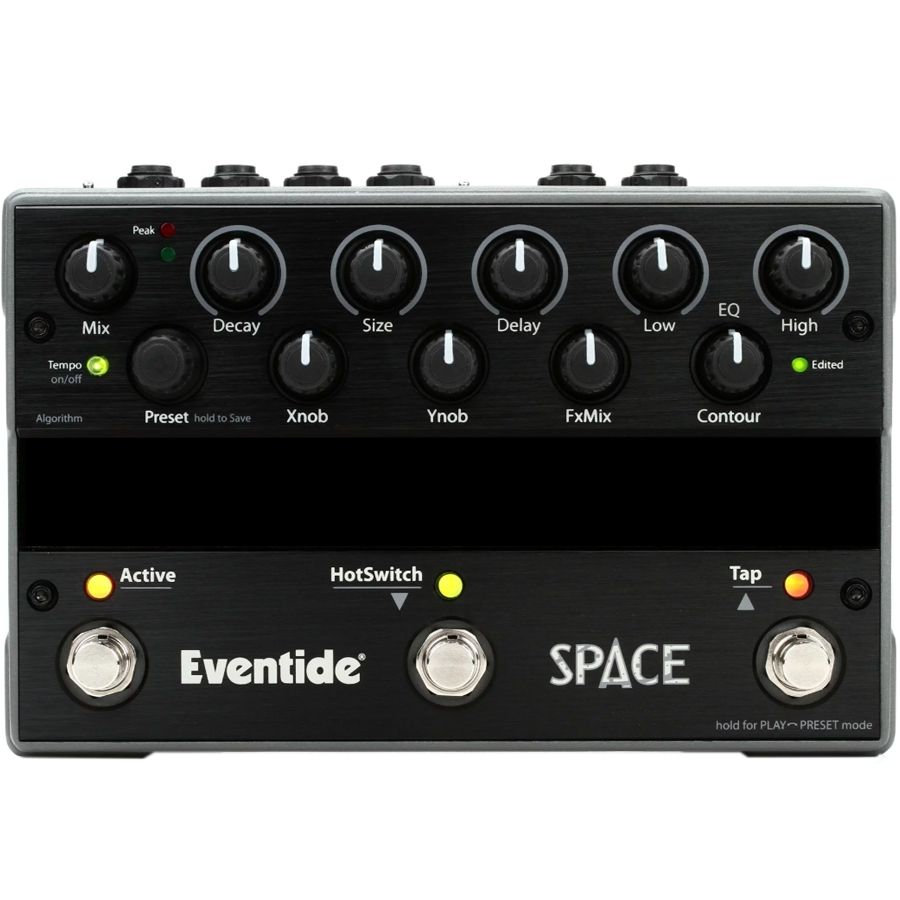

Controls
- 10 real-time knobs for decay, size, mix, damping and each algorithm's own parameters; all controllable by MIDI or an expression pedal.
- Encoder for selecting algorithms and presets.
- Three metal footswitches: bypass on the left; in Preset mode the other two select presets, in Play mode they become the HotSwitch and Tap Tempo.
- Aux Switch jack for up to three extra footswitches.
- Guitar/Line input and Amp/Line output level switching.

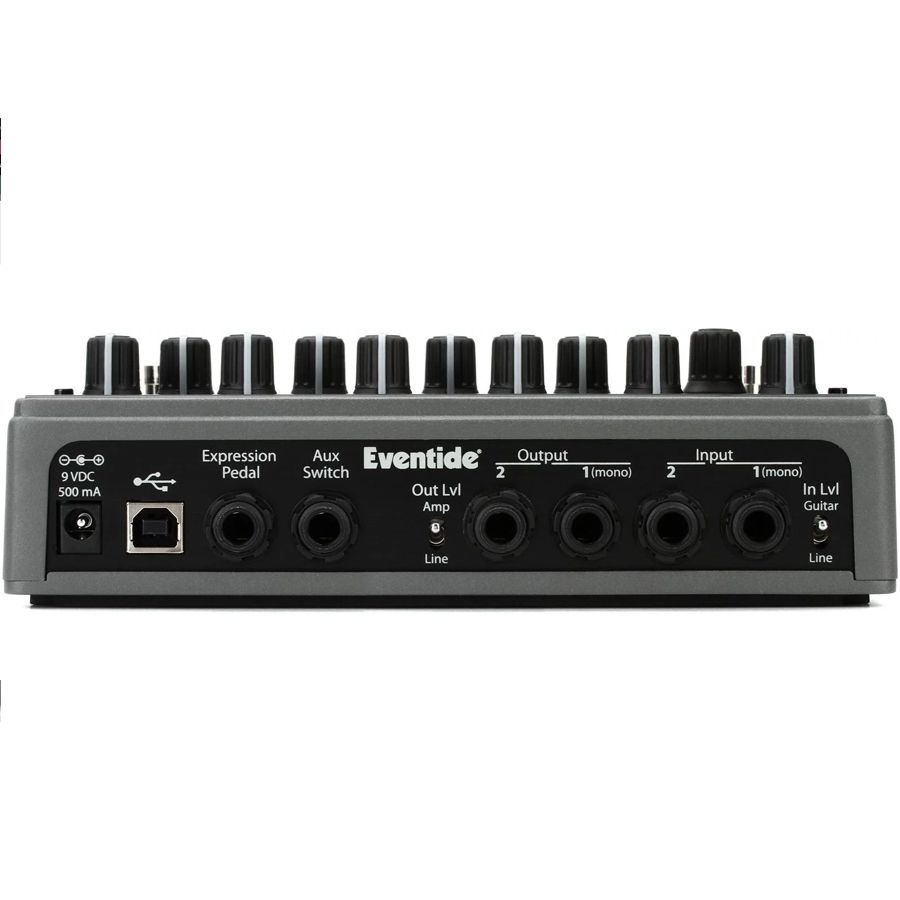

Connections & Power
- Two 1/4" inputs and two 1/4" outputs for mono, mono-in/stereo-out or full stereo operation, at guitar or line level.
- Expression pedal jack and Aux Switch jack for an external footswitch.
- 5-pin DIN MIDI In and MIDI Out/Thru, plus USB Type B for MIDI and software updates.
- Power: 9V DC center-positive, 500 mA, 5.5 mm / 2.5 mm barrel. Center positive is the opposite of most BOSS-style pedalboard outputs, so use the included Eventide supply or an output that can be set to center positive and deliver 500 mA. No battery operation.
- Bypass: true analog (relay) bypass, or DSP bypass that lets effect tails ring out, which suits an amp effects loop.
In the Box
- Eventide Space pedal
- US power supply
| Type | Stereo digital reverb pedal |
|---|---|
| Algorithms | 12 reverb and reverb-combination effects |
| Presets | 100, unlimited via MIDI |
| HotSwitch | Programmable |
| Tempo | Tap tempo, MIDI clock sync/generate |
| Audio inputs | Input 1 (mono) and Input 2, 1/4" jacks, guitar or line level |
| Audio outputs | Output 1 (mono) and Output 2, 1/4" jacks, guitar or line level |
| Control connections | Expression pedal 1/4" jack, Aux Switch 1/4" jack, USB Type B (USB 2.0), 5-pin DIN MIDI In and MIDI Out/Thru |
| Input impedance | 500 kOhm |
| Output impedance | 470 Ohm |
| Recommended load | 10 kOhm or greater |
| Bypass | True analog (relay) bypass; DSP bypass with effect tails selectable |
| Power | 9V DC center-positive, 500 mA, 5.5 mm / 2.5 mm barrel; US power supply included |
| Battery | No |
| Dimensions (W x D x H) | 7.5 x 4.8 x 2.12 in (190 x 122 x 54 mm) |
| Weight | 2.15 lb (1 kg) |
| Construction | Cast metal enclosure, metal footswitches |
FAQ
Does Space include the Blackhole reverb? Yes. Blackhole, with Gravity and Anti-Gravity, is one of the twelve algorithms in Space. The compact Blackhole pedal is dedicated to that single algorithm.
What does the HotSwitch actually do? It stores a second set of knob values in a preset and jumps between the two instantly, so you can switch between two ambience settings hands-free. In Play mode the middle footswitch works as the HotSwitch.
Can Space go in my amp's effects loop? Yes. Set the Guitar/Line input and Amp/Line output switches to line level, and use DSP bypass so the reverb tails decay naturally when you switch the effect out.
Is there a spring reverb algorithm? Yes, Spring is one of the twelve, alongside Room, Plate, Hall, Reverse, Shimmer and others.
What supply does it need? 9V DC center-positive, 500 mA, on a 5.5 mm / 2.5 mm barrel. Center positive is the opposite of most pedalboard defaults; a US power supply is included. There is no battery operation.
Is it stereo? Yes. Two inputs and two outputs on 1/4" jacks run mono, mono-in/stereo-out or full stereo.
