About This Item
Description
TimeFactor runs two independent delay lines at once, so a warm tape echo can sit under a tight digital slapback, ping-pong across a stereo rig or turn into a reversed swell, all from one preset and one tap of the tempo switch.
Which Eventide delay is this?
TimeFactor is the dedicated delay member of Eventide's Factor floor range: ten delay algorithms, twin delay engines, a looper and 100 presets, with real 5-pin MIDI and true analog bypass. Rose is the smaller, single-purpose modulated bucket-brigade delay if you want one voice and six knobs instead of a library. UltraTap handles rhythmic multi-tap delays and pad swells rather than classic echo. If you want the TimeFactor algorithms plus modulation, pitch and reverb in a compact box, that is the H9 Max Dark, and the current H9 Harmonizer Gen 2 carries the same lineage forward.
Why guitarists choose the TimeFactor
- Ten delay algorithms cover Digital, Vintage, Tape Echo, Mod, Ducked, Band, Filter Pong, MultiTap and Reverse, so you rarely need a second delay on the board.
- Two delay engines run at once, which is what lets one preset hold a dotted-eighth rhythm against a long ambient repeat instead of forcing a compromise.
- The built-in Looper turns the same pedal into a practice and songwriting tool without adding another enclosure to the board.
- 100 factory presets and three metal footswitches mean instant program changes on stage, and instrument or line level operation covers both amp and studio use.
- Real 5-pin DIN MIDI In and Out/Thru plus MIDI clock keeps the delays locked to a backing track or a drummer's click.
- True analog bypass with selectable tails lets you choose between a clean removal from the chain and repeats that decay naturally when you switch off.

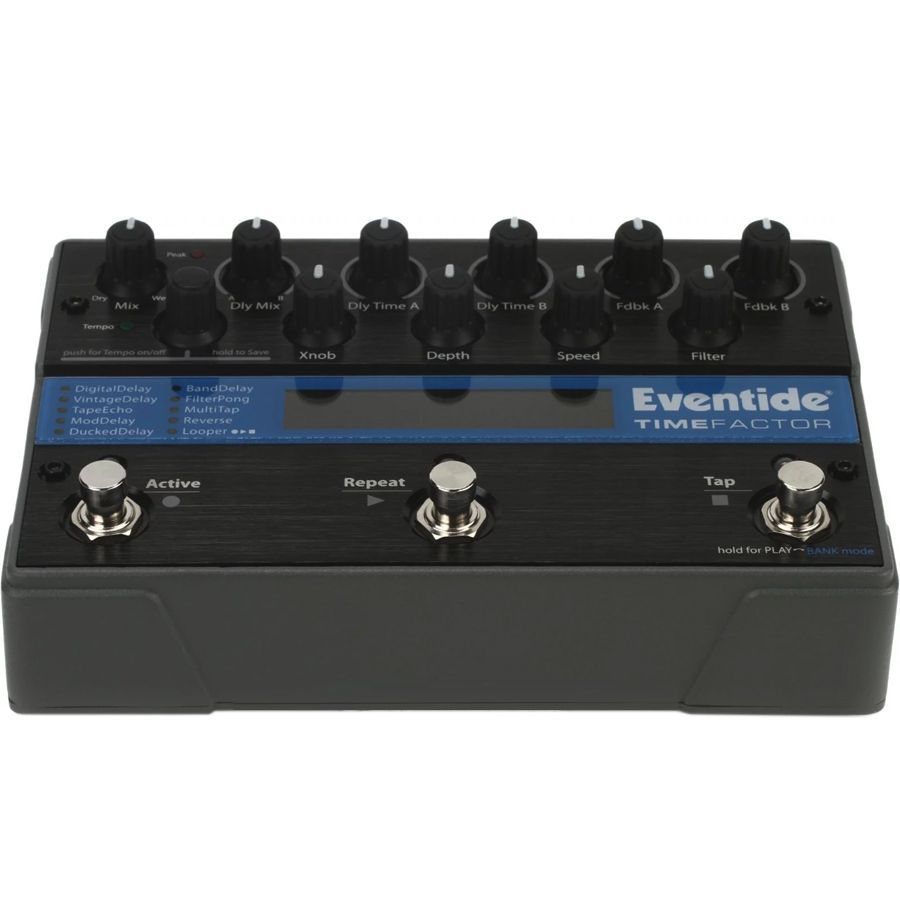

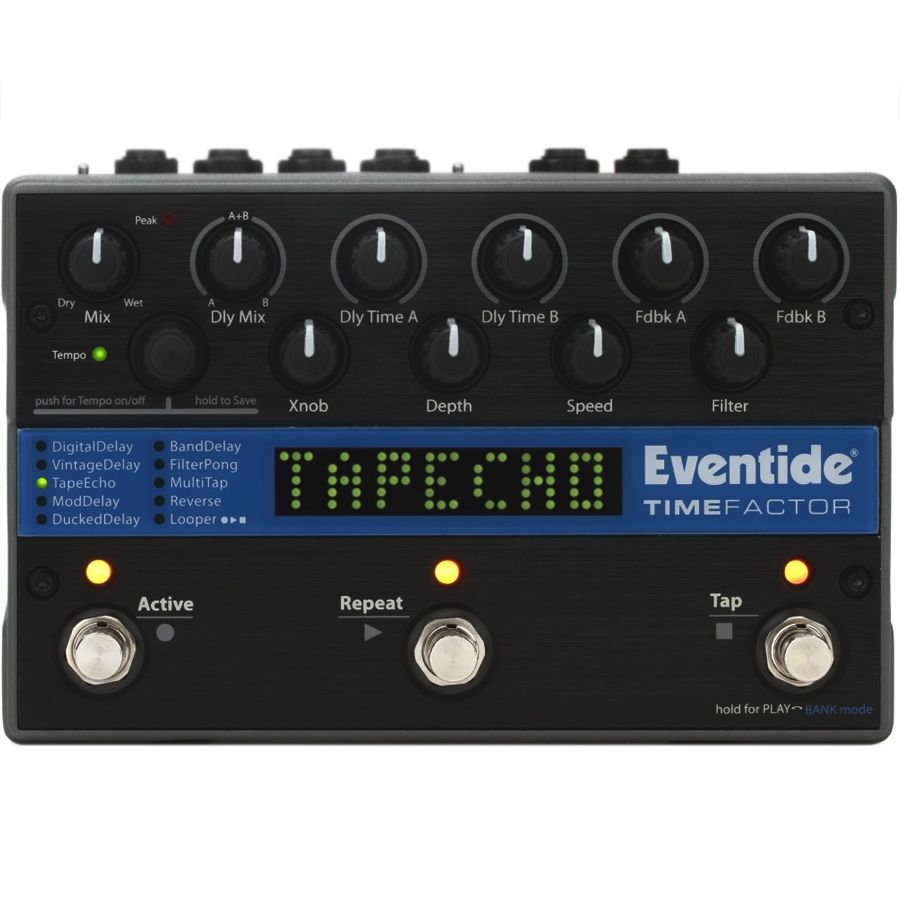

Controls and switches
- Ten parameter knobs Real-time control over mix, delay time, feedback, filtering and algorithm-specific parameters for both delay engines.
- Encoder / algorithm selector Steps through the ten delay algorithms and the Looper.
- Left and middle footswitches Bypass and preset selection, with instant program change between banks.
- Tap / performance footswitch Taps in tempo and doubles as the dedicated performance switch for the loaded preset.
- Guitar/Line level switch Matches instrument level or line level for an effects loop or studio front end.
Power and pedalboard compatibility
Runs on a 9V DC center-positive supply through a 5.5 mm / 2.5 mm barrel plug and draws up to 500 mA. Center positive is the opposite of most BOSS-style pedalboard outputs, so use the included Eventide adapter or a board output that can be set to center positive and deliver 500 mA. Bypass is selectable between true analog bypass and buffered bypass, and mute and effect-tail behaviour are selectable too, which is what you want when the pedal sits in an amp effects loop.
Technical specifications
| Type | Twin delay multi-effects processor with looper |
|---|---|
| Dimensions | 12.2 x 19.0 x 5.4 cm (L x W x H) |
| Algorithms and presets | Ten delay algorithms plus Looper; 100 factory presets |
| Audio I/O | Input 1 / Input 2 and Output 1 / Output 2, all 1/4" mono jacks, guitar or line level |
| Control connections | Expression pedal 1/4" jack, aux switch 1/4" jack, USB Type B, 5-pin DIN MIDI In and MIDI Out/Thru |
| Recommended load impedance | 10 kOhm or greater |
| Weight | 1000 g |
| Input impedance | 500 kOhm |
| Output impedance | 470 Ohm |
| Current draw | Up to 500 mA |
| Power | 9V DC center positive, 5.5 mm / 2.5 mm barrel, up to 500 mA |
| Signal path | Digital |
| Bypass | Selectable; relay (true) bypass available |
Reference: the official Eventide TimeFactor page and the official manual.
FAQ
Is TimeFactor center positive or center negative? Center positive, on a 5.5 mm / 2.5 mm barrel plug at 9V DC and up to 500 mA. That is the opposite of most BOSS-style outputs, so use the supplied adapter or a board output you can flip to center positive.
Can it run two different delays at the same time? Yes. TimeFactor is a twin delay: two delay engines run simultaneously, which is how you get independent left and right times, ping-pong and dual-rhythm patches.
Does the looper record over MIDI clock? TimeFactor syncs and generates MIDI clock and has a dedicated tap tempo, so delay times follow the tempo source you choose.
Does it have 5-pin MIDI? Yes, MIDI In and MIDI Out/Thru on five-pin DIN sockets, plus MIDI over USB Type B. USB also handles software updates.
Will my repeats cut off when I bypass it? Only if you want them to. Bypass is selectable between true analog bypass and buffered bypass, and tails behaviour is selectable separately.
Is it too big for a small board? It is a full-size floor unit at 19.0 cm wide, 12.2 cm deep and 5.4 cm tall, weighing 1 kg. If that is too much real estate, look at the compact single-engine alternatives in the range.
