About This Item
Description
TriceraChorus splits your signal into three chorus voices, left, centre and right, and sweeps them with a three-phase LFO, so a single-coil arpeggio spreads across a stereo rig the way an early-eighties studio rack used to make it.
Which Eventide modulation pedal is this?
TriceraChorus is the dedicated chorus in the .9 series: three chorus voices, a three-phase LFO, MicroPitch detuning and a Swirl footswitch that pushes into flanging, phasing and Uni-Vibe territory. If you want chorus, phaser, flanger, tremolo, rotary and more in one floor unit with 100 presets, that is the ModFactor. If you want the detuning without the chorus voices, the MicroPitch is the smaller specialist. Riptide pairs a Uni-Vibe with drive rather than a chorus.
Why guitarists choose the TriceraChorus
- Three chorus voices modulated by a three-phase LFO give a genuinely wide stereo image rather than a single voice panned twice.
- Chorus and detune sections are independent, so you can add MicroPitch style thickening underneath the chorus or use the detune alone for a subtle double-track.
- The Swirl footswitch adds flanging, phasing and Uni-Vibe style movement on demand, which turns one pedal into several modulation flavours.
- Dedicated Depth, Delay, Rate and Tone controls per section mean the sound is dialled by hand instead of hunted for in menus.
- Five onboard presets sit at your feet and more load over MIDI, so a clean shimmer and a heavy vibrato can live in the same set.
- Stereo in and out with a Guitar/Line switch keeps it useful in front of an amp, in a stereo rig, on keys or on a studio bus.
Controls and switches
- CHORUS section Depth, Delay, Rate and Tone for the three chorus voices, with the three-phase LFO doing the stereo work.
- DETUNE section MicroPitch style detuning with its own depth and mix, usable with or without the chorus voices.
- MIX Sets how much modulated signal sits against the dry guitar.
- Swirl footswitch Engages the extra flange, phase and Uni-Vibe style movement.
- Active footswitch Engages the effect; dual-action, so it works latching or momentary.
- Guitar/Line switch Rear-panel level matching for guitar, synth, an effects loop or an audio interface.
- Mono/Stereo switch Tells the TRS input whether to read a mono tip signal or a true stereo tip-and-ring pair.
Power and pedalboard compatibility
Runs on a 9V DC center-negative supply through a 5.5 mm / 2.1 mm barrel plug and draws up to 300 mA, so it needs an isolated 300 mA (or higher) output rather than a shared daisy chain. Eventide includes a universal power supply with US, EU, UK, JP and AU adapters. Power comes from the DC jack only; Eventide does not publish battery operation for this pedal. Bypass is selectable between Buffered, Relay, DSP+FX and Kill dry, so you can run relay (true) bypass at the front of a board or keep the buffer and effect tails alive inside an amp loop. A rear Guitar/Line level switch matches the pedal to a guitar, a synth, an effects loop or an audio interface, and a Mono/Stereo switch sets how the TRS input is read.
Technical specifications
| Type | Stereo tri-chorus with detuning |
|---|---|
| Dimensions | 10.8 x 10.2 x 4.3 cm (L x W x H) |
| Algorithms and presets | Three chorus voices plus detune; five onboard presets, more over MIDI |

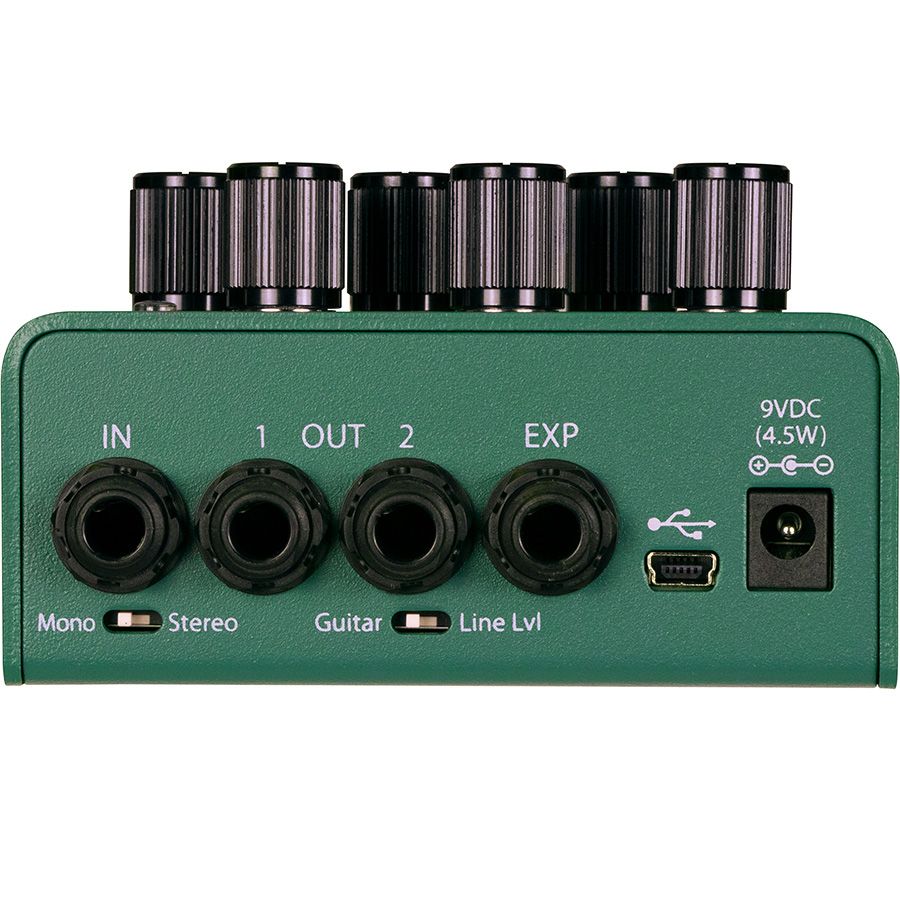

| Audio I/O | Input: 1/4" TRS (mono on tip, stereo on tip and ring). Out 1 and Out 2: 1/4" TS. |
| Control connections | EXP: 1/4" TRS for an expression pedal, an aux switch or MIDI I/O. Mini USB for software updates and MIDI. No 5-pin DIN MIDI and no Bluetooth on this model. |
| Maximum input level | +8 dBu (Guitar) / +14 dBu (Line) |
| Recommended load impedance | 10 kOhm |
| Weight | 480 g |
| Input impedance | 700 kOhm |
| Output impedance | 220 Ohm |
| Current draw | Up to 300 mA |
| Power | 9V DC center negative, 5.5 mm / 2.1 mm barrel, up to 300 mA; supply included |
| Signal path | Digital |
| Bypass | Selectable; relay (true) bypass available |
| Warranty | One year |
Reference: the official Eventide TriceraChorus page and the official manual.
FAQ
What is a tri-chorus? Instead of one modulated voice, three chorus voices are placed left, centre and right and modulated by a three-phase LFO. Eventide's inspiration was the classic Tri-Stereo Chorus, and the result is a much wider stereo image.
Can I use the detune on its own? Yes. The detune section is independent of the chorus voices, so you can run MicroPitch style thickening with the chorus depth at zero.
Does TriceraChorus have tap tempo? Yes, but not from its own footswitches. Connect an aux switch to the EXP jack and assign it to Tap Tempo, or use a triple aux switch for preset up, down and load.
What does the Swirl footswitch do? It brings in additional movement that takes the pedal into flanging, phasing and Uni-Vibe style territory on top of the chorus voices.
Will a daisy chain power it? Not reliably. It draws up to 300 mA at 9V center negative, so give it an isolated output rated 300 mA or more.
Is it analog? It is a digital DSP effect with an analog input and output stage, voiced after bucket-brigade chorus hardware. Relay (true) bypass is one of four selectable bypass modes.
