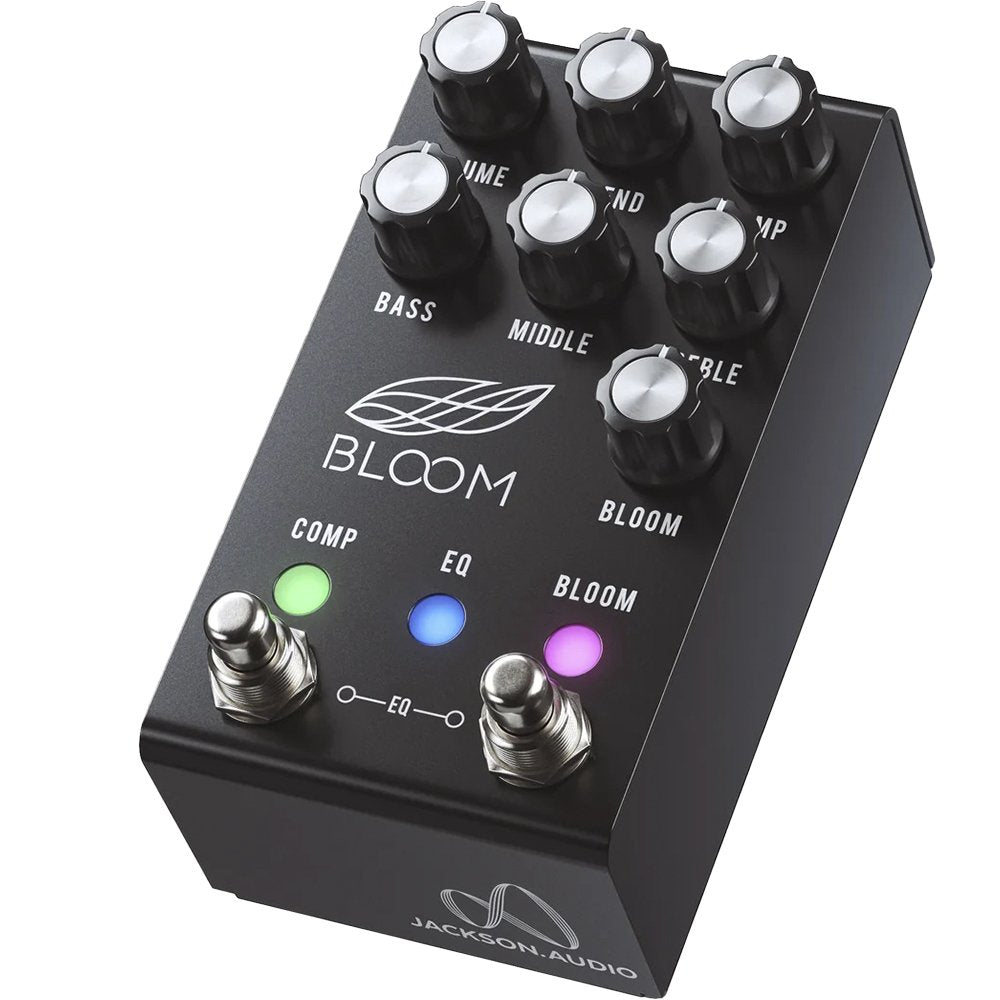

Bloom V2 in black is Jackson Audio's complete dynamics engine: six switchable optical compression modes, an active 3-band EQ, and a programmable BLOOM boost/sustainer, all recallable over MIDI.
The compressor is an optical limiter with a flat frequency response, so it changes dynamics rather than tone. The compressor, EQ and BLOOM circuits can be switched on separately or together, so the EQ and boost are also usable on their own. Bloom V2 shares its core optical compression circuit with the smaller, simpler Blossom, which uses only Bloom's Country-mode voicing with no MIDI, EQ presets, or boost section.
Why guitarists choose the Bloom V2 MIDI
- Six instant-access optical compression modes span an ultra-fast 2.5ms Limiter to a slow 120ms Ballad mode, plus a dual-compressor Slide/Joey mode for extended sustain.
- An active 3-band Baxandall-style EQ (+/-12dB per band) reshapes tone independently of compression, activated with a two-footswitch gesture.
- The onboard BLOOM boost/sustainer adds 0-20dB of boost; press and hold the footswitch and the level swells in over a programmable 1-5 seconds.
- Full MIDI control recalls compression mode, the on/off state of the COMP, EQ and BLOOM circuits, and boost level from a pedalboard controller.
- Bypass is programmable between true bypass and buffered bypass.

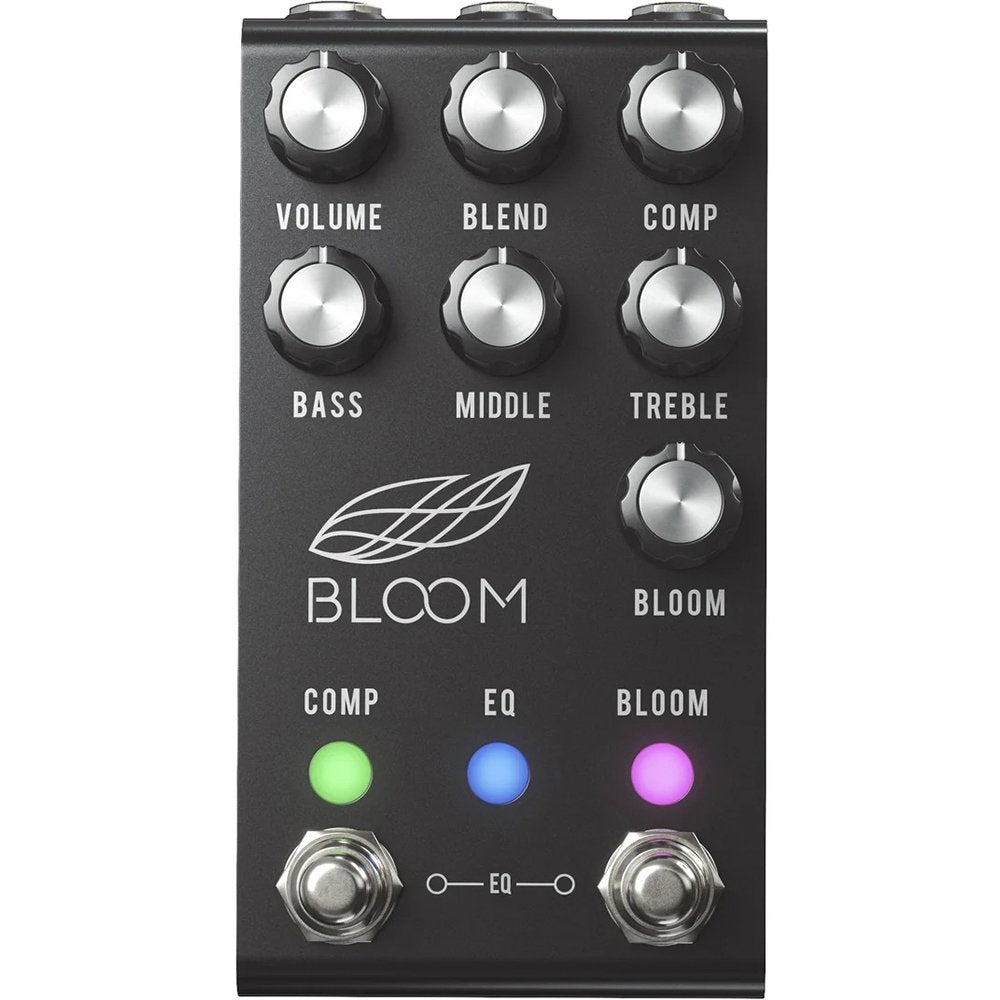

Controls and switches
- VOLUME — Master output level for the primary compressor.
- BLEND — Mixes clean and compressed signal; fully counter-clockwise is full compression, fully clockwise is full clean.
- COMP — Sets compression amount for the primary compressor circuit; the COMP LED shifts color as gain reduction increases.
- BASS / MIDDLE / TREBLE — Active Baxandall-style EQ, +/-12dB per band with center detents, flat at 12 o'clock.
- BLOOM — Sets boost amount (0-20dB) and, in program mode, the boost ramp time.
- Internal AUX COMP / AUX VOLUME trimmers — Set the auxiliary compressor (fixed 7.5ms attack) used by modes 5 and 6; reachable with the cover removed.
- COMP and BLOOM footswitches — Engage compression and boost independently; hold either over 1 second for program mode; press both together to toggle the EQ.
Compression modes
- 1 White — Limit: ultra-fast 2.5ms attack that clamps any signal like a limiter.
- 2 Green — Country: fast 7.5ms attack.
- 3 Magenta — R&B: medium 50ms attack.
- 4 Blue — Ballad: slow 120ms attack.
- 5 Aqua — Slide ("Joey"): the auxiliary compressor runs in series ahead of the primary compressor for extended sustain.
- 6 Orange — Aux: the auxiliary compressor on its own.

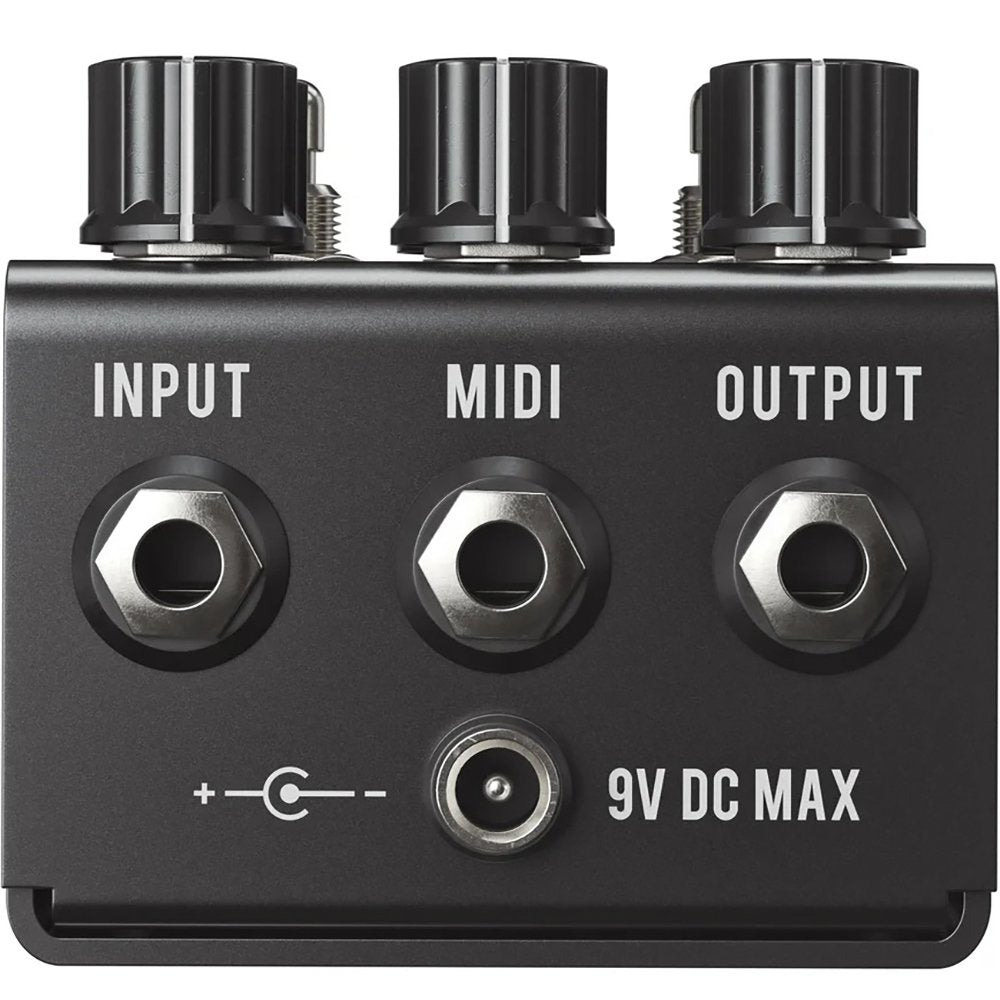

Connections and power
- Runs on a 9V DC center-negative supply (9V maximum, 2.1mm barrel) rated at 300mA minimum.
- Top-mounted jacks for easier pedalboard placement.
- MIDI control of all six compression modes, circuit on/off and BLOOM level; the BLOOM level can be swept from a MIDI expression pedal.
| Effect type | Optical compressor, active 3-band EQ, boost/sustainer |
|---|---|
| Compression modes | 6 (Limit, Country, R&B, Ballad, Slide, Aux) |
| Attack times | 2.5 / 7.5 / 50 / 120 ms |
| EQ | 3-band active, +/-12 dB per band, center-detented |
| Boost | 0-20 dB, ramp time 1-5 s |
| Bypass | True bypass or buffered (programmable) |
| MIDI | Yes: modes, COMP/EQ/BLOOM on-off, BLOOM level |
| Power | 9V DC center-negative, 9V max |
| Required supply current | 300 mA minimum |
| Input impedance | 1 MΩ |
| Output impedance | 100 kΩ |
| Footprint | 2.7 x 4.875 in (69 x 124 mm) |
| Jacks | Top-mounted |
| Warranty | 5-year Jackson Audio VIP Warranty |
FAQ
How many compression modes does Bloom V2 have? Six: Limit (2.5ms), Country (7.5ms), R&B (50ms), Ballad (120ms), Slide/Joey (auxiliary and primary compressors in series for extended sustain), and Aux Compressor alone.
Can I use the EQ or the boost without compression? Yes. The COMP, EQ and BLOOM circuits switch on separately or together, so the EQ and the boost/sustainer also work on their own.
Is the bypass true bypass or buffered? Both are available; bypass mode is programmable between true bypass and buffered bypass.
Can the boost be controlled with an expression pedal? Yes, over MIDI: the BLOOM boost level can be swept from a MIDI expression pedal or controller.
What power does Bloom V2 need? A 9V DC center-negative supply rated at 300mA or more. Do not exceed 9V.
How is Bloom V2 different from Blossom? Blossom uses the same optical circuit as Bloom's Country mode in a compact four-knob pedal, without the extra compression modes, 3-band EQ, BLOOM boost or MIDI.
