The Meris Enzo X is a six-voice polyphonic modular instrument synthesizer that any instrument — or a MIDI keyboard — can play, with full ADSR envelopes, onboard reverbs and drives, and no special pickup required.
Enzo X expands the original two-footswitch Enzo into a 6-voice polyphonic modular synth: full ADSR envelopes for both filter and amplitude (Enzo uses a single Filter Envelope knob and a Sustain control), dual 2500 ms delays instead of one 530 ms delay, three onboard reverbs, five drive types, full 6-voice polyphonic MIDI note input with pitch and mod wheels, and 99 presets across a color screen instead of 16.
Why guitarists choose the Enzo X
- 6-voice polyphonic synth engine, each voice with two oscillators (saw, triangle or square, with cross-modulation), a filter, a filter envelope and an amplifier envelope; tracks guitar or bass directly or plays from a MIDI keyboard — no special pickup required.
- Full ADSR envelopes on both filter and amplitude shape pads, swells, and plucky leads with real synth-level control.
- Five synth modes: Mono Synth, Poly Synth, Arp Synth, Dry Mono and Dry Poly; the arpeggiator runs 1–16 steps over 1–3 octaves in Up, Down, Up/Down and Enzo patterns.
- Onboard effects let a full synth patch live inside one pedal: three Prism-structure reverbs, dual stereo delays up to 2500 ms, five drives (Volume Pedal, Tube, Op Amp, Transistor, Bit Crush) and five modulation types (Chorus, Flanger, Phaser, Vibrato, Ring Mod).
- Color screen and 99 preset locations in 33 banks, plus a favorites bank, make deep patches easy to build, name, and recall.
- Native 5-pin DIN MIDI In/Out plus USB-C give full remote control with no external converter box needed; a built-in chromatic tuner is included.

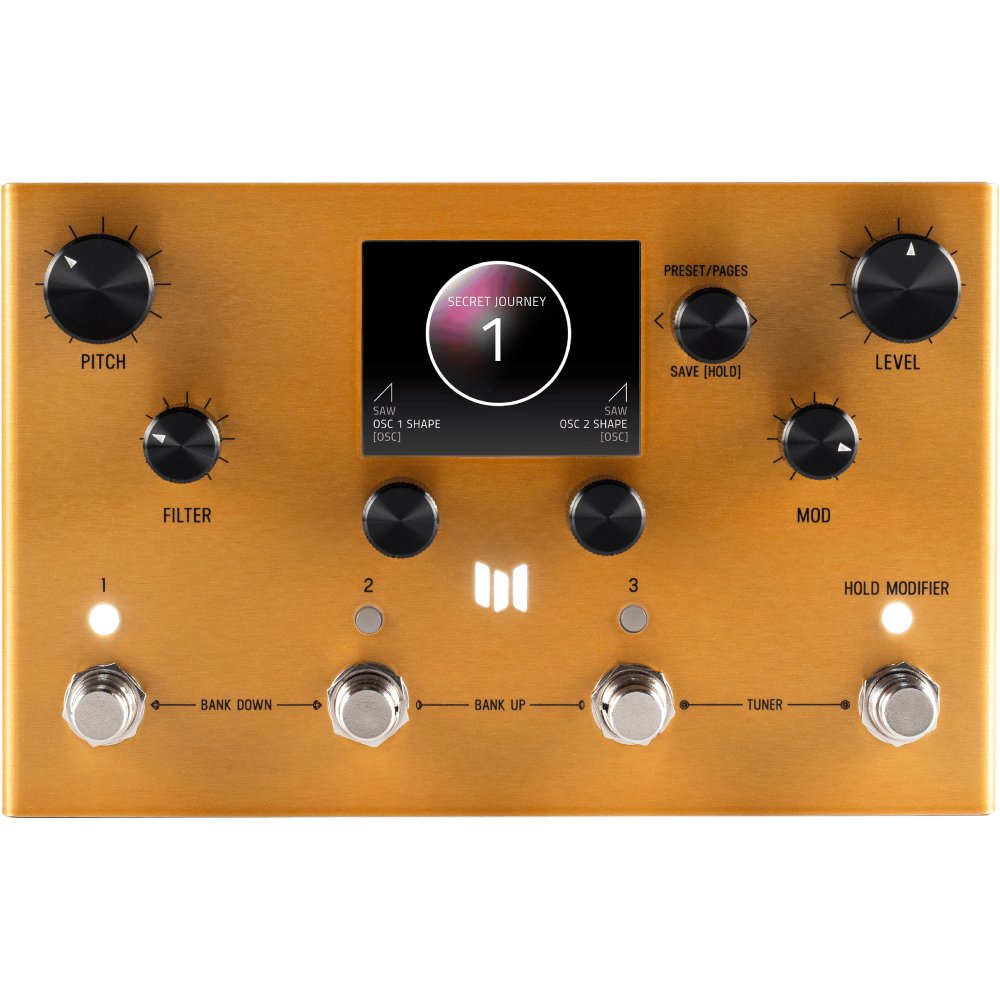

Controls and switches
- Pitch, Filter, Level and Mod — dedicated front-panel knobs for the core synth parameters; the filter covers Ladder, State Variable and Twin types, and Mod works with the five modulation types.
- C1 / C2 encoders — Edit the two favorite parameters on the preset page, or the selected parameter in the edit pages.
- C3 encoder — Turns to browse presets 1–99, pushes to enter the edit pages, and holds to enter Save As.
- 4 LED buttons (1, 2, 3, Hold Modifier) — Mirror the four footswitches for desktop and studio use.
- Footswitches 1, 2, 3 — Select presets in the current bank; press 2+3 to bank up and 1+2 to bank down.
- Hold Modifier footswitch — An envelope generator switch configurable per preset as Momentary, Latching, or Tap Tempo action, also triggerable over MIDI.

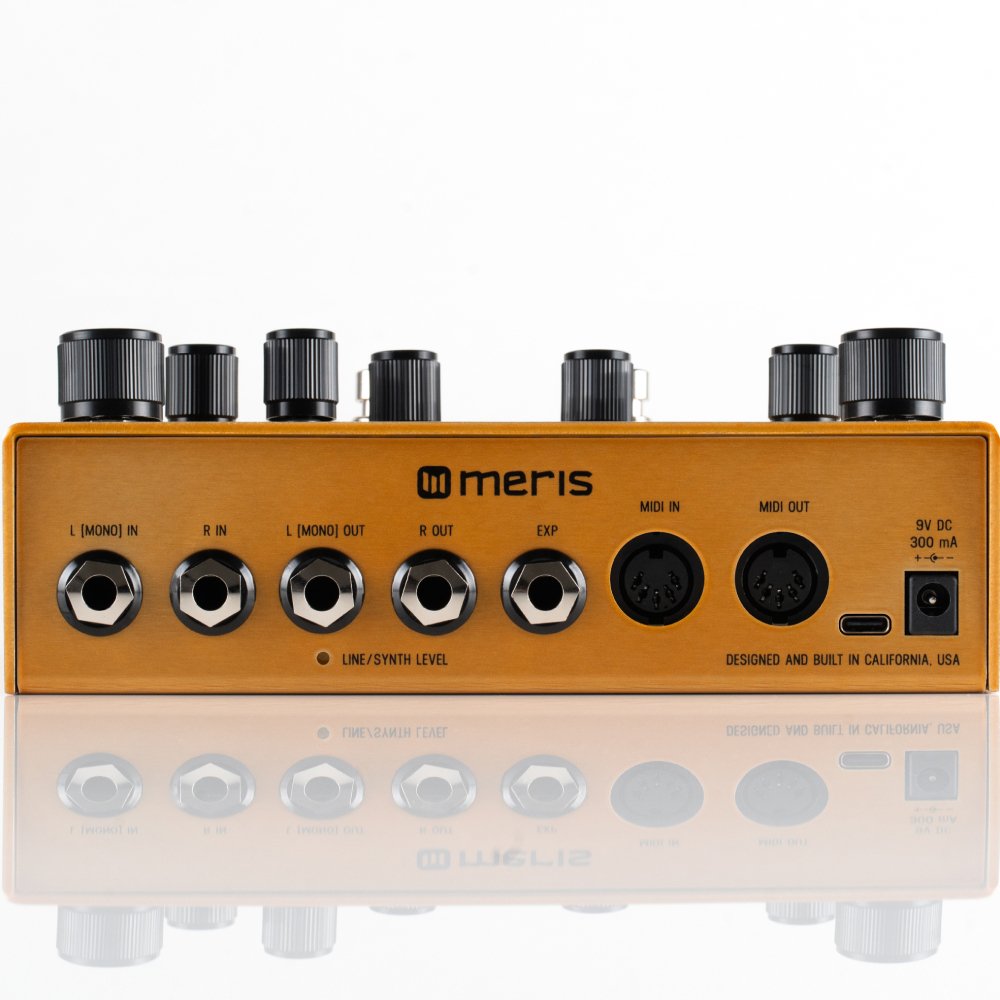

Connections & Power
- Stereo input and output on separate 1/4" jacks, switchable between instrument and line/synth level.
- 5-pin DIN MIDI In and MIDI Out (Out can be set to Thru).
- USB-C for firmware updates and MIDI over USB (firmware 1.5 and later).
- Dedicated expression pedal jack.
- Enzo X runs on 9V DC, center-negative, 2.1 mm barrel, drawing at least 300 mA — use an isolated multi-output supply rated for that current. Power supply not included; battery operation is not supported.
- The relay true bypass is mono only; running stereo input or output, Bypass Trails, Spillover, or Kill Dry automatically switches Enzo X to Analog Buffered Bypass.
| Model | Meris Enzo X |
|---|---|
| Effect type | Modular instrument synthesizer |
| Polyphony | 6 voices, 2 oscillators per voice |
| Synth modes | Mono Synth, Poly Synth, Arp Synth, Dry Mono, Dry Poly |
| Envelopes | Full ADSR for filter and amplitude |
| Filter types | Ladder, State Variable, Twin |
| Effects | 3 reverbs, 2 delays (2500 ms each), 5 drives, 5 modulation types |
| Presets | 99 in 33 banks + favorites bank |
| Footswitches | 4 (1, 2, 3, Hold Modifier) + 4 matching LED buttons |
| Display | Full-color LCD |
| Audio I/O | Stereo in / stereo out, 1/4", instrument or line level |
| MIDI | 5-pin DIN In / Out (Thru selectable); MIDI over USB-C (firmware 1.5+) |
| Expression | 1 x 1/4" jack |
| Bypass | Selectable relay true bypass (mono only) or analog buffered bypass |
| Tuner | Chromatic, reference 425–455 Hz |
| Power | 9V DC center-negative, 2.1 mm |
| Current draw | 300 mA minimum supply rating |
| Dimensions | 7.25 W x 4.5 L x 2 H in (184 x 114 x 51 mm) |
| Weight | 24 oz (680 g) |
FAQ
How many voices does Enzo X have? Six fully polyphonic voices available simultaneously, each with two oscillators, a filter, a filter envelope, and an amplifier envelope.
Do I need a special pickup? No. Enzo X performs polyphonic pitch detection with no special pickup necessary.
Can I play Enzo X from a keyboard? Yes. The synth modes are playable via the instrument input or a MIDI keyboard, with full 6-voice polyphonic MIDI note input plus pitch and mod wheels.
What is the difference between Enzo X and Enzo? Enzo X adds full ADSR envelopes, dual longer delays, three onboard reverbs, five drive types, MIDI-keyboard play, a color screen and 99 presets. Enzo is the original compact two-footswitch version with 16 presets over MIDI.
Does Enzo X need a MIDI interface box? No. Enzo X has its own 5-pin DIN MIDI In/Out jacks, plus MIDI over USB-C on firmware 1.5 and later.
Is Enzo X true bypass? It offers selectable relay true bypass for mono setups. Stereo I/O, Bypass Trails, Spillover and Kill Dry use analog buffered bypass, which Enzo X switches to automatically.
What power supply does Enzo X need? 9V DC, center-negative, 2.1 mm barrel, at least 300 mA. A power supply is not included.
