Description
The legendary magnetic-drum delay, reborn — T-Rex's Binson Echorec recreates the mechanical drum echo heard on classic recordings by David Gilmour and Hank Marvin, using a real rotating drum and physical recording and playback heads.
Why guitarists choose this pedal
- Real magnetic-drum echo — a custom alloy drum spins past physical recording and playback heads for the authentic Binson voice.
- Two recording heads (short and long) plus four individually switchable playback heads, each with its own level control.
- Repeat/Swell switch changes between standard delay (repeats decay away) and swell (overlapping repeats act like a lush reverb-delay hybrid).
- Drum Speed control adjustable ±20% for pitch and rhythm modulation effects.
- Balanced XLR and unbalanced 1/4" inputs and outputs for both studio and live rigs.

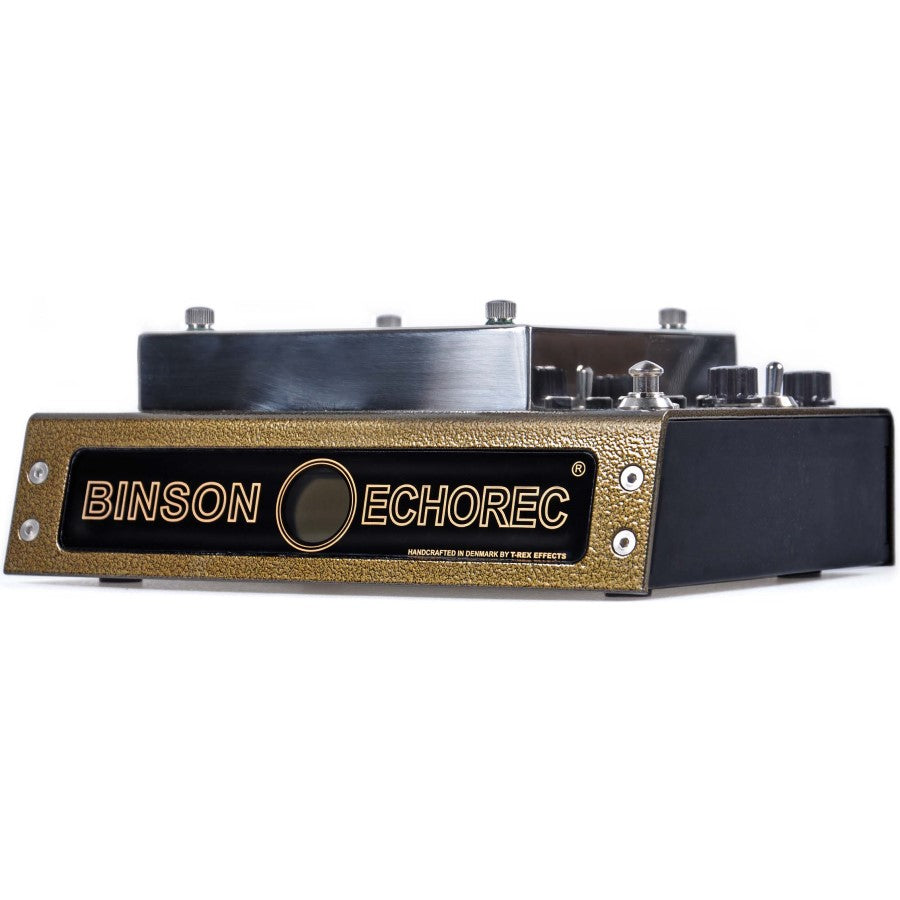

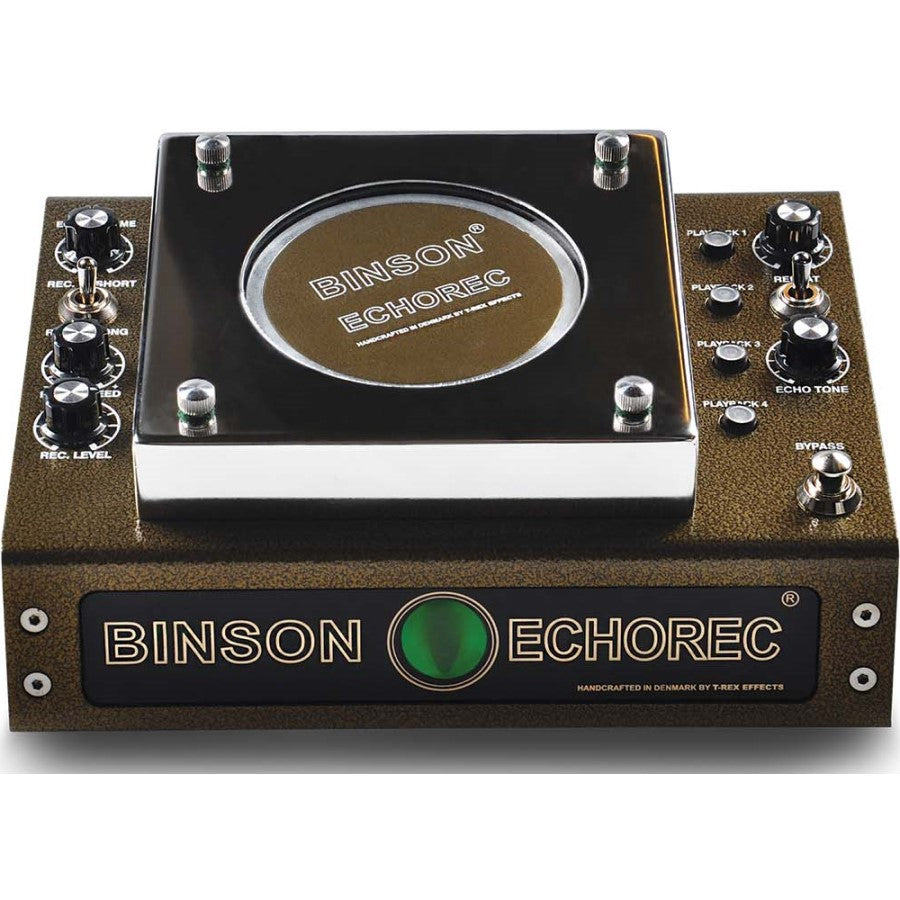

- Magic Eye level meter and hand-built-in-Denmark construction.

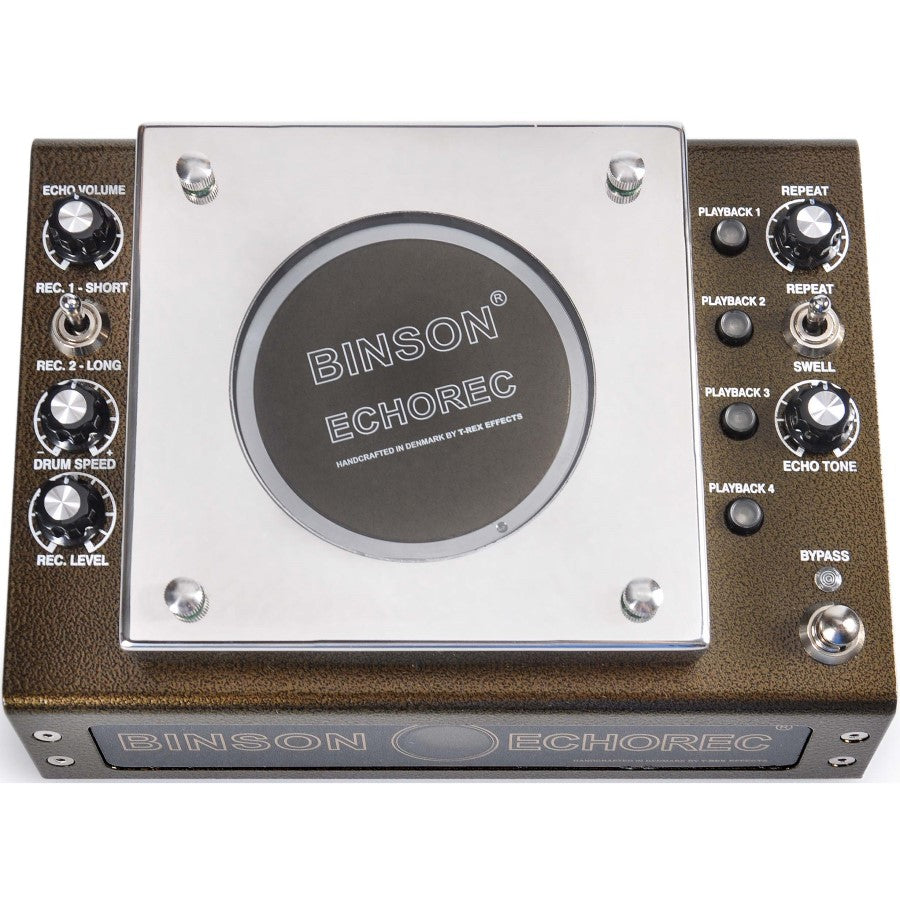

Controls and switches
- Echo Volume — mix of the wet echo signal.
- Record Head Selector — Rec 1 (short) or Rec 2 (long); Head 2 sits at three times the spacing of Head 1.
- Drum Speed — ±20% speed variation for pitch and rhythm modulation; the center position matches the original unit's speed. Slower speeds add low end, faster speeds brighten the repeats.
- Record Level — how hard the signal is recorded onto the drum; high settings add compression, overdrive and fuzz. The Magic Eye shows input strength and saturation.
- Playback Heads 1–4 — individual on/off selectors; combine any set for multi-tap patterns.
- Repeat — feedback amount; controls how many times the pattern repeats.
- Repeat/Swell Switch — standard delay or reverb-like overlapping echoes. Swell works independently of the playback selectors; with all heads off, the swells come without repeats.
- Echo Tone — rolls off the high frequencies of the repeats.
- Bypass Switch — engages the effect; hold it for more than 2 seconds in bypass to stop the drum.
- Playback Level Trimmers — rear-mounted per-head trim controls, factory pre-set, adjustable with a small flat screwdriver.

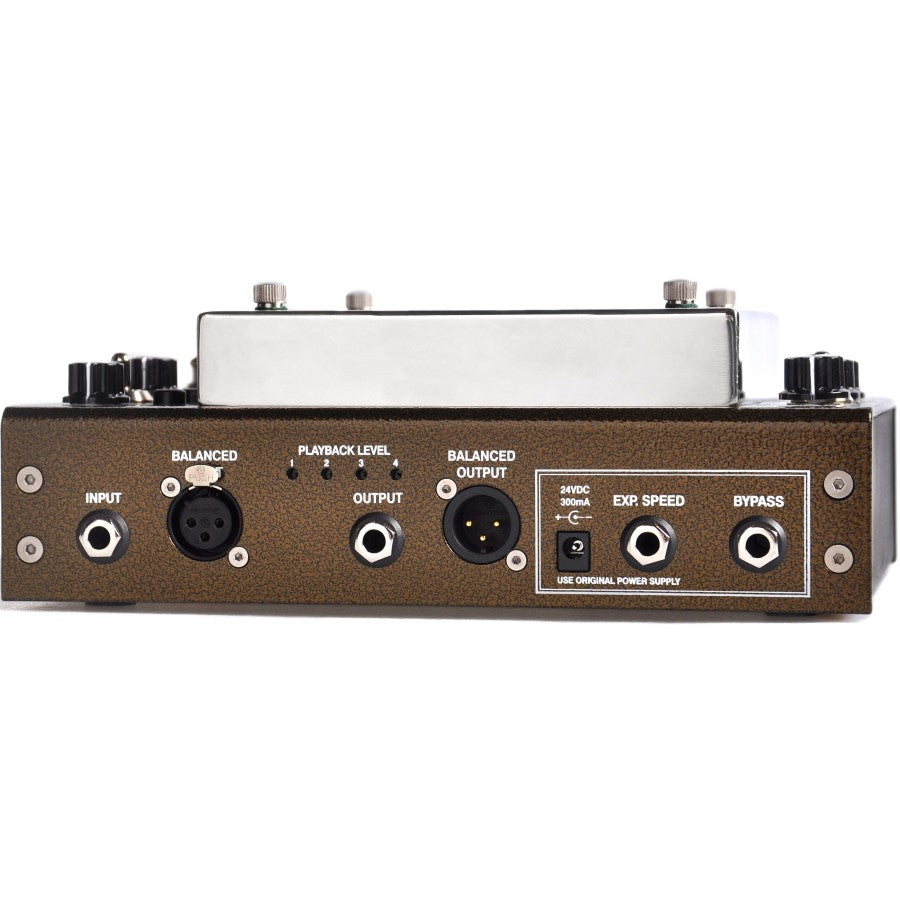

Connections & Power
- 1/4" input and balanced XLR input — accepts instruments, effects pedals or line-level signals.
- 1/4" output and balanced XLR output.
- Expression pedal input for Drum Speed control on the fly (±20%).
- External bypass input for a momentary footswitch.
- 24V DC only, center-negative, 2.0 mm center pin — dedicated supply included; do not substitute a standard 9V or 12V supply.
- Current draw 300 mA at 24V DC.
- No battery operation — the drum motor runs from the included supply.
In the Box
- T-Rex Binson Echorec
- 24V DC power supply with interchangeable plug blades (USA, Europe, Australia, UK)
- Binson oil for drum lubrication
Care
- Clean the drum with a lint-free cloth dampened with isopropyl alcohol, reaching it between Record Heads 1 and 2.
- Clean the heads by sliding paper between the heads and the drum while turning the drum.
- Lubricate the drum with the included Binson oil at the lowest speed setting; clean the mechanism if mechanical noise increases.
| Model | T-Rex Binson Echorec |
|---|---|
| Effect type | Magnetic-drum delay (mechanical) |
| Heads | 2 record (short/long), 4 switchable playback |
| Drum speed | ±20% around approx. 32 m/min |
| Controls | Echo Volume, Record Head Selector, Drum Speed, Record Level, Playback Heads 1–4, Repeat, Repeat/Swell, Echo Tone, Bypass |
| Inputs | 1/4" jack, XLR balanced |
| Outputs | 1/4" jack, XLR balanced |
| Control inputs | Expression (drum speed), external bypass |
| Input impedance | approx. 500 kΩ at 1 kHz |
| Output impedance | approx. 1 kΩ at 1 kHz |
| Power | 24V DC center-negative, 2.0 mm pin, 300 mA (supply included) |
| Dimensions (incl. knobs) | 9.84 × 7.48 × 3.94 in (250 × 190 × 100 mm) |
| Weight | 5.73 lb (2.6 kg) |
| Made in | Denmark |
| Warranty | 2 years |
FAQ
Is this a real magnetic-drum delay? Yes — a custom alloy drum physically rotates past a set of recording and playback heads. It is not a digital emulation.
How is it different from the Replicator D'Luxe? Both are mechanical, real-media delays from T-Rex. The Binson Echorec records onto a rotating magnetic drum with four playback heads and a Repeat/Swell mode, for chiming, multi-tap repeats; the Replicator D'Luxe uses a moving tape loop.
Can I use a standard 9V pedalboard supply? No — the Echorec requires the included 24V DC / 300 mA supply (center-negative, 2.0 mm pin). Do not substitute a 9V or 12V brick.
Does the XLR output work with a mixer or PA? Yes — the balanced XLR input and output let you run the Echorec from a mixing console for studio work or live applications.
Where does it sit in my chain? It accepts instrument, effects-pedal and line-level signals, so it works after your drives, in an amp effects loop or on a console send. Set Record Level by watching the Magic Eye.
How do I stop the drum when I'm not playing? Hold the bypass switch for more than 2 seconds while in bypass and the drum stops.
Can I control drum speed with my foot? Yes — connect an expression pedal to the EXP input to sweep drum speed by ±20%.
Warranty? 2-year manufacturer warranty.
