About This Item
Description
A genuine tape echo — not an emulation, not a digital model. The Replicator D'Luxe runs a physical tape loop through one record head and two playback heads for authentic warmth, wow, and flutter that only real tape can produce.
How does the Replicator D'Luxe compare with the Binson Echorec?
Both pedals are real-tape/mechanical echoes handcrafted by T-Rex. The Replicator D'Luxe uses a moving tape loop with one record head and two switchable playback heads (Short/Long) for classic tape-echo character. The T-Rex Binson Echorec is a magnetic-drum delay with four switchable playback heads and a Repeat/Swell mode — a very different mechanical instrument with its own famous voice made popular by David Gilmour. Both live on our site as separate models.
Why guitarists choose this pedal
- Real moving tape — an actual tape loop passes over recording and playback heads for authentic tape-echo warmth.
- One record head plus two switchable playback heads (Short and Long) for classic single- and double-repeat patterns.
- Tap tempo dedicated to the Long head; short head runs at half of Long head's time for rhythmic multi-head effects.
- Updated motor suspension and belt drive over the original Replicator — quieter operation, longer tape life.
- All-analog signal path from input to output, with true bypass on gold-plated relay switching.

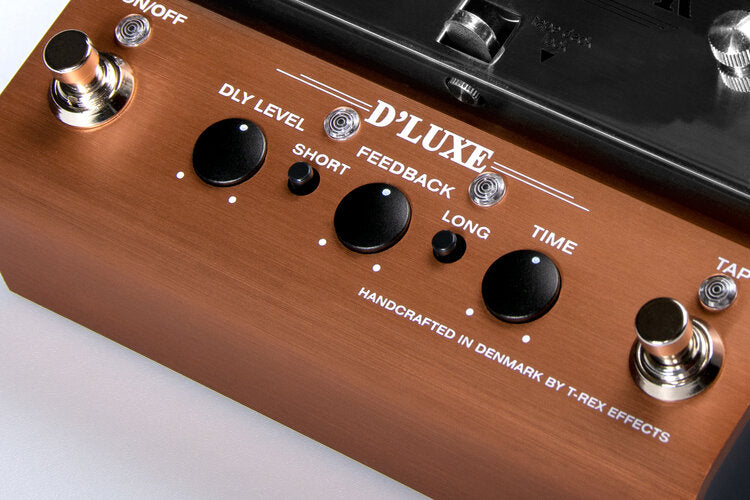

Controls and switches
- Delay Time — sets echo time; interacts with the head selector.
- Feedback — number of repeats.
- Delay Level — mix of the echoed signal.
- Saturation — drives the tape circuit harder for gritty, self-oscillating repeats.
- Short Head switch — engages the short playback head.
- Long Head switch — engages the long playback head.
- Kill Dry switch — mutes the dry signal for send/return loop or parallel operation.
- On/Off footswitch — engages the effect.
- Tap Tempo footswitch — sets Long head time.
Power and pedalboard compatibility
- 12 V DC only, negative-center, 2.1 mm barrel — universal 90–240 V wall adapter with exchangeable blades included.
- Current draw ~300 mA at 12 V DC.
- No battery operation — the moving-tape motor requires wall power.

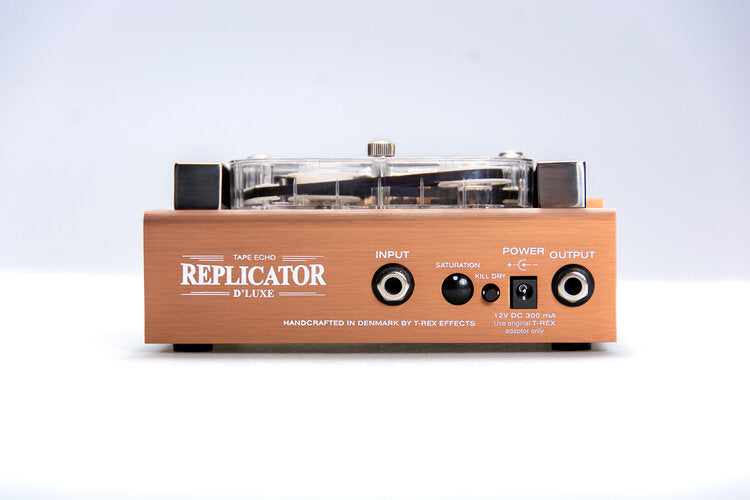

- True bypass (gold-plated relay). Side-mounted jacks. Kill Dry mode lets you run it in an amp effects loop or as a wet-only send in parallel.
Technical specifications
| Model | T-Rex Replicator D'Luxe Tape Echo |
| Effect type | Genuine tape echo delay (mechanical) |
| Circuit | All-analog signal path |
| Controls | Delay Time, Feedback, Delay Level, Saturation, Kill Dry, Short/Long Head switches |
| Bypass | True bypass (gold-plated relay) |
| Input impedance | > 500 kΩ |
| Output impedance | < 1 kΩ |
| Power | 12 V DC (center-negative, 90–240 V PSU included) |
| Current draw | 300 mA |
| Jacks | Side-mounted input, output, tap tempo in, expression |
| Enclosure dimensions | 17.5 × 17.4 × 8.0 cm |
| Weight | 1500 g |
| MPN / SKU | 811059010380 |
| GTIN (UPC/EAN) | 811059010380 |
| Country of manufacture | Denmark |
FAQ
Is this a real tape echo?
Yes — a physical tape loop runs across a record head and two playback heads, producing genuine analog tape-echo behavior. It is not a digital emulation.
How long does a tape cartridge last?

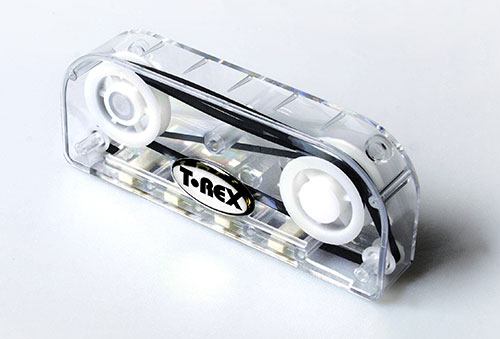

In normal use, several hundred hours. Included is a spare cartridge; replacements are available from T-Rex.
How is it different from the Binson Echorec?
The Replicator D'Luxe uses a moving tape loop with two playback heads. The Binson Echorec uses a magnetic drum with four playback heads and a Repeat/Swell mode. Both are mechanical delays, but they sound and behave very differently — the Echorec is more forward, chime-like, and multi-tap; the D'Luxe is warm, saturated, and tape-modulated.
Can I use it in an amp effects loop?
Yes — engage Kill Dry to mute the dry path for wet-only send-and-return use.
Battery-powered?
No — the tape motor requires the included 12 V power supply.
Warranty?
2-year manufacturer warranty.
