About This Item
Description
Five essential acoustic effects on one board — Compressor, EQ, Reverb, Chorus, and Delay — routed with a dedicated preamp and balanced XLR DI, so a single cable takes your acoustic pickup straight to the front of a PA.
What is the SoulMate Acoustic?
The SoulMate Acoustic is a purpose-built all-in-one pedalboard for acoustic guitar. It combines the effects most acoustic players actually reach for — Compressor, three-band EQ, Reverb, Chorus, and Delay — with a built-in FET preamp and balanced XLR DI output. It is the acoustic-focused counterpart to the electric-guitar SoulMate.
Why guitarists choose this pedal
- Five independent effects on one board — no separate patch cables, no signal loss between stages.
- Built-in FET preamp with 1 MΩ / 10 MΩ selectable input impedance for piezo or magnetic pickups.
- Balanced XLR DI output — go straight from the pedal to a PA or recording interface without a separate DI box.
- 24-bit / 48 kHz digital effects voiced specifically for acoustic guitar (subtler chorus, longer reverbs, cleaner delays).
- Individual footswitch per effect plus dedicated tap tempo, tuner out, and expression pedal inputs.
Controls and switches
- Compressor — Sustain and Level for taming picking dynamics.
- 3-band EQ — Bass, Middle, Treble with center-detent flat positions.
- Reverb — Mix, Decay, and Type selector (Spring / Room / Hall).
- Chorus — Rate, Depth, and Level for classic modulation width.
- Delay — Time, Repeats, and Level with a tap-tempo footswitch.
- Preamp — Master Level with balanced XLR DI output on the rear.
- Individual footswitch per effect (Compressor, EQ, Reverb, Chorus, Delay, Tap-tempo).
Power and pedalboard compatibility
- 12 V DC power supply included — do not substitute a 9 V power brick.
- Current draw ~560 mA at 12 V DC.
- No battery operation — this is a floor unit designed for wall-power.

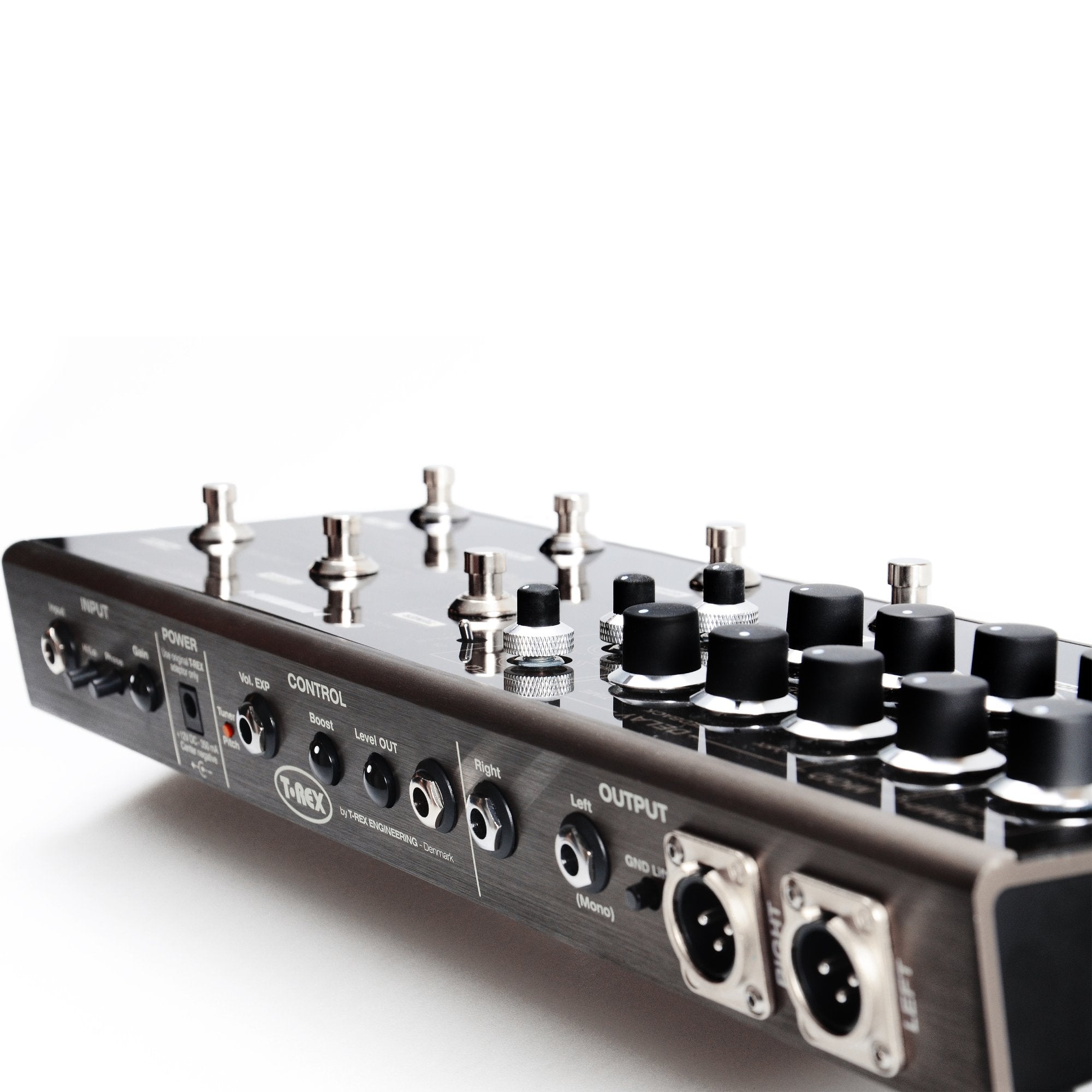

- Balanced XLR DI output on the rear panel — the pedal can be the entire signal chain between your acoustic and the PA. Also includes a tuner-out jack for silent tuning.
Technical specifications
| Model | T-Rex SoulMate Acoustic |
| Effect type | All-in-one acoustic multi-effect (Comp, EQ, Chorus, Delay, Reverb) + preamp/DI |
| Circuit | Analog dry / digital effects (24-bit, 48 kHz) |
| Controls | Per-effect knobs, master preamp level, tap tempo, expression inputs |
| Bypass | Buffered bypass per effect |
| Input impedance | 1 MΩ / 10 MΩ selectable |
| Output impedance | 330 Ω (XLR), 1.5 kΩ (1/4") |
| Power | 12 V DC (center-negative, included PSU) |
| Current draw | 560 mA at 12 V |

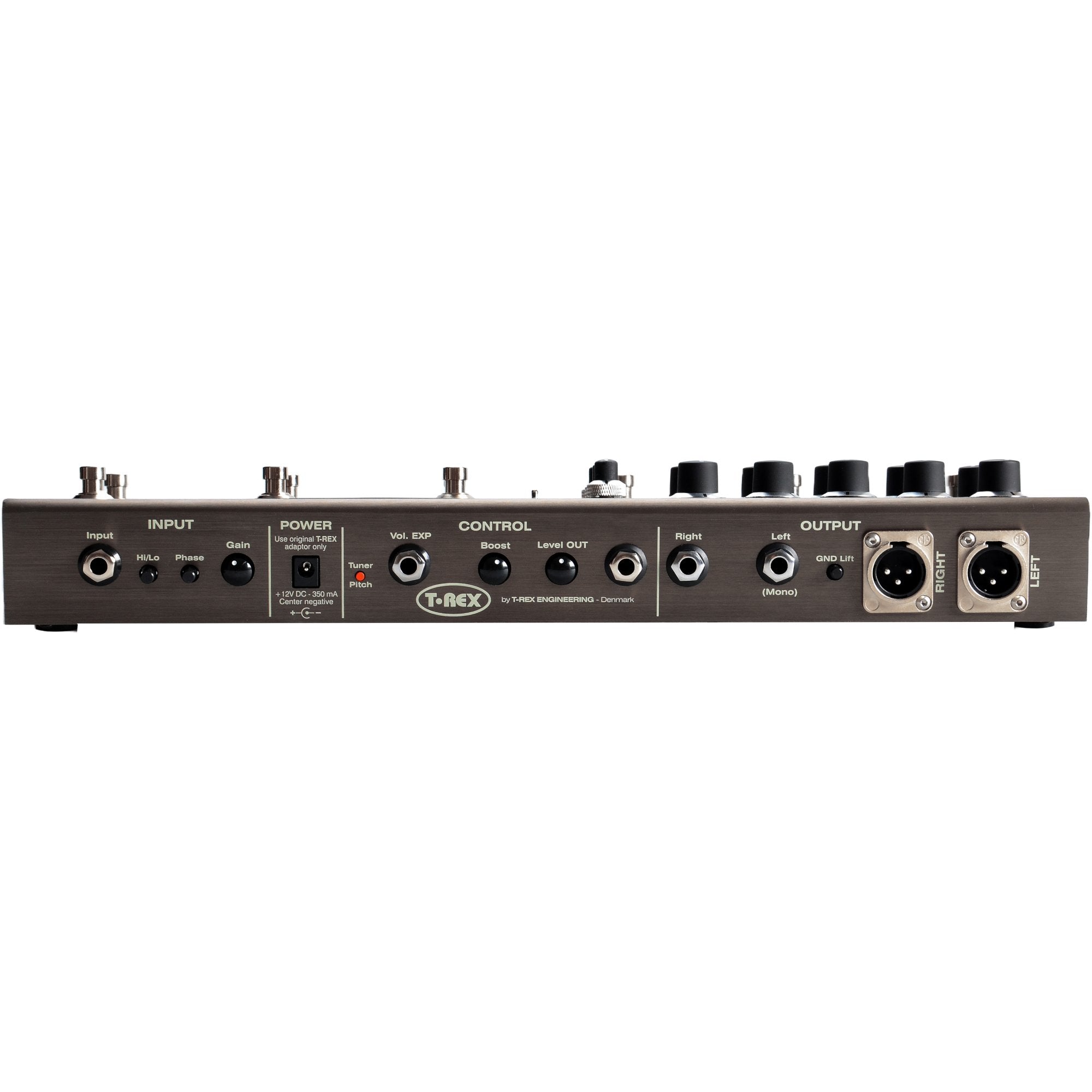

| Jacks | 1/4" input, 1/4" output, balanced XLR DI, tuner out, expression pedal inputs |
| Enclosure dimensions | 40.0 × 14.8 × 6.2 cm |
| Weight | 2000 g |
| MPN / SKU | 811059010366 |
| GTIN (UPC/EAN) | 811059010366 |
| ASIN | B074PTYND2 |
| Country of manufacture | Denmark |
FAQ
Can I use it with an electric guitar?
You can, but the voicing, compressor, and EQ are tuned for acoustic pickups. For electric guitar the standard T-Rex SoulMate is a better match.
Do I still need a DI box for the sound engineer?
No — the SoulMate Acoustic has a balanced XLR DI output built in, so a single XLR cable goes from the pedal to the PA/mixer.
Can I use my own 9 V power supply?
No. The pedal requires the included 12 V DC supply. Using 9 V will not power it correctly.
Is there a tuner?
There is a dedicated tuner-out jack so you can silently tune with an external tuner while the main signal is muted.
Does the tap tempo affect chorus and delay?
Tap tempo controls the delay time. The chorus rate is set with its own knob.
Warranty?
2-year manufacturer warranty.
