Description
The Jackson Audio New Wave turns a single stompbox into seven distinct stereo modulation voices, from lush 80s chorus to swirling rotary-speaker motion, using genuine analog bucket-brigade chips instead of a digital chorus algorithm.
Why guitarists choose the New Wave
- Genuine MN3007 bucket-brigade chips deliver true analog chorus and vibrato tone, not a digital emulation.
- Seven savable modes (70's, 80's, RCK, VIB, ROT, HRM, UC) cover vintage chorus, vibrato, rotary-speaker, harmonic, and fully custom modulation in one pedal.
- Stereo TRS input and output let synth and guitar rigs run true stereo modulation instead of a mono-in/stereo-out compromise.
- Full MIDI control over every parameter plus tap tempo and an expression jack for hands-free speed and depth control on stage.
- A footswitch-triggered BLOOM swell fades the effect in and out instead of hard-switching, so transitions stay musical.

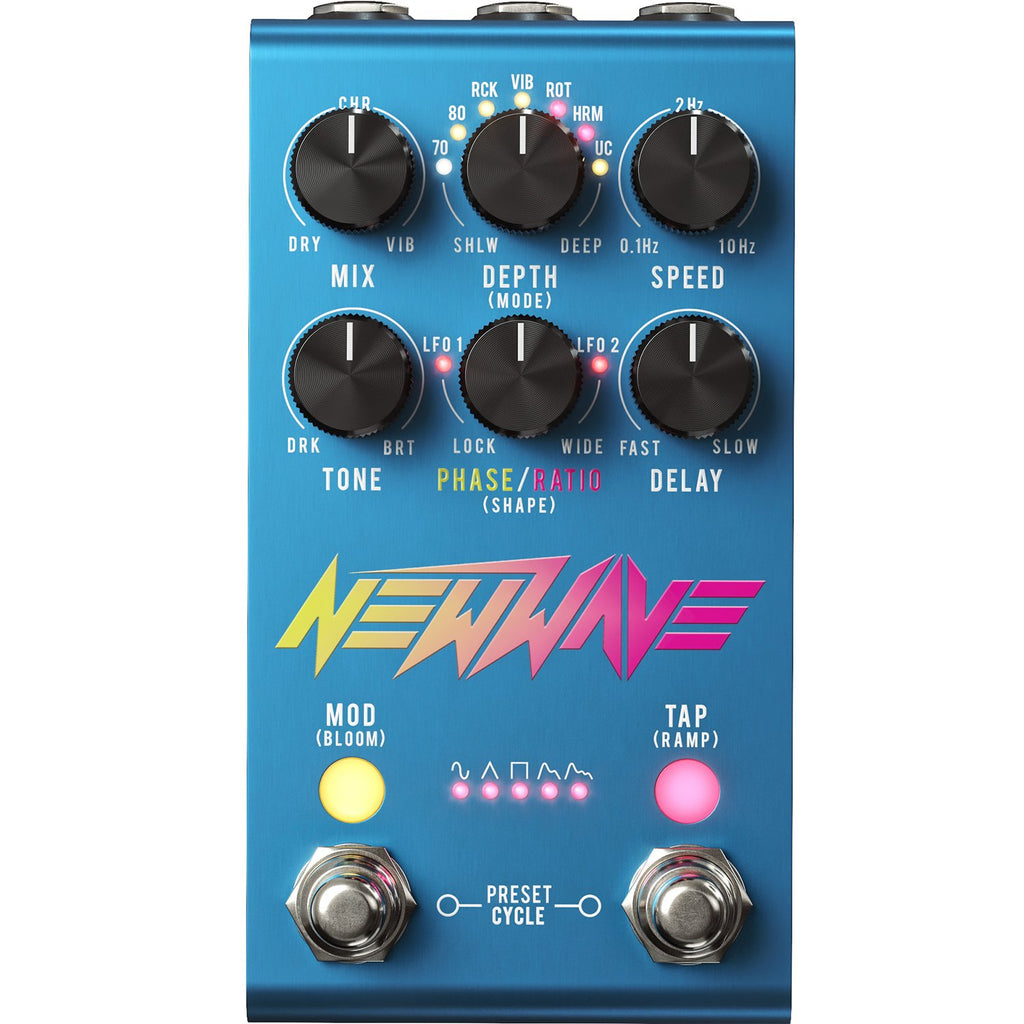

Controls and switches
- MIX — Blends dry signal with chorus/vibrato; a center detent locks in a 50/50 chorus balance.
- DEPTH / MODE — Sets modulation depth; press to step through the 7 modes, press and hold to save the current mode.
- SPEED — Sets the LFO rate from 0.1Hz to 10Hz; saved per mode.
- TONE — Shapes the wet signal from dark to bright without affecting the dry signal.
- PHASE/RATIO (SHAPE) — Sets stereo LFO phase offset (0-180°) or ratio multiplier in ROT/HRM modes; press to cycle through 5 LFO wave shapes.
- DELAY — Adjusts the BBD clock center frequency from tight to loose modulation character.
- MOD footswitch — Engages the effect; hold 1 second to toggle the BLOOM fade-in/out swell function.
- TAP footswitch — Taps in LFO speed; hold to trigger RAMP, a programmable speed glide.
Power and pedalboard compatibility
Runs on an 18V DC center-negative supply rated at 300mA or more (the only pedal in the Jackson Audio drive/modulation lineup that requires 18V rather than 9V). No battery operation is published for this pedal.
Technical specifications
| Model | Jackson Audio New Wave Analog Chorus/Vibrato Pedal |
| Effect type | Analog chorus / vibrato / rotary modulation |
| Controls | MIX, DEPTH / MODE, SPEED, TONE, PHASE/RATIO (SHAPE), DELAY, MOD footswitch, TAP footswitch |
| Bypass | True bypass |
| Input impedance | 1000 kΩ |
| Output impedance | 100000 Ω |
| Power | 18 Volt DC |
| Current draw | 300 mA |
| MPN | NW_classic |
| ASIN | B09NYKSRVQ |
| Warranty | 5-year Jackson Audio VIP Warranty |
FAQ
Does the New Wave need an 18V power supply? Yes. The New Wave is the only pedal in this lineup that requires an 18V DC center-negative supply rated at 300mA or more; a standard 9V supply is not sufficient.

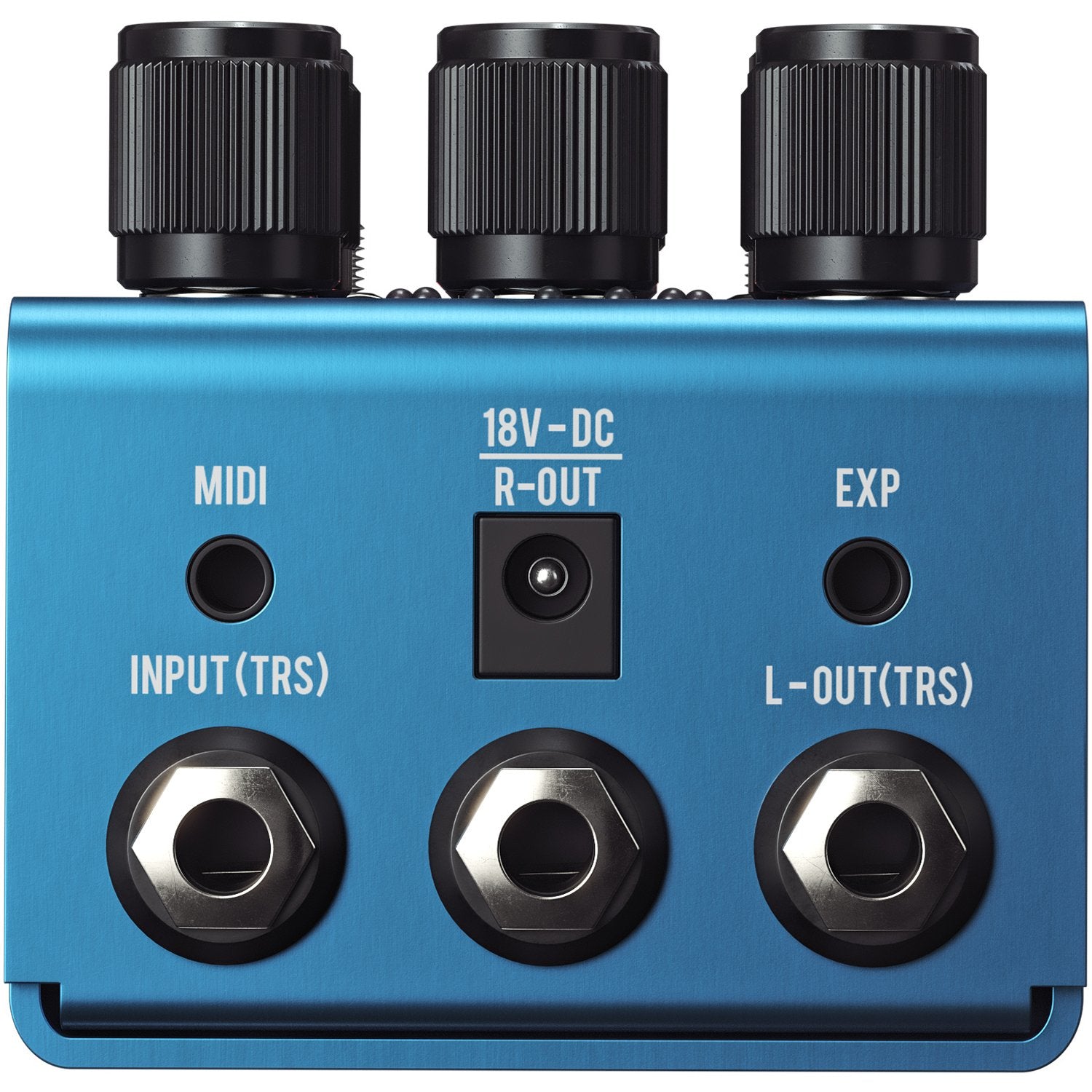

Can I run the New Wave in true stereo? Yes. Holding TAP at power-up switches between STANDARD mode (mono in, stereo out) and TRS mode (true stereo in and out using TRS cables on the input and L-OUT jacks).
Does the New Wave support MIDI? Yes, over a 1/8" TRS jack in Standard/Type A configuration using a DIN-5-to-TRS MIDI cable; MIDI CCs control every mode, depth, speed, phase, ratio, and delay parameter.
Is the New Wave true bypass or buffered? True bypass is the pedal's normal, default state. Holding the left footswitch for 1 second engages the optional BLOOM function, which fades the effect in and out on footswitch taps and switches the pedal to buffered bypass only while BLOOM is active; disabling BLOOM returns it to true bypass.
Do my mode settings survive a power cycle? Yes. Depth, speed, phase/ratio, delay, wave shape, BLOOM, and RAMP settings are saved per mode to non-volatile memory and recalled on power-up.
Is the New Wave still in production? The original New Wave has been discontinued by Jackson Audio; remaining stock is sold while supplies last.
