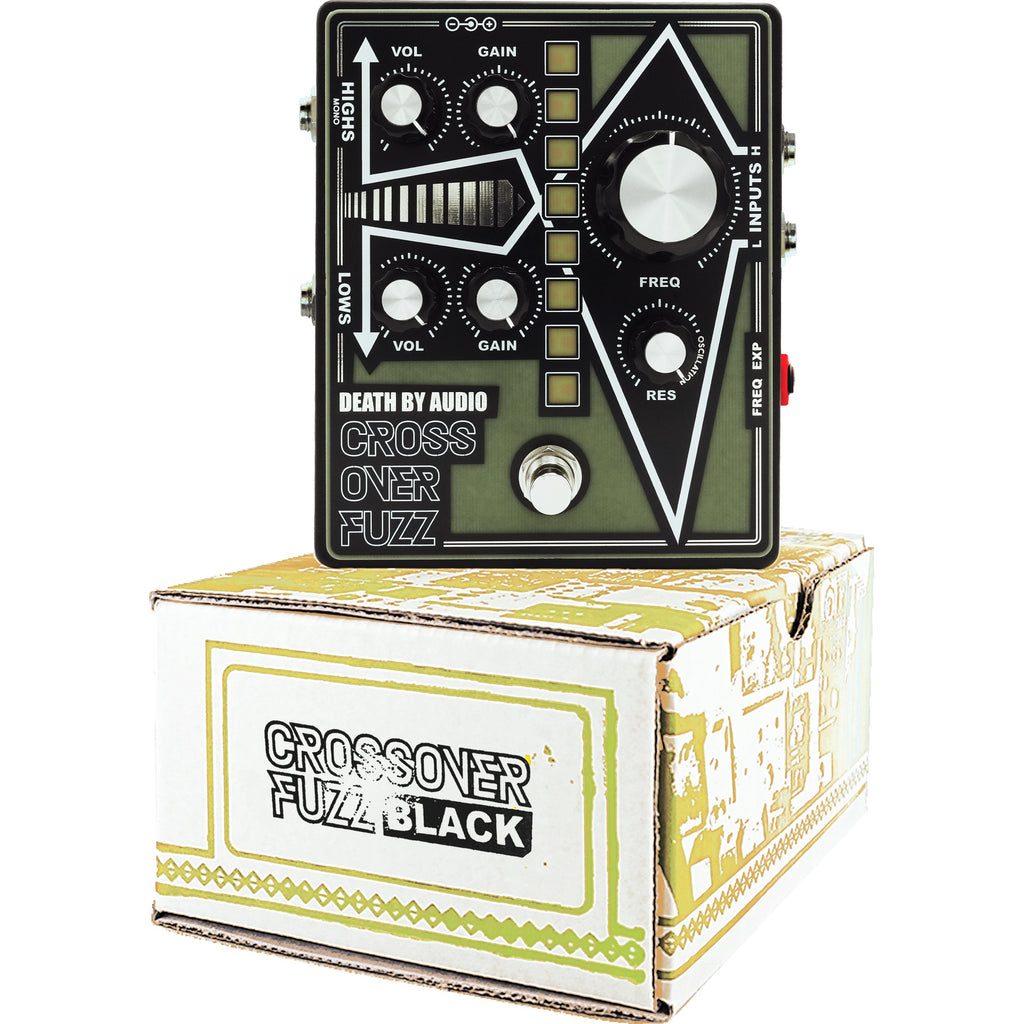

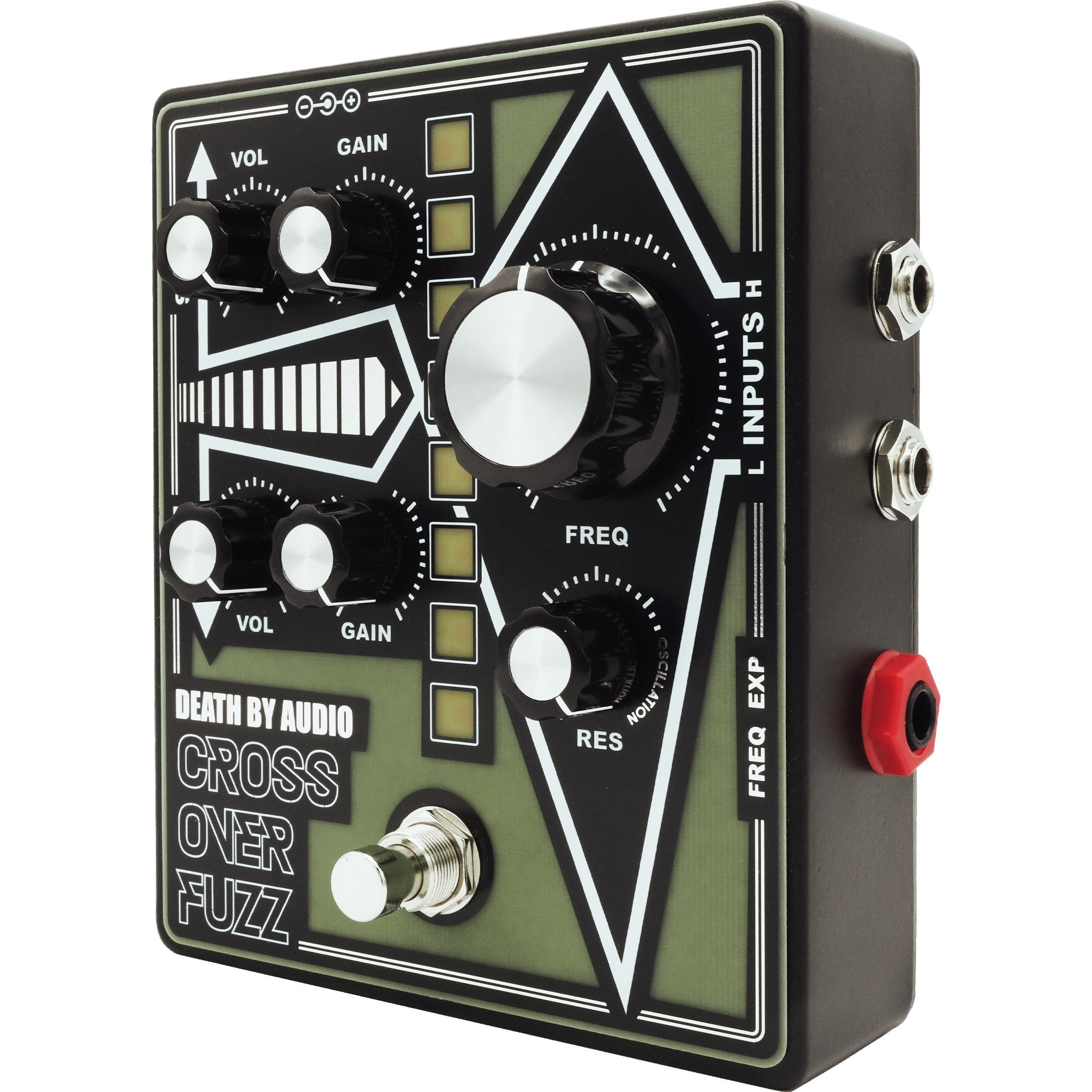

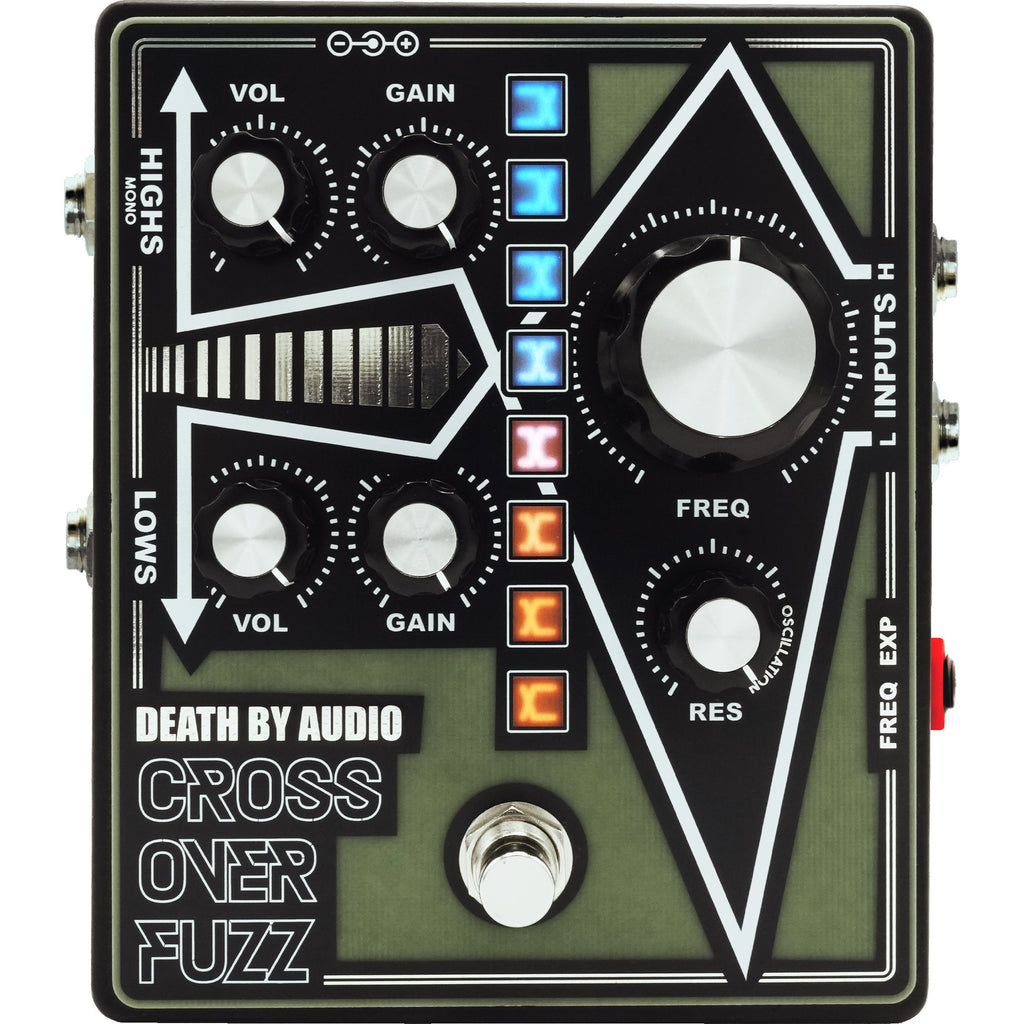

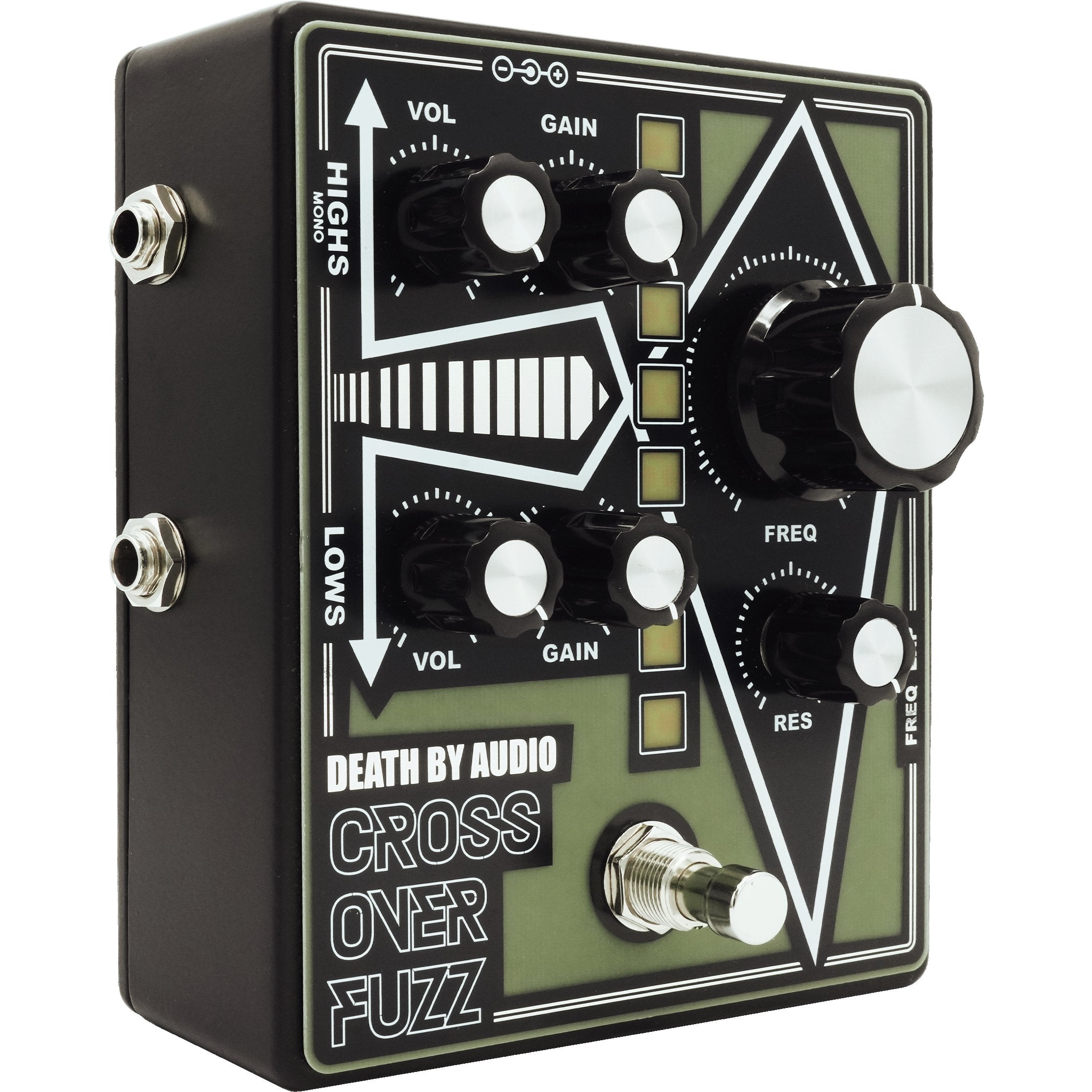

The Crossover Fuzz is a swirling filter-fuzz engine built for radical tone design. It splits your signal into high and low bands and then lets you obliterate or refine each side with independent GAIN and VOL. A single FREQ control sweeps linked low-pass and high-pass filters across the spectrum, while RES pushes from tasteful resonance to nasty oscillation for head-turning textures. Thanks to the pedal’s HIGH/LOW inputs and outputs, you can run it mono, bi-amp, stereo split, or summed, opening up creative routing—send lows to one amp and highs to another, or sling frequencies around the room. For motion on demand, the FREQ EXP jack takes an expression pedal or 0–5 V CV (TRS mapped Tip=Out/Ring=5 V/Sleeve=GND), and the reactive LED display shows where your crossover sits; choose your stage vibe with internal Sky Light (LP=Yellow/HP=Cyan) or Cyber Light (LP=Red/HP=Blue). All-analog path, 9 V DC center-negative, 120 mA, and a rugged enclosure sized at 5.73" × 5.2" × 2.37" (18.5 oz).z

DUAL-BAND ANALOG FUZZ: Splits your signal into highs and lows and fuzzes each band separately, with independent GAIN and VOL for precise tone sculpting or total destruction.SWEEPABLE LINKED FILTERS: One FREQ knob moves a low-pass (30 Hz–7.6 kHz) and a high-pass (80 Hz–17 kHz) together; RES goes from smooth contouring to screaming, even self-oscillating tones.FLEXIBLE I/O MODES: Unique HIGH/LOW inputs & outputs support Mono, Mono→Stereo split, Stereo→Mono sum, or full Stereo—send highs to a guitar amp and lows to a bass amp, or pan frequencies across the room.REAL-TIME CONTROL & VISUAL FEEDBACK: FREQ EXP jack accepts expression or 0–5 V CV (TRS: Tip=Out, Ring=5 V, Sleeve=GND); the reactive LED display shows crossover position, with internal LED color sets (Sky/Cyber).ROAD-READY SPECS: All-analog signal path; 9 V DC center-negative, 120 mA; 5.73" × 5.2" × 2.37", 18.5 oz.
