Description
The Depths is our take on the classic optical vibe circuit. Now you can swab the decks with the same lush, pulsating, three-dimensional swirling sound you know and love, with some modern accouterments for all you land-lubbers out there.
The Depths is optimized for use with all kinds of instruments, pickups, and to play well with dirt, so nobody’s left waiting on shore. If it’s got a ¼” output, plug it in and get deep!

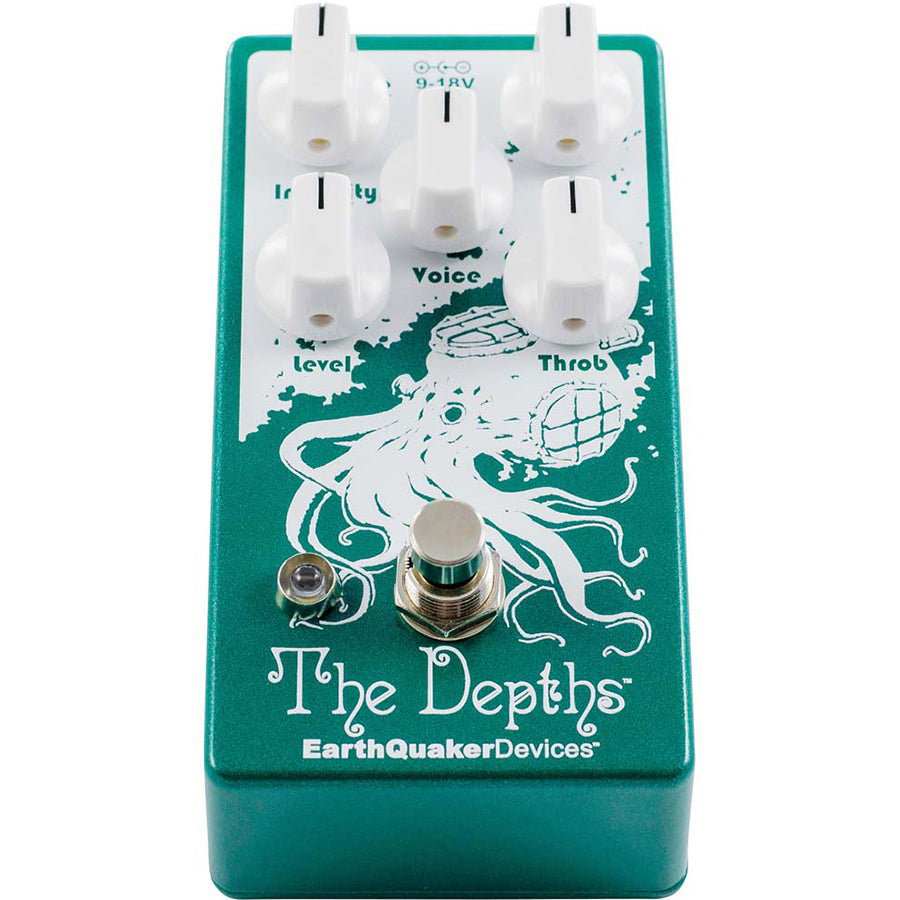

CONTROLS
Intensity: This controls how subtle or intense the overall effect is. Counterclockwise from noon are the more subtle, classic sounds. Clockwise from noon are the more drastic and intense sounds.
Voice: Dials in the overall sound. Turn it clockwise for a fuller sound with more lows, bring it back for a thinner, more midrange focused tone.
Rate: Controls the speed of the effect. Counterclockwise for slow, clockwise for fast.
Level: Controls the volume of the effect. Unity is around 1 o’clock, everything above that is boost.
Throb: This controls the low end pulse. It may not be immediately evident on the bridge pickup, but switch to the neck or add some dirt and it comes alive. All the way up for more throb, dial it back for less. Works best when the Voice is set to a warmer tone.
Video Review: EarthQuaker Devices Depths V2 Optical Vibe
| Brand | EarthQuaker Devices |
|---|---|
| Weight (kg) | 0.37 kg |
| Width (cm) | 6.3 |
| Length (cm) | 12.0 |
| Height (cm) | 5.7 |
| Battery | No |
| Expression | No |
| Jacks position on top | Yes |
| Switching presets | No |
| Power Supply | 9 Volt |
| Tap tempo | No |
| Bypass | True bypass |
| Digital or Analog | Analog |
| Current Draw, mA | 21 |
| Input Impedance, kΩ | 1000 |
| Output Impedance, Ω | 1000 |
| Best For | Electric Guitars Bass Guitars Other Instruments |
