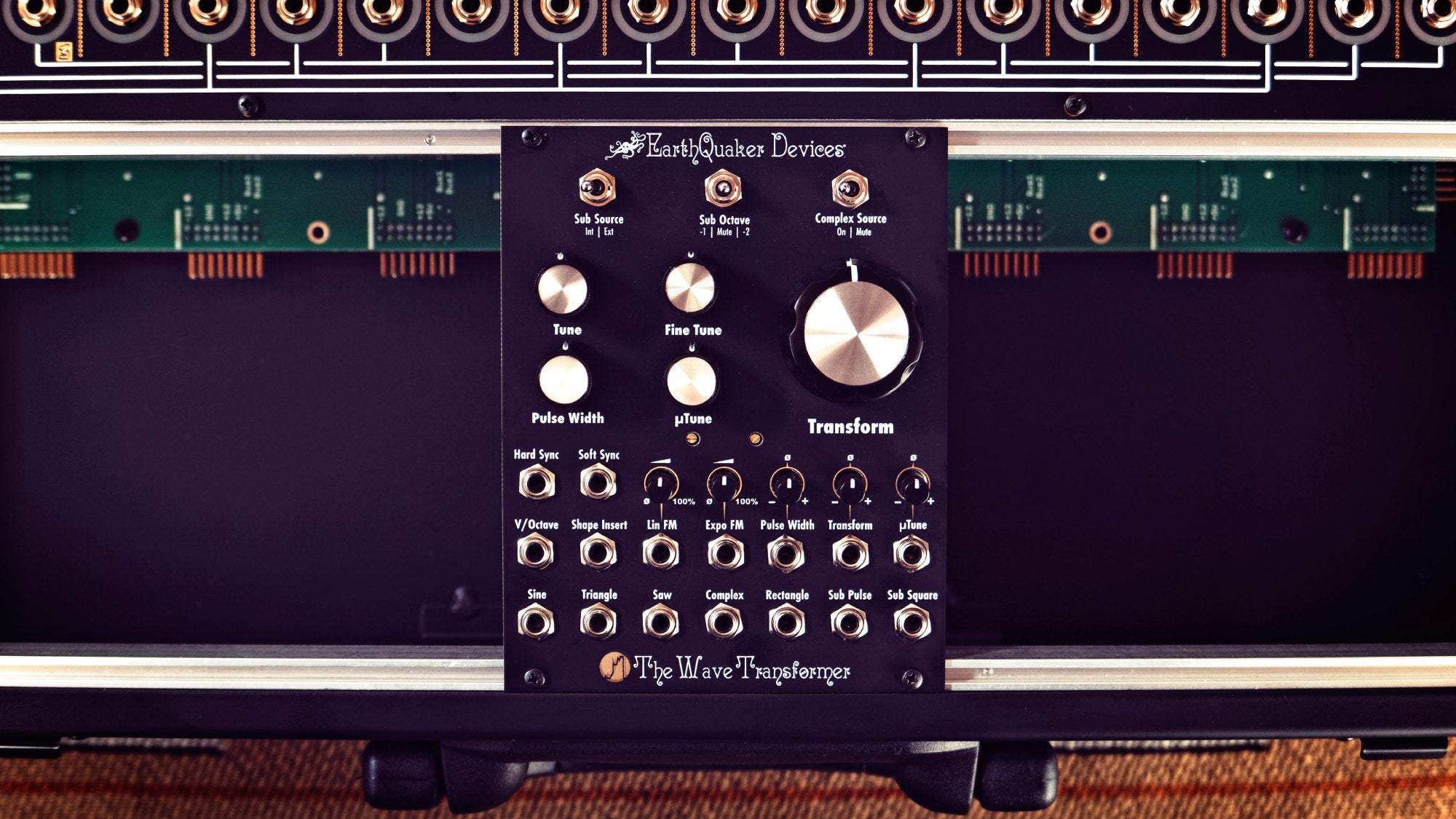

The Wave Transformer Eurorack Module Transfiguration Oscillator

Sale priceCAD$269.00
Sold out


The Wave Transformer is a complex single oscillator with 7 audio outputs. Its method of wave shaping differs from other complex oscillators in that it is not based upon classic wave folding such as is common in West Coast synthesis, or filtration such as is common in East Coast synthesis. Rotating the Transform control will vary the Complex output from a simple waveform to a complex, gnarled mass of audio mutations.

- 100% Analogue Circuit
- Over 8 octaves of pitch tracking starting from A-1 (13.75Hz), covering more than the full range of a traditional piano keyboard
- 7 simultaneous waveform outputs.
- Dedicated attenuators/attenu-verters for each CV input
- Exponential and Linear Frequency Modulation inputs.
- Hard and soft sync inputs
- Pulse width control between 0% and 100%.
- Fixed -1 octave 25% duty cycle suboctave pulse output
- Sub Square output switchable between 1 and 2 octaves down
- Complex Source Mute switch allows simultaneous control of volume and timbre up to audio rates via the Transform CV input.
- Lifetime warranty
- Dimensions: 20HP / Max Depth: 1” /25.4 mm
- Current Draw: 90 mA max from the +12v rail, 90 mA max from the -12v rail

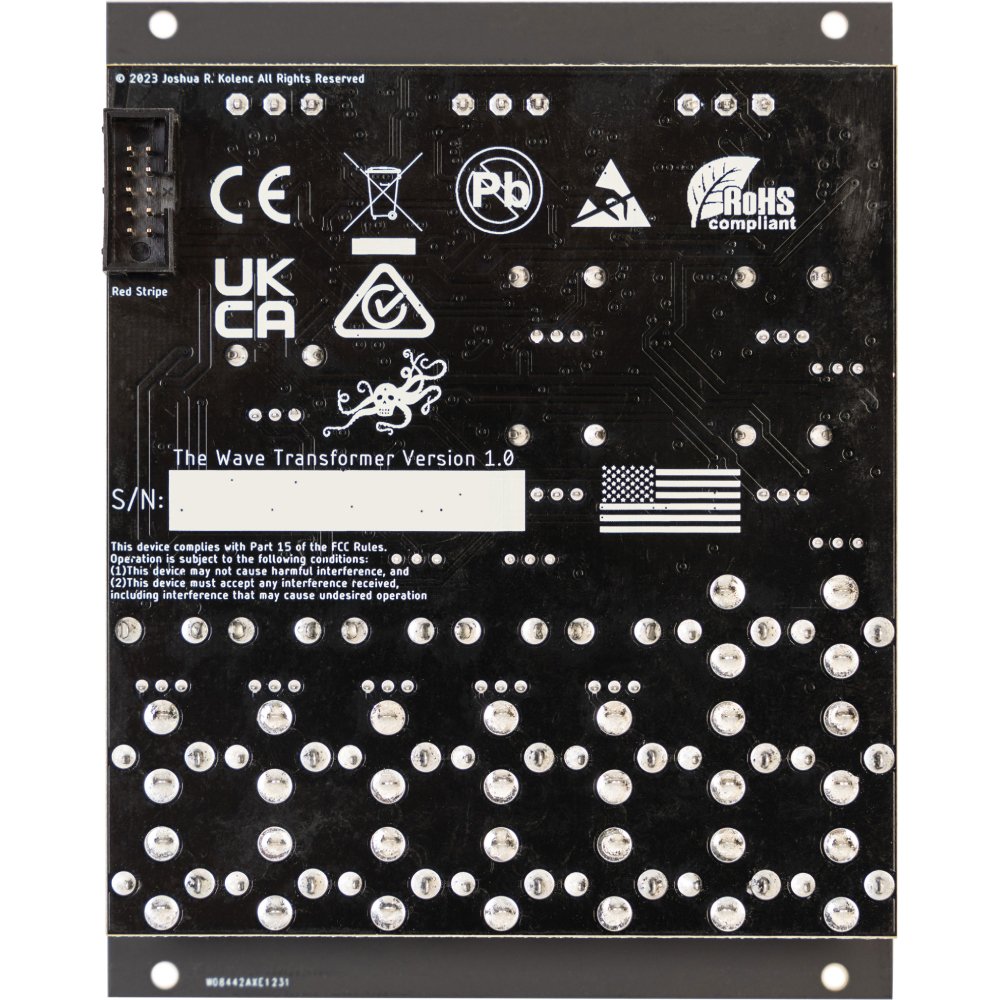

- Standard 10-pin Eurorack power connector with a marking to notate the negative pins
- Reverse Voltage Protection
- Over-current protection on all outputs

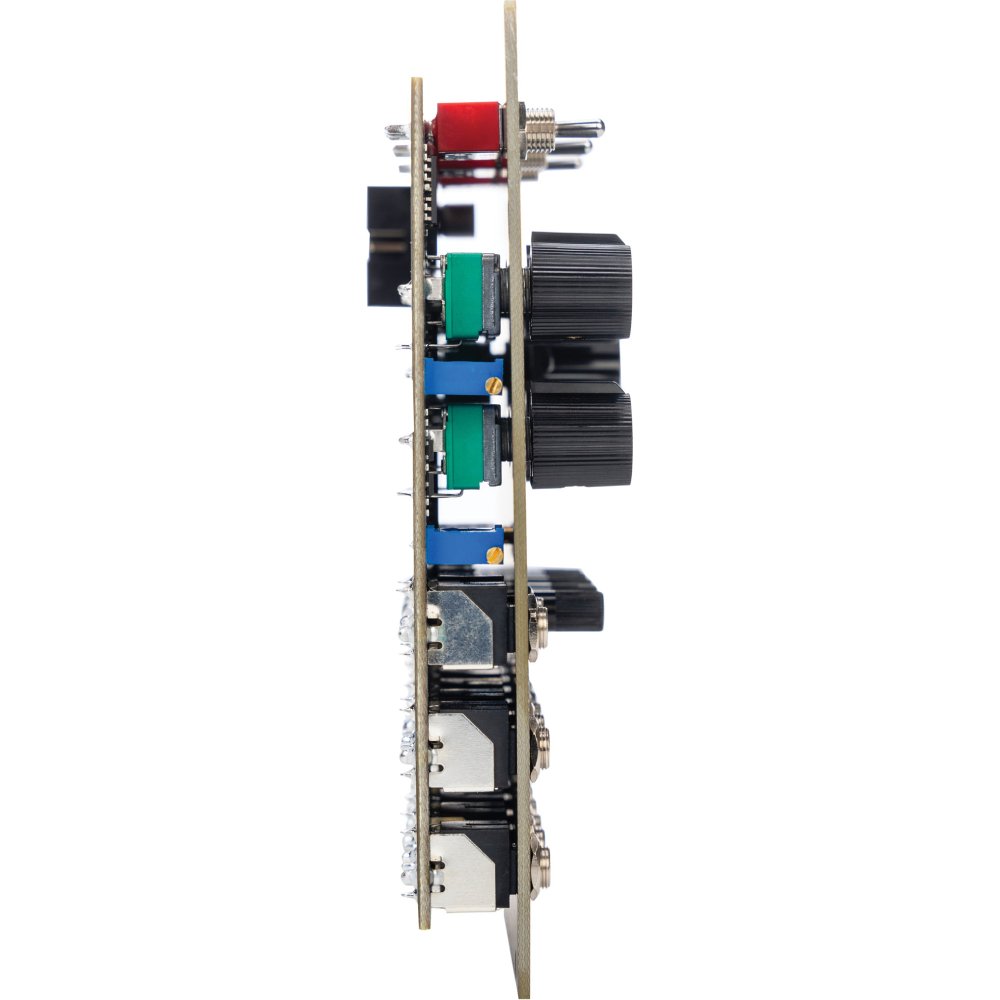

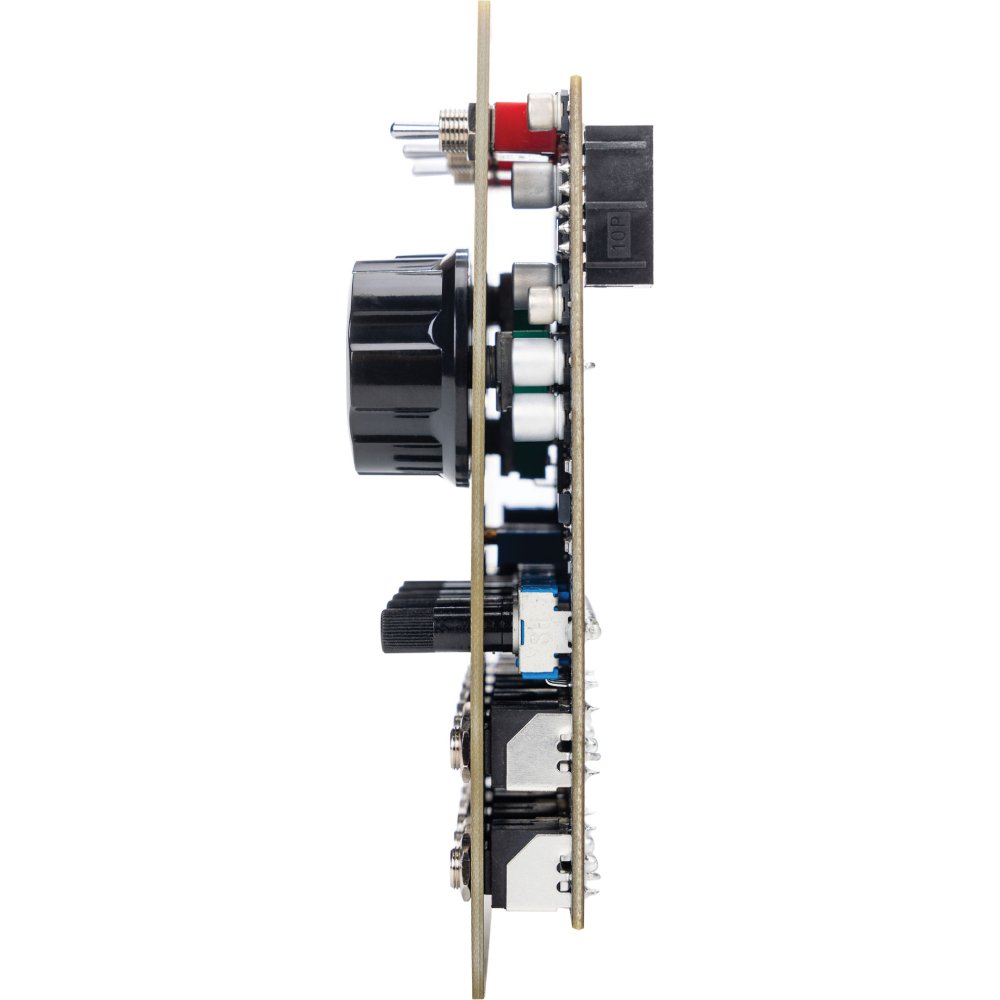

- Skiff friendly – protrudes less than 1” (25.4 mm) behind the panel with the power header installed

  • 100% Analogue
  • 7 audio outputs
  • Complex single oscillator
  • A unique Wave Transformation circuit
  • From a simple waveform to a complex, gnarled mass of audio mutations


Brand EarthQuaker Devices
Weight (kg) 0.204 kg
