MicroPitch is the trick behind countless records that sound bigger than the take: shift one side a few cents sharp, the other a few cents flat, add a handful of milliseconds of delay, and a single guitar becomes a wide, glued stereo image.
MicroPitch Delay is the specialist: fine detuning plus delay for width and thickening, not transposition. Two pitch-shifted delay lines do the work: Pitch A shifts up by as much as 50 cents and Pitch B down by as much as 50 cents, each with its own delay of up to 3 seconds (up to 6 seconds in tap tempo mode).
Why guitarists choose the MicroPitch Delay
- Fine detuning across a stereo pair widens a mono source without the obvious wobble of a chorus.
- A dedicated delay per voice goes from tight doubling to slapback-length spread and long detuned echoes with feedback.
- Positive and Negative Envelope modulation sources make the detune respond to your picking dynamics and can push the shift as far as major and minor thirds.
- FLEX, on a single aux switch, doubles the pitch amounts on demand.
- Catch-up mode smooths changes between presets and parameter settings.
- Five onboard presets and 127 slots over MIDI keep a subtle rhythm thickener and a wide lead sound in the same pedal; the Guitar/Line switch lets it work on vocals, keys and other line sources.
Controls
- Mix / Tone Wet/dry balance; secondary function shapes the tone of the effect.
- Pitch A / Delay A Upward detune (up to +50 cents) and delay time for voice A.
- Pitch B / Delay B Downward detune (up to -50 cents) and delay time for voice B.
- Depth / Mod Modulation depth and modulation source, including the envelope options.
- Rate / Sens / Feedback Modulation rate or envelope sensitivity; secondary function sets delay feedback.
- Pitch Mix / Output Level Balance between the two pitch voices and overall output level.
- Active footswitch Engages the effect; dual-action, latching or momentary.
- Tap footswitch Sets tap tempo in Tap Tempo mode, otherwise scrolls through presets.
- Mono/Stereo and Guitar/Line switches Set how the TRS input is read and match levels to guitar, synths, effects loops or interfaces.

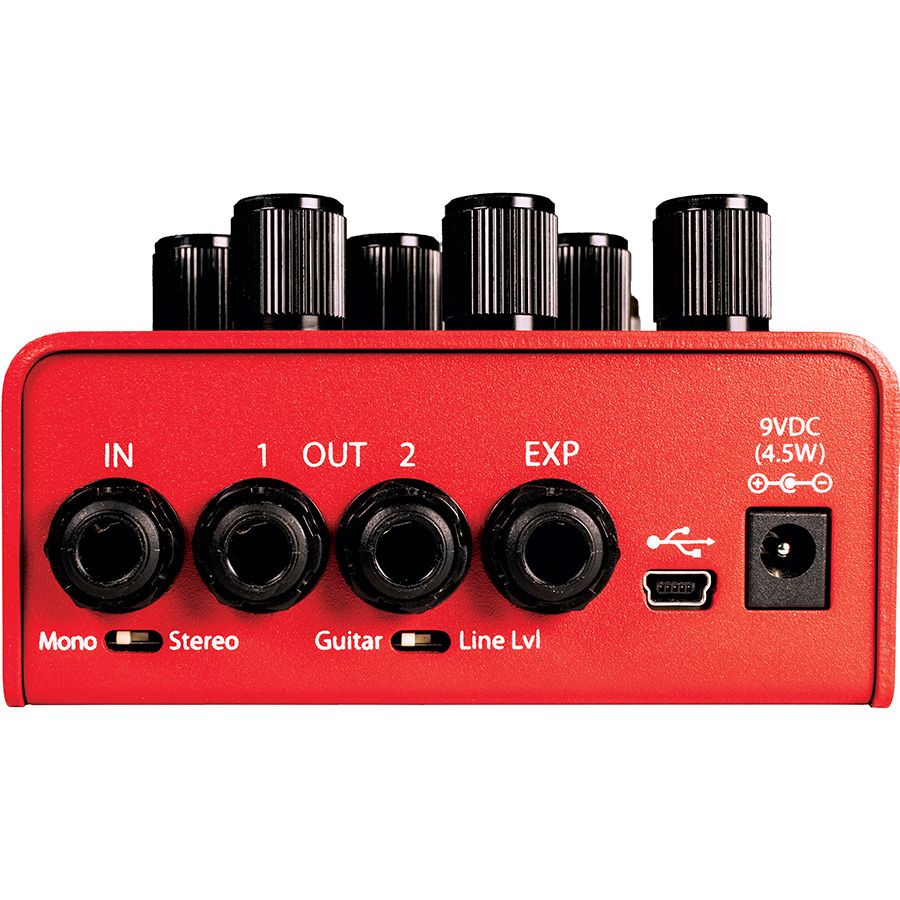

Connections & Power
- Input 1/4" TRS: mono on the tip, stereo on tip and ring.
- Out 1 / Out 2 1/4" TS; Out 1 mono, Out 2 mono or the second stereo channel.
- EXP 1/4" TRS for an expression pedal (any combination of knob parameters), a single aux switch (FLEX), a triple aux switch (preset up/down/load) or MIDI I/O with a MIDI-to-TRS cable or converter.
- Mini USB Software updates and MIDI I/O.
- Bypass Selectable: Buffered, Relay (true bypass), DSP+FX (tails continue) or Kill Dry for parallel loops.
- Power 9V DC center-negative, 300 mA, 5.5 mm / 2.1 mm barrel. Use an isolated output rated 300 mA or more.
In the Box
- MicroPitch Delay pedal
- Universal power supply with US, EU, UK, JP and AU adapters
| Type | Stereo micro pitch shift and delay pedal (digital) |
|---|---|
| Pitch range | Pitch A up to +50 cents, Pitch B down to -50 cents |
| Delay | Up to 3 s per voice (6 s in tap tempo mode) |
| Presets | 5 onboard, 127 via MIDI |
| Bypass | Buffered, Relay, DSP+FX or Kill Dry |
| Audio I/O | 1/4" TRS input (mono or stereo); 2 x 1/4" TS outputs |
| Control I/O | EXP 1/4" TRS (expression, aux switch, MIDI); Mini USB |
| Input impedance | 700 kOhm (mono), 990 kOhm (stereo) |
| Output impedance | 220 Ohm |
| Recommended load | 10 kOhm |
| Maximum input level | +8 dBu (Guitar), +14 dBu (Line) |
| Power | 9V DC center-negative, 5.5 mm / 2.1 mm barrel |
| Current draw | 300 mA |
| Dimensions | 4 x 4.25 x 1.68 in (102 x 108 x 43 mm), W x D x H |
| Weight | 1.06 lb (0.48 kg) |
| Warranty | 1 year |
FAQ
What is micro pitch shifting? Very small pitch changes, a few cents, applied to duplicated copies of your signal. Panned apart and delayed slightly, they read as width and thickness rather than as a pitch effect.
Can MicroPitch do harmonies? Not in the usual sense. Pitch A shifts up by as much as 50 cents and Pitch B down by as much as 50 cents; only the Positive and Negative Envelope modulation can push the shift as far as major and minor thirds.
Does it work on vocals and keys? Yes. Set the rear Guitar/Line switch to Line when feeding it from a preamp, an interface, a synth or an effects loop.
Does MicroPitch have tap tempo? Yes. The Tap footswitch sets the tempo in Tap Tempo mode and otherwise scrolls through presets; in tap tempo mode each delay reaches up to 6 seconds.
Will a daisy chain power it? Not reliably. It draws 300 mA at 9V DC center-negative, so use an isolated output rated 300 mA or more.
How do I get MIDI into it? Over the 1/4" TRS EXP jack with a MIDI-to-TRS cable or converter, or over Mini USB. There is no 5-pin DIN socket on this pedal.
