About This Item
Description
Misha does not ask you which notes to play. It asks which intervals to move, so a sequence becomes a set of steps up and down through a scale, and one change of starting pitch rewrites the whole melody.
Misha is Eventide's 28 HP Eurorack instrument and sequencer. Each key moves up or down the selected scale by a set interval, an approach rooted in twelve-tone composition and designed to reward spontaneity. It has its own stereo audio output from an internal oscillator and connects to the rest of a modular system with CV, gates, clock and MIDI.
Why modular players choose Misha
- Composing by interval instead of by note means a sequence keeps its shape when you move its root or change the scale.
- It is an instrument as well as a sequencer: the internal synth combines sine, square, saw and triangle waveforms and plays through a DC-coupled stereo output.
- 100 factory scales, Western and microtonal, plus two user banks with room for 100 custom scales in Scala format.
- The tone-row sequencer plays Prime (forward), Retrograde (backward) and Inverted versions of a row, with clock division for rhythmic variation.
- Three CV and gate output pairs, plus MIDI, allow polyphonic parts across the rack or on external synths.
- A standard USB computer keyboard (and mouse) connects through the Micro USB port with an adapter, alongside MIDI keyboard control.
- 18 user presets, recallable from the menu or by MIDI Program Change.

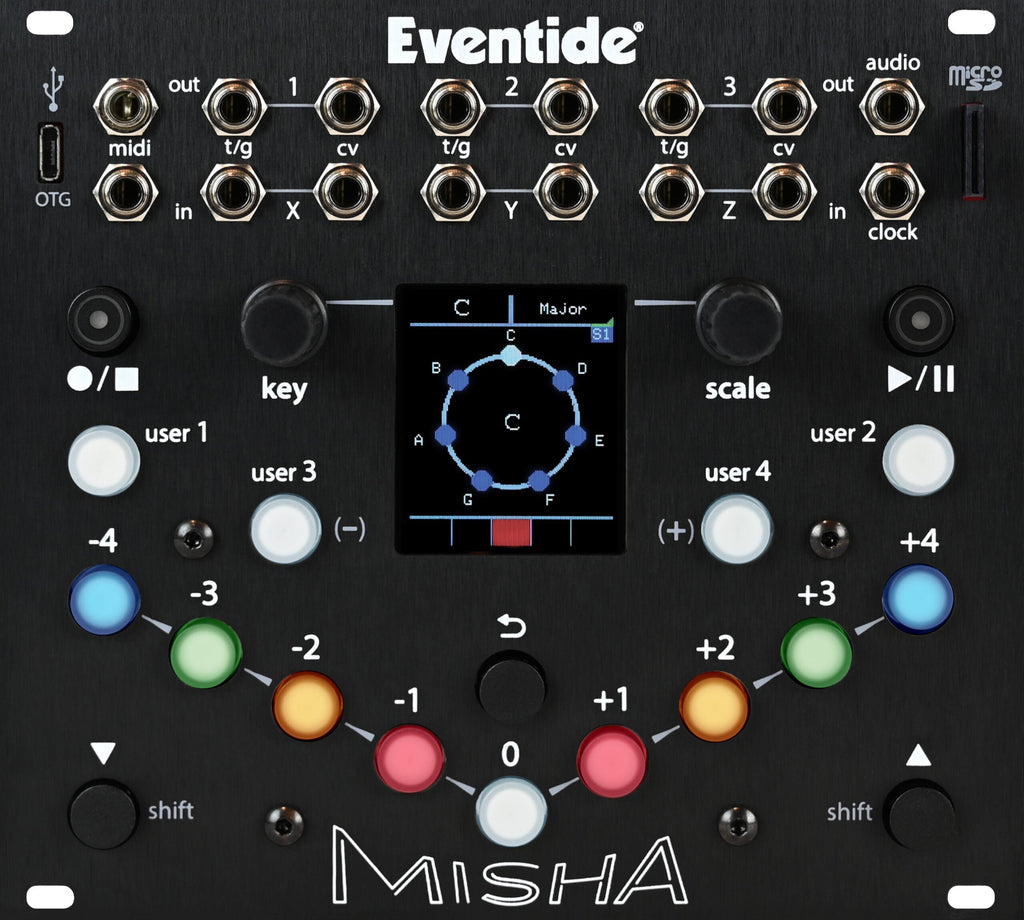

Controls & Connections
- Four user-assignable buttons and a display for scales, sequences and settings.
- CV In X/Y/Z and T/G In X/Y/Z External control and trigger/gate inputs.
- CV Out 1/2/3 and T/G Out 1/2/3 Three independent CV and trigger/gate pairs. CV range configurable: -5 to +5 V, 0 to 5 V or 0 to +10 V.
- Clock input Syncs to external clock at 1, 4 or 24 PPQ; the internal clock can send MIDI clock.
- MIDI In and MIDI Out 3.5 mm TRS (Type A); 5-pin DIN gear connects with a Type A adapter cable.
- Stereo audio output Two channels, DC coupled.
- Micro USB Firmware updates through Eventide Device Manager and USB computer keyboard input.
- microSD slot Saves and loads presets, scales and settings; a card is included.
Power & Rack Compatibility
- Standard Eurorack module, 28 HP wide and about 19 mm (3/4 in) deep, so it fits shallow cases.
- Bus power through a 10-pin (2x5) header on the module; the supplied ribbon cable goes to a 16-pin (2x8) bus header, red stripe to -12V on both ends.
- Current draw: 105 mA on +12V, 5 mA on -12V, 0 mA on +5V.
In the Box
- Misha module
- Quick Reference Guide
- Micro USB cable
- microSD card
- IDC power cable
- Mounting screws
- Eventide sticker
| Type | Interval-based Eurorack instrument and sequencer |
|---|---|
| Format | Eurorack 3U, 28 HP (5.6 in / 142 mm wide) |
| Depth | 0.75 in (19 mm) |
| Power | +12V 105 mA, -12V 5 mA, +5V 0 mA; 10-pin header |
| Audio output | Stereo, 2 channels, DC coupled |
| CV / Gate | 3 x CV in, 3 x T/G in, 3 x CV out, 3 x T/G out; clock in |
| CV range | -5 to +5 V, 0 to 5 V or 0 to +10 V, configurable |
| MIDI | In and Out, 3.5 mm TRS Type A |
| USB | Micro USB (firmware updates, computer keyboard) |
| Storage | microSD (card included) |
| Presets | 18 user presets |
| Scales | 100 factory, up to 100 user (Scala) |
FAQ
What makes Misha different from a normal sequencer? Most sequencers store fixed notes. Misha stores intervals, so a sequence is a set of moves through a scale. Change the starting pitch or the scale and the whole phrase transforms while keeping its shape.
How wide and how deep is it? It is a 28 HP module, 142 mm (5.6 in) wide in a standard 3U rack, and about 19 mm (3/4 in) deep, so it fits shallow cases.
How much current does it draw? 105 mA from the +12V rail, 5 mA from the -12V rail and 0 mA from +5V of the Eurorack bus. It is powered by the rack through the supplied ribbon cable; there is no external adapter.
Does Misha make sound on its own? Yes. Its internal synth combines sine, square, saw and triangle waveforms and plays through a DC-coupled stereo output, so it works as an instrument as well as a sequencer.
Can I connect a MIDI keyboard? Yes, over the 3.5 mm TRS Type A MIDI In; 5-pin DIN gear connects with a Type A adapter cable. A standard USB computer keyboard can also be connected through the Micro USB port with an adapter.
How are firmware updates installed? Through Eventide Device Manager over the Micro USB connection.
