About This Item
Description
ModFactor puts a second LFO on top of the first, so a chorus can breathe, a phaser can drift out of step with itself, and a rotary sound can spin up from slow to fast under your foot instead of sitting at one fixed speed.
ModFactor is the modulation member of Eventide's Factor floor range, with ten effect families and a dedicated SLOW/FAST ramp switch. TriceraChorus is the compact specialist if you specifically want the three-voice tri-chorus and MicroPitch detune sound, and Riptide covers Uni-Vibe territory alongside two drive voices.
Why guitarists choose the ModFactor
- 10 effect families: Chorus, Phaser, Q-Wah, Flanger, ModFilter, Rotary, Tremolo, Vibrato, Undulator and RingMod, which is most of a modulation pedalboard in one enclosure.
- Two LFOs work together, so the movement never settles into the obvious back-and-forth sweep that makes cheap modulation sound static.
- The dedicated SLOW/FAST footswitch ramps the LFO rate in real time, which is the control rotary-speaker and Leslie-style parts actually need.
- LFO rates lock to tap tempo and MIDI clock, so tremolo and phaser movement stays in time with the song.
- 100 presets under metal footswitches, with instant program change and unlimited presets over MIDI.
- True analog bypass, plus mono or stereo operation at guitar or line level, so the pedal works at the front of a board, in an amp loop or in the studio.
Effect Variations
- Phaser: Negative, Positive, BiPhase, Feedback, PhaseX0.
- Chorus: Liquid, Shimmer, Organic, Classic.
- Q-Wah: WahWah, Voc-Wah, Bass Wah, Bass Vocal Wah.
- Flanger: Positive, Negative, Jet, Thru Zero.
- ModFilter: Lowpass, HiPass, BandPass.
- Vibrato: Modern, Vintage, Retro. Rotary: Standard, Giant. Tremolo: Bias, Opto.
- Undulator (from the H8000): Pitch, Feedback. RingMod: Ring (DC), String (AC).
Controls
- 10 real-time knobs for depth, rate, intensity, shape and the parameters of the selected effect; any of them can be driven by MIDI or an expression pedal.
- Encoder for selecting effects and presets.
- Three metal footswitches for bypass, preset selection, tap tempo and the SLOW/FAST ramp.
- Guitar/Line level switching for inputs and outputs.
Connections & Power

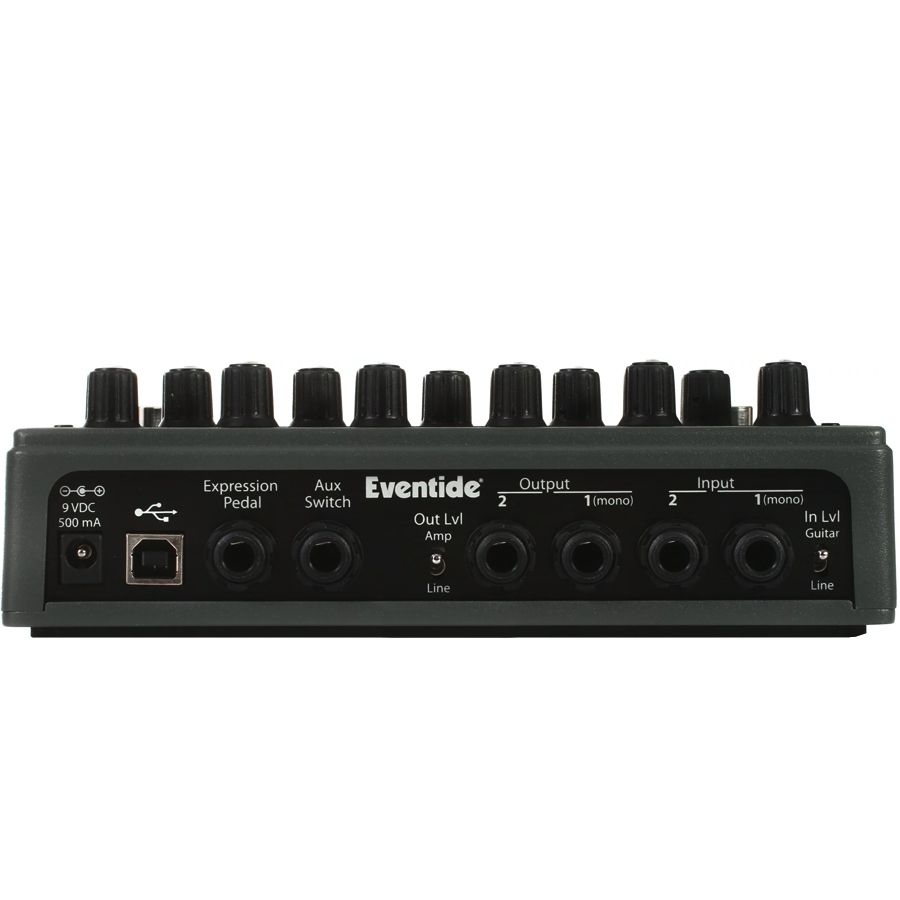

- Two 1/4" inputs and two 1/4" outputs for mono, mono-in/stereo-out or full stereo operation, at guitar or line level.
- Expression pedal jack and Aux Switch jack for an external footswitch.
- 5-pin DIN MIDI In and MIDI Out/Thru, plus USB Type B for MIDI and software updates.
- Power: 9V DC center-positive, 500 mA, 5.5 mm / 2.5 mm barrel. Center positive is the opposite of most BOSS-style pedalboard outputs, so use the included Eventide supply or an output that can be set to center positive and deliver 500 mA. No battery operation.
- Bypass: true analog (relay) bypass, or DSP bypass that lets effect tails ring out, which suits an amp effects loop.
In the Box
- Eventide ModFactor pedal
- US power supply
| Type | Stereo digital modulation pedal |
|---|---|
| Effects | 10 effect families with variations |
| Presets | 100, unlimited via MIDI |
| Tempo | Tap tempo, MIDI clock sync/generate |
| Audio inputs | Input 1 (mono) and Input 2, 1/4" jacks, guitar or line level |
| Audio outputs | Output 1 (mono) and Output 2, 1/4" jacks, guitar or line level |
| Control connections | Expression pedal 1/4" jack, Aux Switch 1/4" jack, USB Type B (USB 2.0), 5-pin DIN MIDI In and MIDI Out/Thru |
| Input impedance | 500 kOhm |
| Output impedance | 470 Ohm |
| Recommended load | 10 kOhm or greater |
| Bypass | True analog (relay) bypass; DSP bypass with effect tails selectable |
| Power | 9V DC center-positive, 500 mA, 5.5 mm / 2.5 mm barrel; US power supply included |
| Battery | No |
| Dimensions (W x D x H) | 7.5 x 4.8 x 2.12 in (190 x 122 x 54 mm) |
| Weight | 2.15 lb (1 kg) |
| Construction | Cast metal enclosure, metal footswitches |
FAQ
What makes ModFactor different from a normal chorus pedal? Two LFOs work together, so the movement keeps evolving instead of repeating a fixed back-and-forth sweep. It also covers ten effect families, from chorus and phaser to rotary, tremolo and ring modulation.
Does the SLOW/FAST switch really ramp, or does it just jump? It ramps. The dedicated SLOW/FAST footswitch glides the LFO rate between the slow and fast settings in real time, which is what rotary-speaker parts need.
Can I sync the modulation to my band's tempo? Yes. LFO rates lock to tap tempo or to MIDI clock received over the 5-pin DIN MIDI In or USB, and the pedal can also generate MIDI clock.
What power supply does it need? 9V DC center-positive, 500 mA, on a 5.5 mm / 2.5 mm barrel. Center positive is the opposite of most BOSS-style pedalboard outputs, so use the included Eventide supply or an output that can be set to center positive. There is no battery operation.
Is it stereo, and can it go in an amp effects loop? Yes. Two 1/4" inputs and two 1/4" outputs run mono, mono-in/stereo-out or full stereo at guitar or line level. In an effects loop, DSP bypass lets the effect tails ring out; true analog (relay) bypass is also available.
What is in the box? The ModFactor pedal and a US power supply.
