About This Item
Description
TriceraChorus splits your signal into three chorus voices, left, center and right, so a single-coil arpeggio spreads across a stereo rig the way an early-eighties studio rack used to make it.
TriceraChorus is Eventide's compact tri-chorus: three independently adjustable voices, Chorus, Vibrato and Chorale modes, MicroPitch detuning and a Swirl footswitch that pushes into flanging, phasing and Uni-Vibe territory. Its sound is inspired by bucket-brigade analog choruses of the 1970s and 1980s and comes from Eventide's TriceraChorus plug-in. If you want chorus, phaser, flanger, tremolo, rotary and more in one floor unit with 100 presets, that is the ModFactor; Riptide pairs a Uni-Vibe with drive rather than a chorus.
Why guitarists choose the TriceraChorus
- Three chorus voices with separate Left, Center and Right depth controls give a genuinely wide stereo image rather than a single voice panned twice.
- Three modes, Chorus, Vibrato and Chorale, selected from the Mix knob, with up to 200 ms of delay available on each.
- The Detune control adds MicroPitch style thickening under the chorus voices, or on its own for a subtle double-track.
- The Swirl footswitch adds flanging, phasing and Uni-Vibe style movement on demand.
- Envelope control of Mix and Rate lets the modulation respond to your playing, for example deepening as notes decay.
- 5 onboard presets at your feet and up to 127 over MIDI, so a clean shimmer and a heavy vibrato can live in the same set.
- Stereo in and out with a Guitar/Line switch keeps it useful in front of an amp, in a stereo rig, on keys or on a studio bus.
Controls

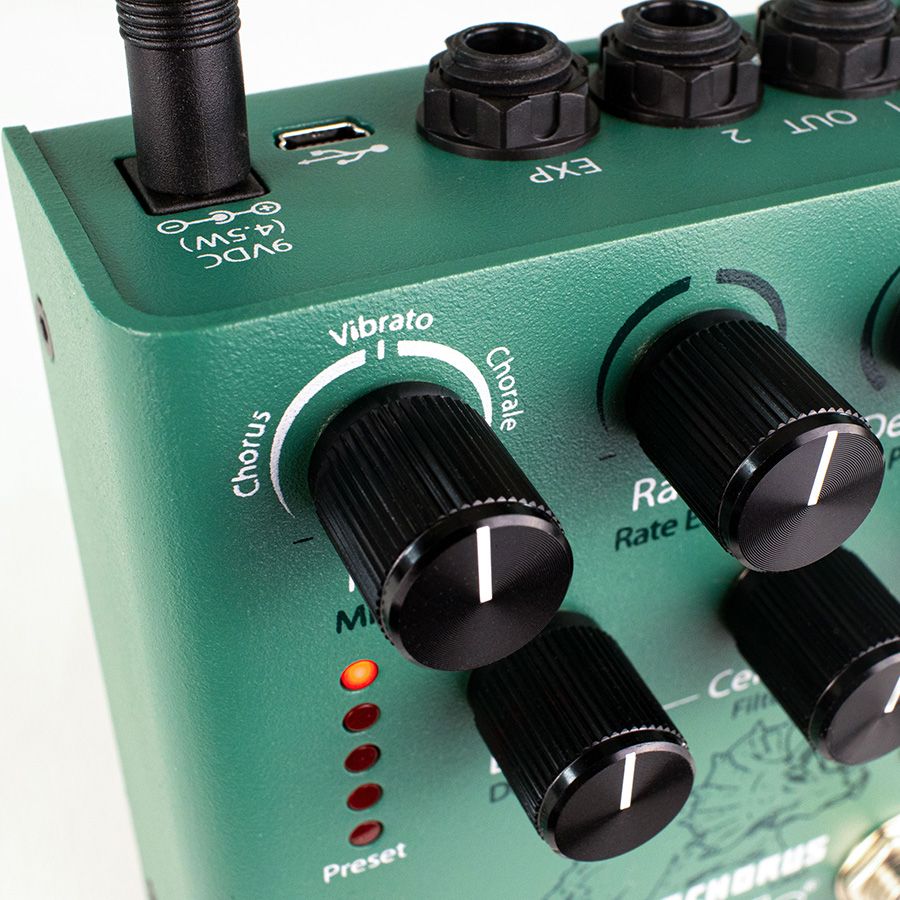

- 6 dual-function knobs: Mix (also selects Chorus, Vibrato or Chorale), Rate, Detune, Left, Center and Right.
- Secondary functions: Mix Envelope, Rate Envelope, Pitch (detune amount), Delay, Filter (low or high cut) and Output Level.
- Active footswitch: dual-action, latching or momentary.
- Swirl footswitch: turns Swirl on or off and can also select presets.
- Five preset LEDs and Catch-up mode for matching knob positions when switching presets.
- Rear Guitar/Line and Mono/Stereo switches.

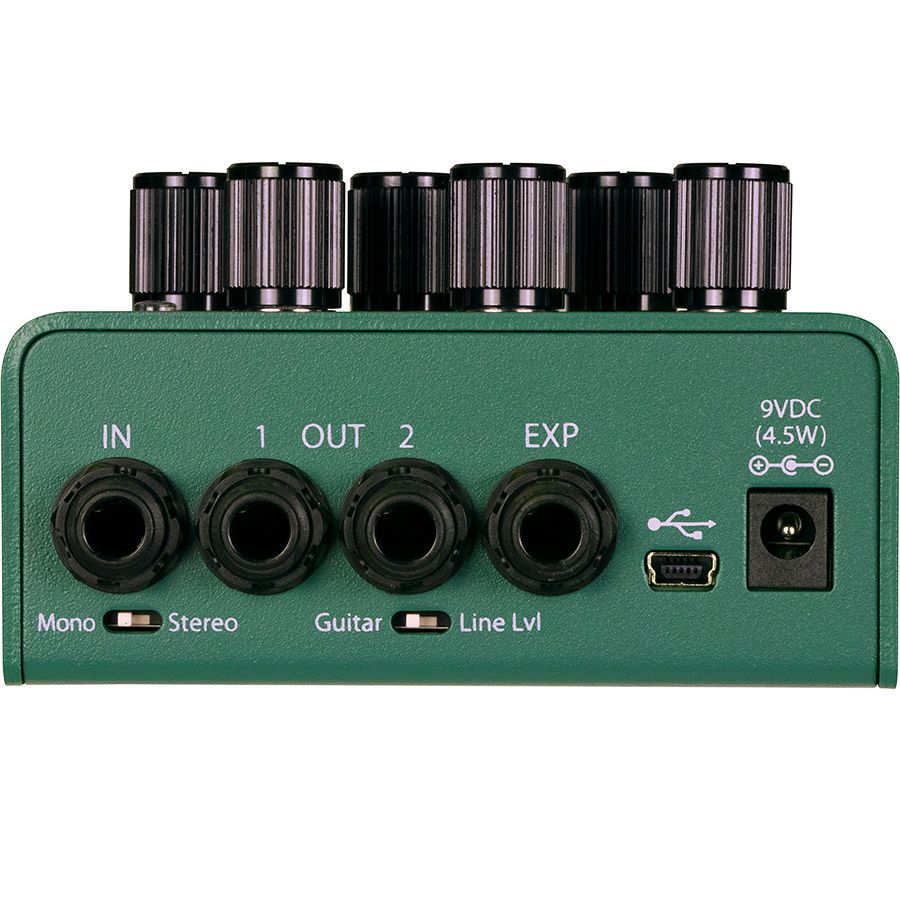

Connections & Power
- 1/4" TRS input reads a mono signal on the tip or a stereo pair on tip and ring, set by the rear Mono/Stereo switch; two 1/4" TS outputs.
- Rear Guitar/Line switch matches the pedal to a guitar, a synth, an effects loop or an audio interface.
- EXP jack (1/4" TRS) takes an expression pedal, a single aux switch for tap tempo, a triple aux switch for preset up/down/load, or MIDI over TRS with a Type A adapter.
- Mini USB for MIDI and software updates; presets and settings are managed in the free Eventide desktop software for Mac and PC.
- Power: 9V DC center-negative, 300 mA, 5.5 mm / 2.1 mm barrel. Use an isolated output rated 300 mA or more. A universal supply with US, EU, UK, JP and AU plugs is included.
- Bypass: Buffered, Relay (true bypass), DSP+FX (tails) or Kill Dry for parallel loops.
In the Box
- Eventide TriceraChorus pedal
- Universal power supply with US, EU, UK, JP and AU plugs
| Type | Stereo digital tri-chorus with detune |
|---|---|
| Modes | Chorus, Vibrato, Chorale; Swirl; Detune |
| Voices | 3 (Left, Center, Right) |
| Footswitches | 2 (Active, Swirl) |
| Presets | 5 onboard, up to 127 via MIDI |
| Tap tempo | Tap Rate via an aux switch on the EXP jack |
| Input | 1/4" TRS: mono on tip, stereo on tip and ring (Mono/Stereo switch) |
| Outputs | Out 1 and Out 2, 1/4" TS |
| EXP jack | 1/4" TRS for expression pedal, aux switch or MIDI I/O |
| USB | Mini USB for software updates and MIDI |
| Input impedance | 700 kOhm mono / 990 kOhm stereo (instrument level) |
| Output impedance | 220 Ohm |
| Recommended load | 10 kOhm |
| Maximum input | +8 dBu (Guitar) / +14 dBu (Line) |
| Bypass | Selectable: Buffered, Relay, DSP+FX, Kill Dry |
| Power | 9V DC center-negative, 300 mA, 5.5 mm / 2.1 mm barrel; universal supply with US, EU, UK, JP and AU plugs included |
| Dimensions (W x D x H) | 4 x 4.25 x 1.68 in (102 x 108 x 43 mm) |
| Weight | 1.06 lb (0.48 kg) |
| Warranty | One year |
FAQ
What is a tri-chorus? Instead of one modulated voice, three chorus voices are placed left, center and right, each with its own control, which gives a much wider stereo image than a single voice panned twice.
Can I use the detune on its own? Yes. The Detune control adds MicroPitch style thickening under the chorus voices or on its own for a subtle double-track.
Does TriceraChorus have tap tempo? Yes, but not from its own footswitches. Connect an aux switch to the EXP jack for Tap Rate, or use a triple aux switch for preset up, down and load.
What does the Swirl footswitch do? It adds flanging, phasing and Uni-Vibe style movement on top of the chorus voices, and it can also select presets.
Will a daisy chain power it? Not reliably. It needs 9V DC center-negative at 300 mA, so give it an isolated output rated 300 mA or more. A universal supply with US, EU, UK, JP and AU plugs is included.
Is it analog? No, it is a digital effect. Its sound is inspired by bucket-brigade analog choruses of the 1970s and 1980s and comes from Eventide's TriceraChorus plug-in. Relay (true) bypass is one of four selectable bypass modes.
