For players who want one wah pedal that can cover Hendrix-style vocal wah, deep psychedelic sweep, and '70s funk quack, the Clyde Deluxe's three switchable voicings plus adjustable input level make it the most flexible version of the Fulltone CLYDE.
The Clyde Deluxe is a 3-voice upgrade over the original single-voice CLYDE Standard, adding the Wacked and Shaft voicings alongside the classic Jimi (CLYDE Standard) setting, plus a 10-step Variable Input Level control and a switchable, fuzz-friendly JFET buffer. Jimi mode reproduces the late-1960s Vox Clyde McCoy wah tone; Wacked is a deeper, more Colorsound-like sweep with heavier bass response; Shaft is voiced for 1970s funk and disco-flavored rhythm work.
Why guitarists choose the Clyde Deluxe
- Three selectable voicing modes: Wacked, Jimi (CLYDE Standard), and Shaft
- 10-step Variable Input Level control to fine-tune the wah response and add overdriven grit when pushed
- Hand-wound '60s-style 500 mH Fulltone inductor with a tuned core, MU-80 (80% nickel alloy) shielded against 60-cycle hum
- Custom-wound Fulltone-1 wah pot, an accurate reproduction of the resistance and taper of the vintage ICAR pot used in select '60s and early-'70s Vox wahs, built for long life
- Switchable, fuzz-friendly JFET buffer with its own Buffer Level control for up to +20 dB of clean boost, so the wah plays well with fuzz and high-gain pedals
- True bypass with a bright, side-viewable, low-current pilot-light status LED
- Welded steel enclosure, hand-built in the USA
Controls and switches
- Treadle with footswitch (effect on/off)

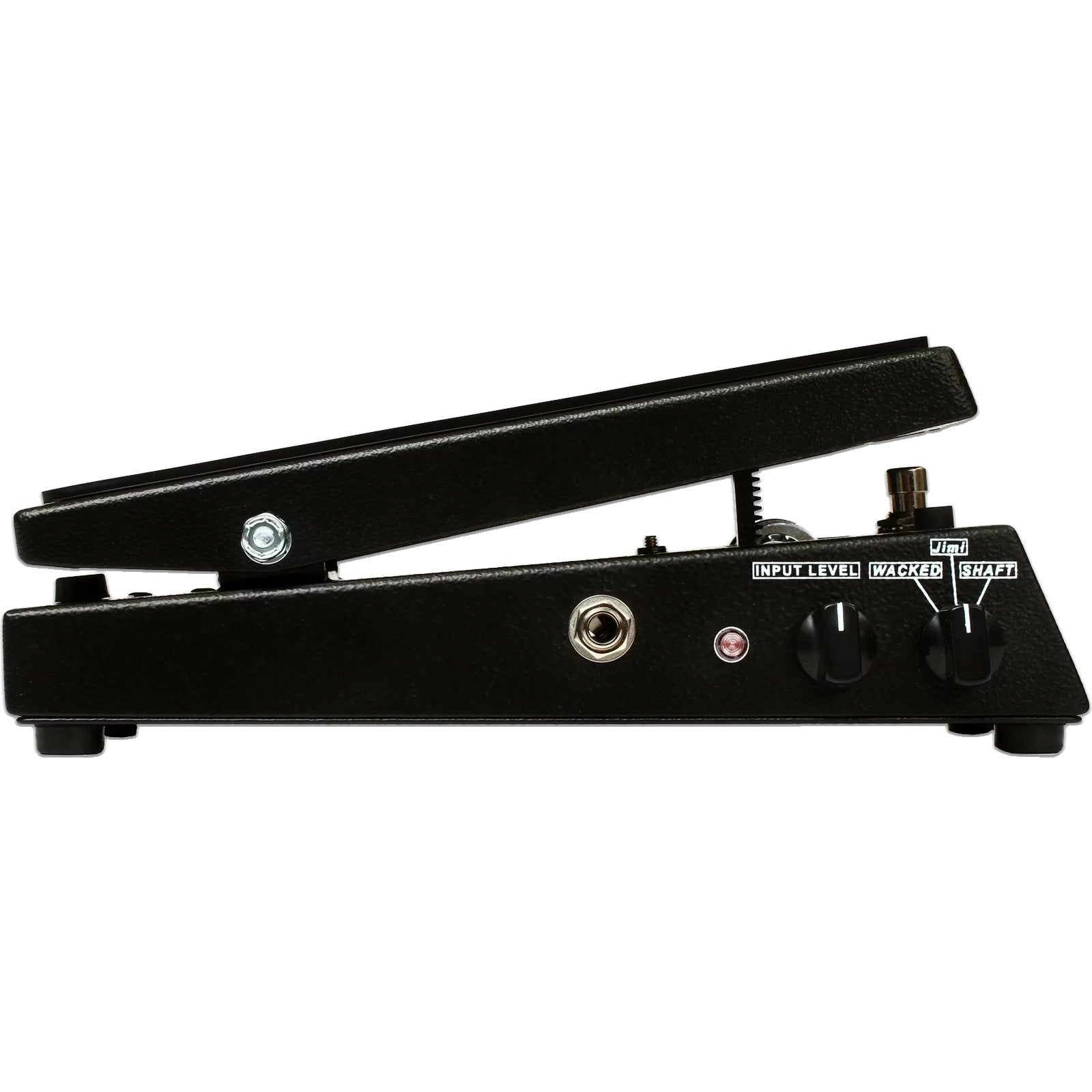

- Input Level control (10-step variable)
- 3-way voicing mode switch (Wacked / Jimi / Shaft)

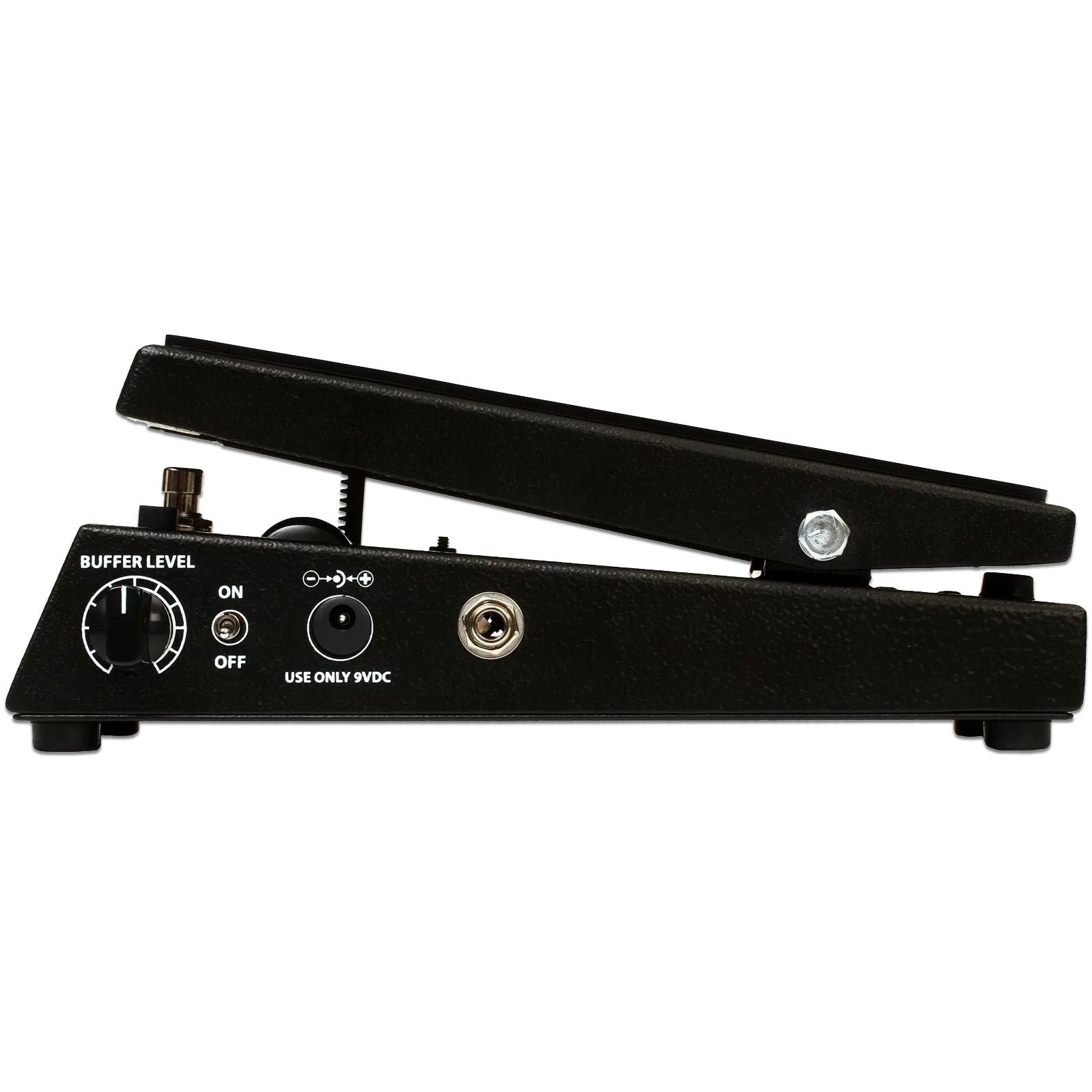

- Buffer on/off switch and Buffer Level knob
- Internal Resonance (Q) trimmer
Connections and power
- 1/4" mono input and output
- Power: 9 V DC center-negative adapter with a 2.1 mm plug (sold separately) or a 9 V battery
Technical specifications
| Brand / model | Fulltone CLYDE Deluxe Wah (CDW) |
|---|---|
| Effect type | Analog wah, inductor-based filter |
| Voicings | 3: Wacked, Jimi (CLYDE Standard), Shaft |
| Controls | Input Level (10 steps), 3-way mode switch, Buffer on/off, Buffer Level, internal Resonance (Q) trimmer |
| Buffer | Switchable JFET buffer, up to +20 dB clean boost |
| Inductor | Hand-wound 500 mH Fulltone inductor, MU-80 shielded, tuned core |
| Pot | Fulltone-1, vintage ICAR taper |
| Bypass | True bypass, side-viewable LED |
| Jacks | 1/4" mono input, 1/4" mono output |
| Power | 9 V DC center-negative, 2.1 mm; or 9 V battery |
| Enclosure | Welded steel |
| Made in | USA |
FAQ
What's the difference between Jimi, Wacked, and Shaft modes? Jimi is the classic Vox Clyde McCoy voicing with a vocal midrange sweep, the sound of late-'60s Hendrix and Cream-era Clapton. Wacked is deeper and more Colorsound-like with heavier bass. Shaft is voiced for '70s funk and disco-style rhythm playing.
How is the Deluxe different from the CLYDE Standard? The Clyde Deluxe keeps everything on the original single-voice CLYDE Standard and adds two extra voicings (Wacked and Shaft), the 10-step Input Level control and the switchable JFET buffer with Buffer Level. Both use the hand-wound Fulltone inductor and true-bypass switching.
What does the switchable JFET buffer do? It is a transparent, fuzz-friendly buffer that keeps the wah from clashing with fuzz and high-gain pedals. Its Buffer Level knob adds up to +20 dB of clean boost, so the wah does not get lost in a busy chain. Switch it off when you do not need it. The pedal itself uses true-bypass switching, with a bright side-viewable LED.
Does the Input Level knob change the wah's character or just volume? It sets how hard the signal drives the wah circuit, in 10 steps. Higher settings give a more aggressive vocal quack and can add overdriven grit; lower settings tame the top end, which helps after a hot boost or overdrive.
Can the Q/resonance be adjusted? Yes. An internal Resonance (Q) trimmer sets how pronounced the wah's peak is. Most players leave it at the factory setting.
What power supply does it need? A 9 V DC center-negative supply with a 2.1 mm plug, or a 9 V battery. Use 9 V only; the adapter is sold separately.
