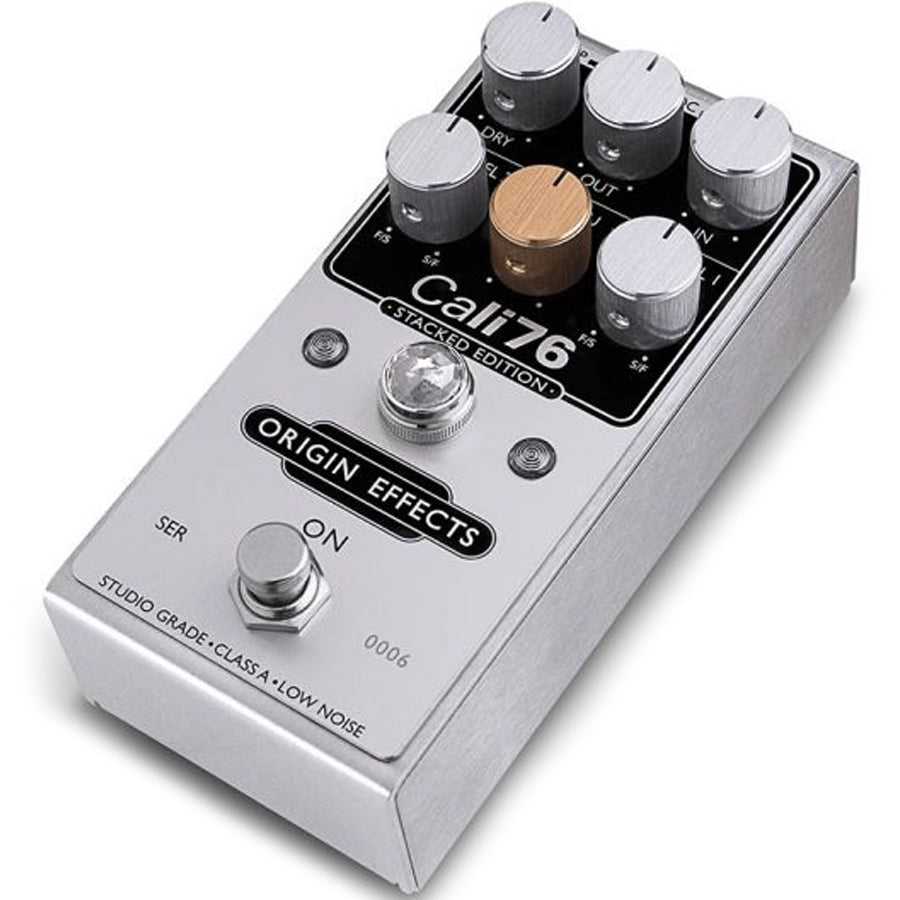

Cali76 Stacked Edition

The Cali76 Stacked Edition delivers both the classic sound of the Cali76 and the addictive dual-stage squeeze of the SlideRig, plus all the good stuff in between.

Like the SlideRIG, it features two of our Cali76 compressor circuits stacked in series—but with the flexibility to control each stage independently, the Stacked Edition opens up a huge range of additional sounds. With heaps of clean gain and compression on tap, the Cali76 Stacked Edition can totally transform the feel of your guitar.

• Two independently adjustable studio-grade FET compressors in a pedal format.
• High-current, low-noise, discrete Class-A circuitry.
• Unique THRU control sets signal fed to second compressor stage.
• Independent Attack/Release for each compression stage.
• Employ parallel compression using the Dry Blend control knob.
• Individual LED gain reduction indicators for each compressor.
• 9 to 18V operation, for increased headroom.
• Tour grade, all metal construction.
• High-impedance buffered bypass with silent switching.
• Designed and assembled by hand in England.

Specifications

Brand	Origin Effects
Weight (kg)	0.62 kg
Width (cm)	6.6
Length (cm)	14.2
Height (cm)	5.9
Battery	No
Expression	No
Jacks position on top	Yes
Switching presets	No
Power Supply	9-18 Volt
Tap tempo	No
Bypass	Buffered bypass
Digital or Analog	Analog
Current Draw, mA	100
Input Impedance, kΩ	1000
Output Impedance, Ω	1000
Best For	Electric Guitars Acoustic Guitars Other Instruments
