About This Item
Description

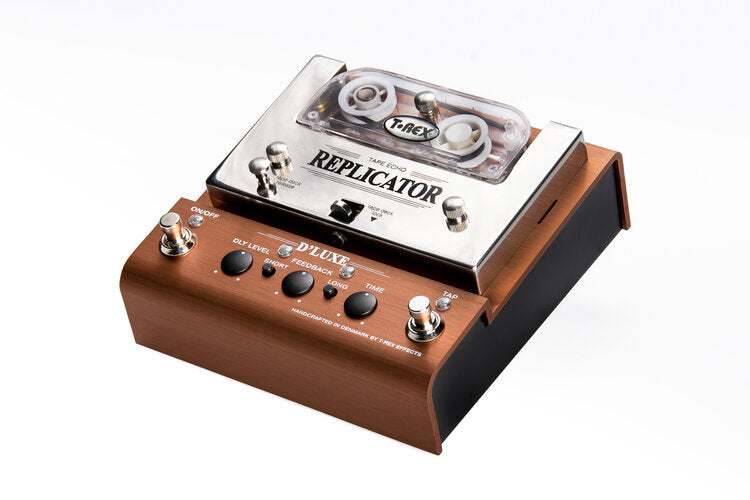

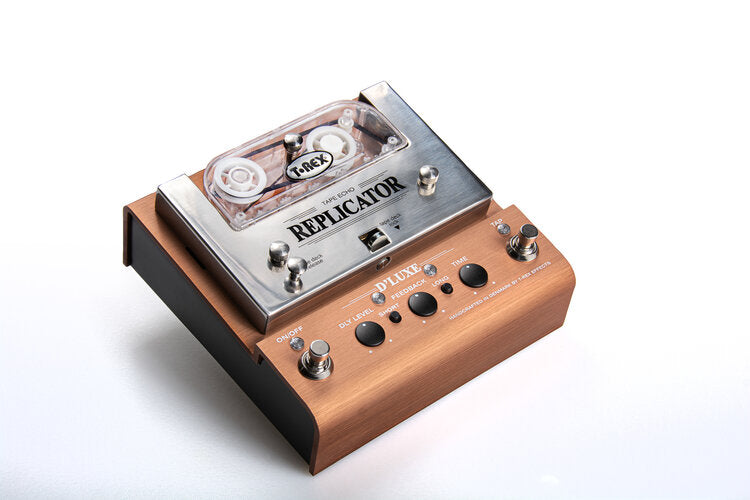

A genuine tape echo — not an emulation, not a digital model. The Replicator D'Luxe runs real tape past one record head and two playback heads for authentic warmth, wow, and flutter that only real tape can produce.
Why guitarists choose this pedal
- Real moving tape — an actual tape cassette passes over recording and playback heads for authentic tape-echo warmth.
- One record head plus two switchable playback heads: Short (108–520 ms) for slapback and Long (215–1000 ms) for longer echoes; combine both for a more complex, room-like echo.
- Tap tempo sets the Long head's time; the Short head runs at half of the Long head's time for rhythmic multi-head effects.
- Noiseless belt drive with a new motor suspension, plus a tape lock/release mechanism that protects the pinch roller and tape and extends their life.
- All-analog signal path from input to output, with true bypass on gold-plated relay switching.
- Handcrafted in Denmark.

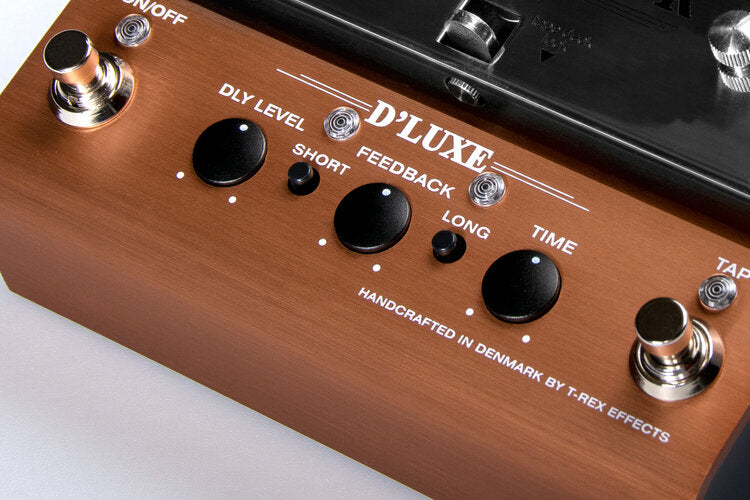

Controls and switches
- Delay Time — sets echo time; interacts with the head selection.
- Feedback — number of repeats.
- Delay Level — mix of the echoed signal.
- Saturation (rear panel) — drives the tape circuit harder for gritty repeats.
- Short head switch — engages the short playback head.
- Long head switch — engages the long playback head.
- Kill Dry switch — mutes the dry signal for wet-only, parallel use.
- On/Off footswitch — engages the effect.
- Tap footswitch — sets the Long head time.

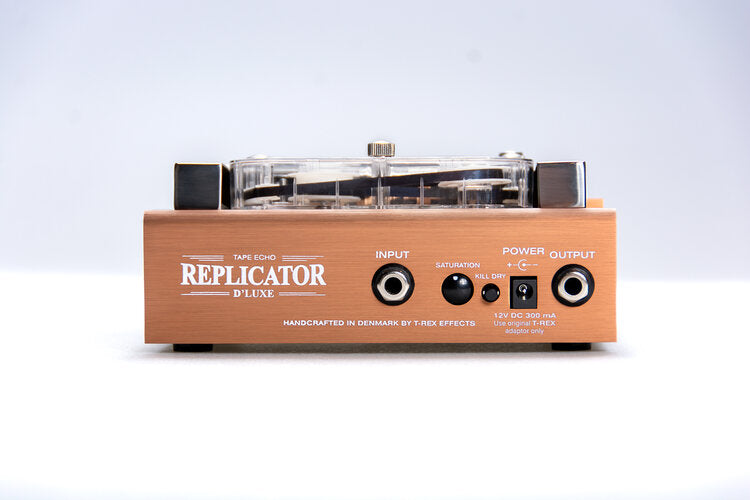

Connections & Power
- 1/4" input, 1/4" output and DC inlet.
- 12V DC center-negative, current draw 300 mA at 12 V DC.
- Universal power supply included, with exchangeable plugs for 90–240 V mains.
- No battery operation — the tape motor requires the external supply.
- Kill Dry lets you run it wet-only in a parallel effects loop.
In the Box
- Replicator D'Luxe Tape Echo
- 12V DC power supply with exchangeable mains plugs

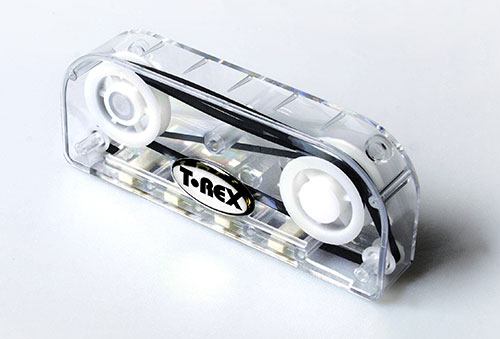

- One extra tape cartridge (2 cassettes in total)
Technical specifications
| Model | T-Rex Replicator D'Luxe Tape Echo |
|---|---|
| Effect type | Genuine tape echo delay (mechanical) |
| Heads | 1 record head, 2 playback heads |
| Delay time | Short head 108–520 ms; Long head 215–1000 ms |
| Signal path | All analog |
| Controls | Delay Time, Feedback, Delay Level, Saturation, Kill Dry, Short, Long, On/Off, Tap Tempo |
| Bypass | True bypass (gold-plated relay) |
| Input impedance | > 500 kΩ (at 1 kHz) |
| Output impedance | < 1 kΩ (at 1 kHz) |
| Maximum input signal | 8.7 Vp-p (12 dBu) |
| Power | 12V DC center-negative, PSU included (90–240 V) |
| Current draw | 300 mA at 12 V DC |
| Jacks | Input, output, DC inlet |
| Tape | C30 1/8" chrome cassette; 2 included |
| Dimensions (W × H × D, incl. knobs) | 3.15 × 6.85 × 6.89 in (80 × 174 × 175 mm) |
| Weight | 3.3 lb (1.50 kg) |
| Country of manufacture | Denmark |
FAQ
Is this a real tape echo? Yes — physical tape runs across a record head and two playback heads, producing genuine analog tape-echo behavior. It is not a digital emulation.
What delay times does it cover? The Short head covers 108–520 ms (slapback), the Long head 215–1000 ms. Engaging both gives a denser, room-like echo.
How does tap tempo work? Tapping sets the Long head's time; the Short head automatically runs at half that time.
Are spare tapes included? Yes — one extra tape cartridge comes in the box, so you get two in total.
Can I use it in a parallel effects loop? Yes — engage Kill Dry to mute the dry path for wet-only use.
Can it run on a battery or a 9 V pedal supply? No — it needs 12 V DC, center-negative, at 300 mA. The included universal supply covers 90–240 V mains.
What is new compared with the original Replicator? A noiseless belt drive with new motor suspension, a tape lock/release mechanism that protects the pinch roller and tape, and a streamlined control layout with tap tempo.
Warranty? T-Rex offers a 2-year warranty on its products.
