Description
Each output of VPS-6 is designed with double isolation, which can supply power to most of the pedals on the market with extremely low noise floor. At the same time, please confirm whether the recommended voltage, polarity and required current of the pedal in use are consistent with the output specifications of VPS-6.

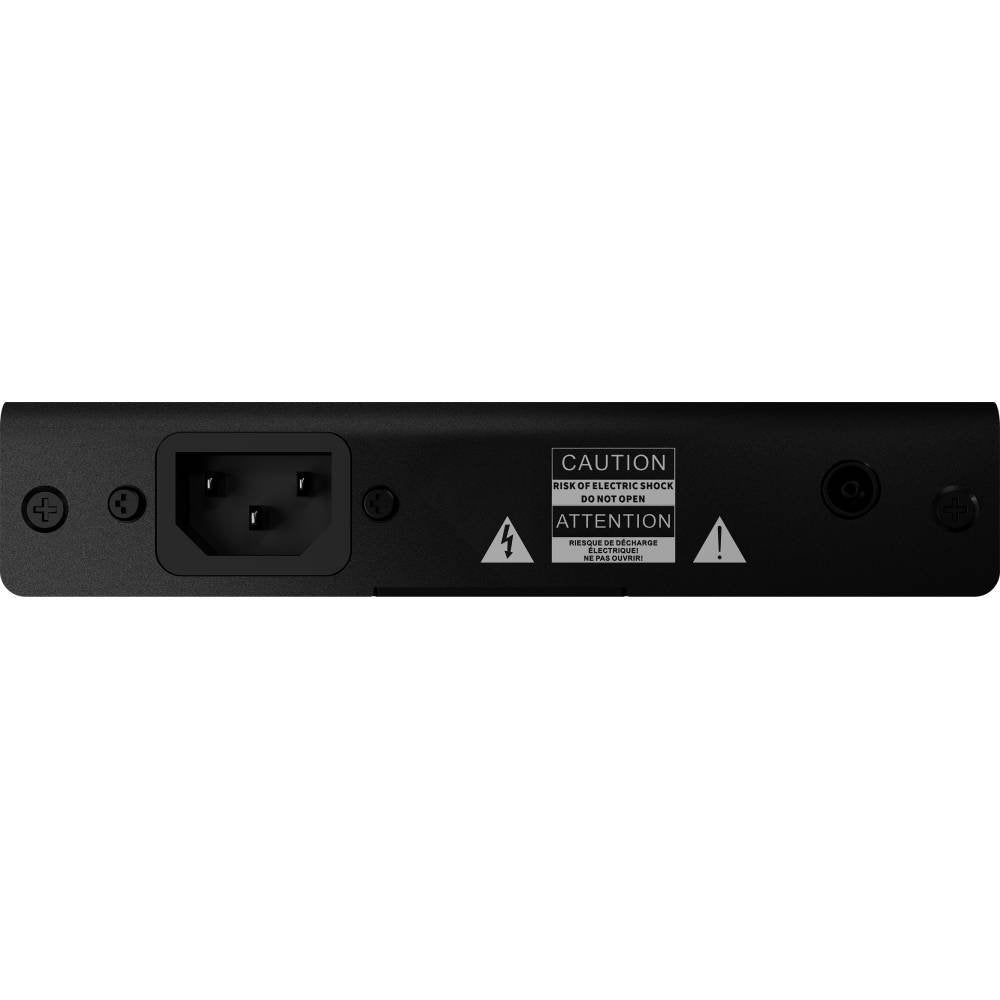

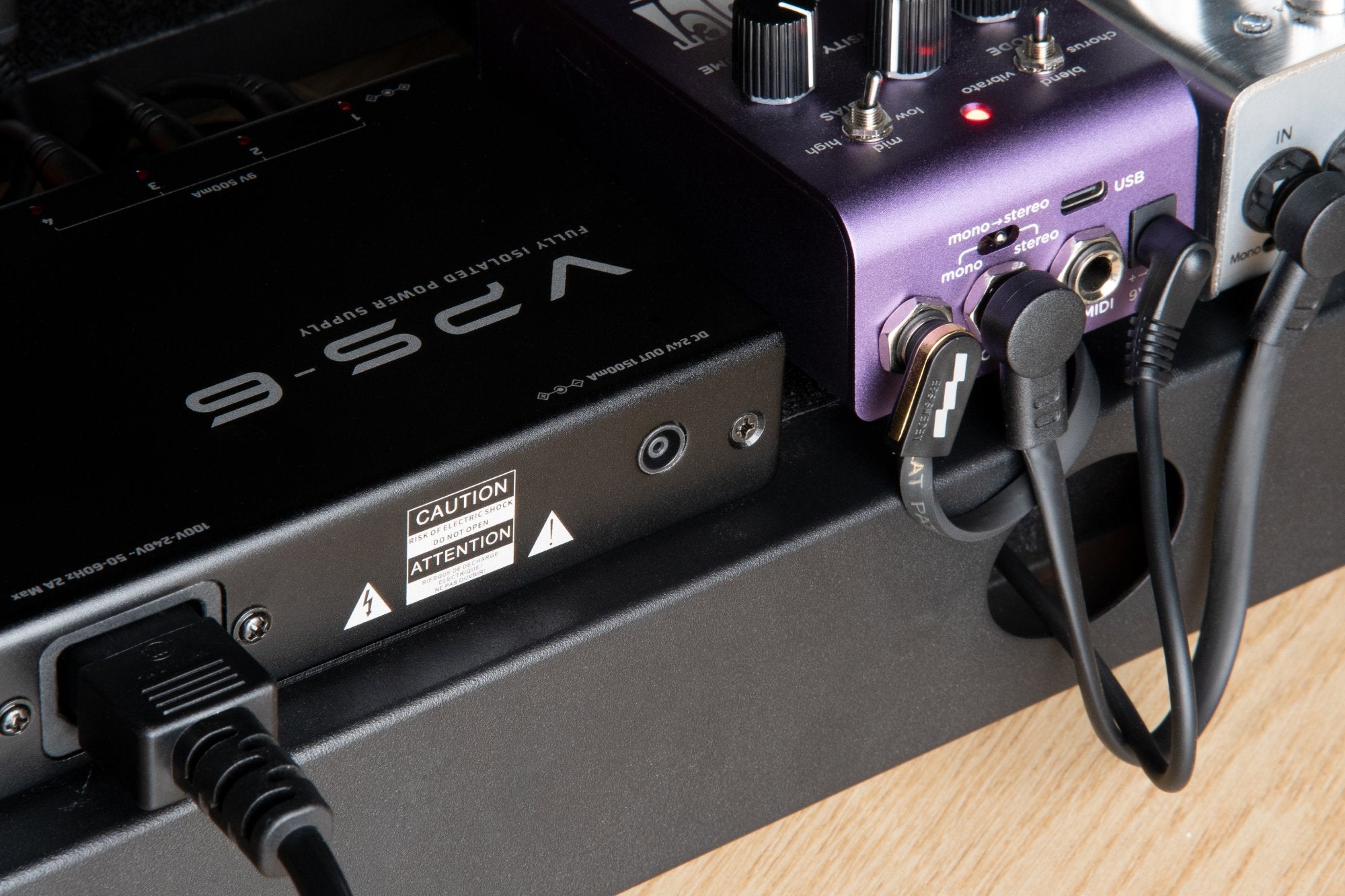

1. IEC CABLE: Connect the included IEC cable to VPS-6 and plug the other end into an AC power outlet.
2. 24V DC OUT: Connect other 24V DC input power supply to get more power outputs, 24V DC (1500mA) center-positive.

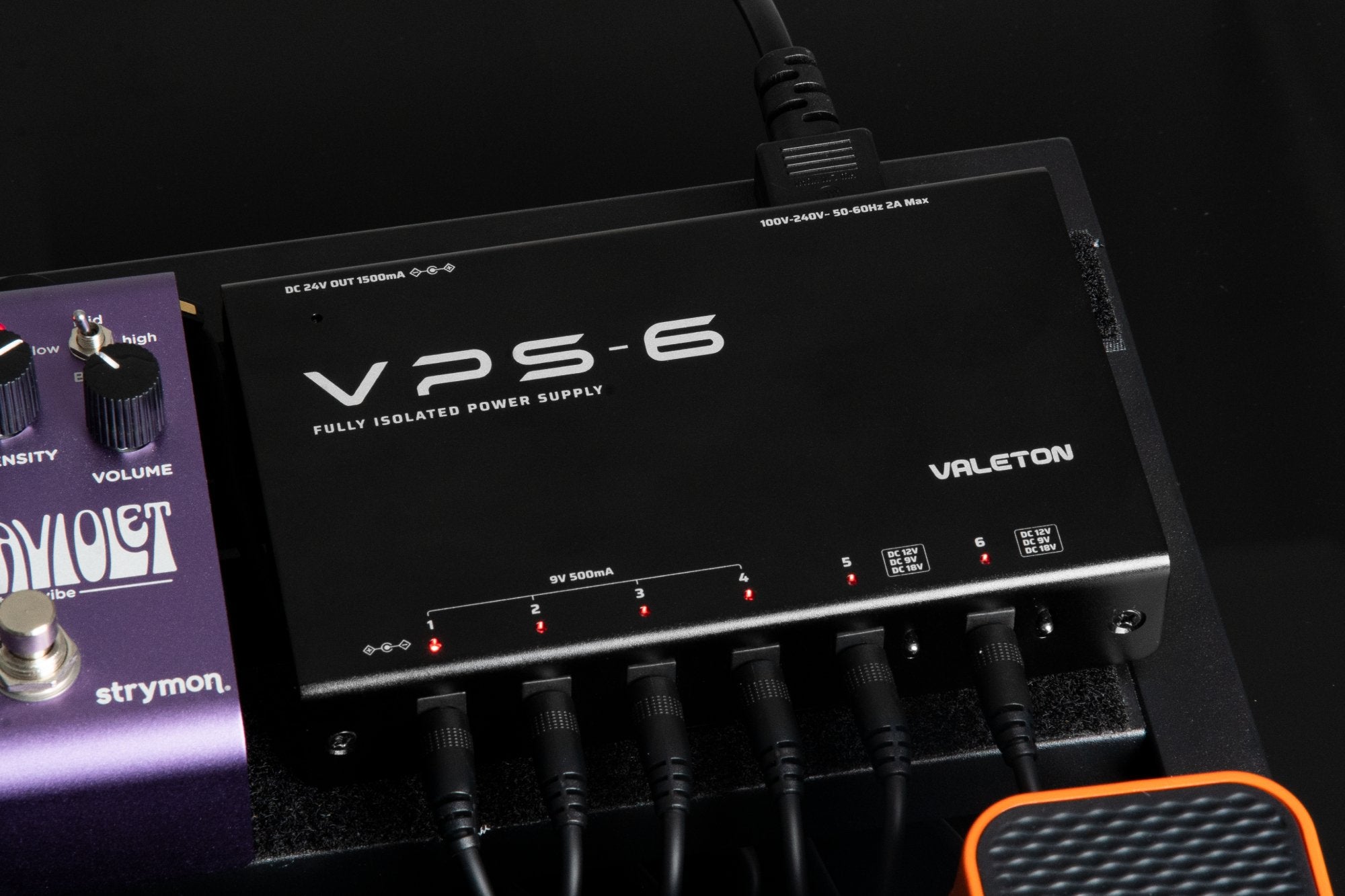

3. 9V DC OUTPUTS: Four outputs provide 9V DC, center negative polarity, each with 500mA of available current.
4. ADJUSTABLE OUTPUTS: Two outputs provide selectable 9V, 12V, or 18V DC with center negative polarity. It provides 500mA of available current at 9V, 375mA at 12V, and 250mA at 18V. Make sure this output is set to 9V before connecting conventional 9V pedals.
5. LED INDICATORS: Each output is equipped with an LED indicator light, LED illuminates red when a pedal cable is plugged in. LED will turn o if cable is unplugged, or the load device is short-circuited. After troubleshooting, the power will return to normal and so will the LED. Power supply will enter hiccup protection status if the current draw on the output exceeds the maximum amount available, the LED will then blink.
Expand your power
You can expand your power supply system through 24V DC output, which is suitable for some power supplies that support 24V DC input.
1. IEC CABLE: Connect the included IEC cable to VPS-6 and plug the other end into an AC power outlet.
2. 24V DC OUT: Connect other 24V DC input power supply to get more power outputs, 24V DC (1500mA) center-positive.
3. 9V DC OUTPUTS: Four outputs provide 9V DC, center negative polarity, each with 500mA of available current.
4. ADJUSTABLE OUTPUTS: Two outputs provide selectable 9V, 12V, or 18V DC with center negative polarity. It provides 500mA of available current at 9V, 375mA at 12V, and 250mA at 18V. Make sure this output is set to 9V before connecting conventional 9V pedals.
5. LED INDICATORS: Each output is equipped with an LED indicator light, LED illuminates red when a pedal cable is plugged in. LED will turn o if cable is unplugged, or the load device is short-circuited. After troubleshooting, the power will return to normal and so will the LED. Power supply will enter hiccup protection status if the current draw on the output exceeds the maximum amount available, the LED will then blink.
Expand your power
You can expand your power supply system through 24V DC output, which is suitable for some power supplies that support 24V DC input.
- 6 high current, fully isolated outputs with center-negative polarity -4 dedicated 9V DC outputs (500mA) -2 adjustable outputs oer 9V (500mA), 12V (375mA), or 18V (250mA) DC options
- Each 9V DC output power supply can supply power for most pedals
- Contains 9 power cables available for output: -6×9V cables, straight to Right-angled 60cm -1×9V cable, straight to Right-angled 30cm -1×9V cable, straight to Right-angled 90cm -1×24V cable, straight to straight-angled 60cm
- Contains an IEC power cable for powering VPS-6 in a specific region
- Contains a 9V battery connection cable and a polarity reversal cable
- DC 24V OUT 1500mA for expanding other power supply products; Energy eicient, compact design
- 6 independent customized transformers to ensure clean and reliable power supply for each channel; Wide-range voltage input, self-adapting to the AC voltage of various countries and regions
Specifications
Brand | Valeton |
---|---|
Weight (kg) | 0.6 kg |
Width (cm) | 15.8 |
Length (cm) | 9.8 |
Height (cm) | 3.2 |
Power Supply | 100-240V AC 50/60Hz |
Best For | Electric Guitars Bass Guitars Acoustic Guitars Other Instruments |
